- Page 1 信仰者 believer 用户手册 V1.2 User Manual V1.2 2017.12...

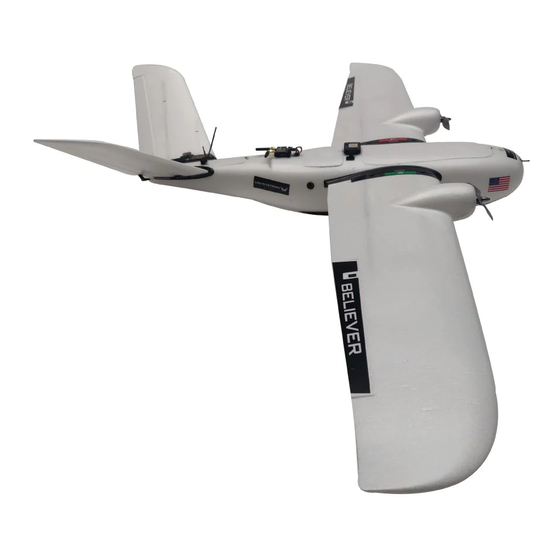

- Page 2 配合飞控系统、遥测系统、劢力系统、影像系统可以获得稳定安全的飞 行性能，可应用于地形测绘、农林牧防护、电力巡线、环保、水利等方 面。 The Believer, a type of professional grade aerial survey aircraft, which has the advantages such as portability, simplicity, stability and durability. Thanks for the Modular design of whole aircraft, it’s very convenient to conduct the assembly during outside aerial photogrammetric field operation. Quick release wings, empennage and mechanical abdominal shock absorption provide excellent using experience for our customers.
- Page 3 产品规格 材质：EPO、EVA、碳纤维、工程塑料等 翼展：1960mm 机身高：180mm 机身长：1070mm 翼面积：51.4dm 推荐飞行速度 20m/s 失速速度 10m/s 最大起飞重量 5.5kg Products specifications: Materials :EPO, EVA, carbon fiber, engineering plastics and etc. Wing span: 1960mm fuselage height: 180mm fuselage length: 1070mm Wing area:51.4dm Suggested flying speed: 20m/s Stalling speed: 10m/s Max.
- Page 4 3 Stiffening the wings and empennages when the takeoff weight was more than 4.5kg. 4. 安装顺序请参考信仰者组装流程图。 4 Please refer to the Believer assembly flow graph when you were confused by the Installing sequence. 飞行注意 Flying Attentions 1. 请避免在 10m/s 以下的速度飞行转弯，以免飞机失速。...
- Page 5 4 .务必在安全起飞重量下飞行，切勿在机场净空区范围飞行。 4 Takeoff under the safety weight and never flying in the area of airfield clearance zone. 5.切勿贴近或接触旋转中的电机或螺旋桨， 避免被旋转中的螺旋桨割伤。 5 Don’t get too close to the rotating motor or propeller, avoid to the possible cuts. 6.请按标识重心位置配重（位于机翼翼根塑料件下突起处） 6 Conduct the counterweight at the marked center of gravity position. (At the protrusion which was under the plastic parts of wings root)
- Page 6 盒内物品清单 Contents in the box EPO 部件 EPO Parts 1 左右机翼 1 left & right wing 2 左右尾翼 2 left & right empennage 3 左右机身 2 left & right fuselage 4 机翼盖板 4 Wings covering plate 5 机舱盖 5 Cabin cover 6 伞舱盖...
- Page 7 碳管部件 Carbon tube parts 1 机身支撑碳管 2 机翼对插碳管 1 Fuselage supporting carbon tube 2 Wings inserting carbon tube 14*12*206mm 12*10*700mm 12*10*206mm 10*8*600mm 塑料件 Plastic parts 1 机翼连接件*2 2 尾翼连接件*2 1 Wings connecting parts*2 2 Empennages connecting parts*2 3 舵机固定件*2 4 舵角*4 3 Servo fixing parts*2 4 Servo angle*4 舵机安装座...
- Page 8 5 电池固定板*1 6 天线固定板*2 5 Battery fixing board*1 6 Antenna fixing board*2 7 舱盖固定板*1 8 电调盖板*2 7 Cabin cover fixing board*1 8 Electric regulating cover*2 9 螺丝柱*12 10 舱盖锁钉*3 9 Stud*12 10 Cabin cover locking nail*3 11 卡盘*2 12 锁钩*8 11 Chuck*2 12 Latching hook...
- Page 9 木板部件 Wooden parts 1 机身加强层板*2 2 机尾加强层板 1 Fuselage reinforcing plate*2 2 Tail reinforcing plate 3 飞控放置板*1 4 伞舱舵机座*1 3 Autopilot locating board*1 parachute servo*1 4 Basement of 5 伞舱盖木板*1 6 伞舱盖加强板*1 parachute hatch parachute hatch cover *1 5 Wooden plate of 6 Stiffer of cover*1...
- Page 10 7 电机安装座 7 Motor installing base EVA 部件 （电池区缓冲垫、飞控区缓冲垫） EVA parts(Cushion at battery area, cushion at flight control area)
- Page 11 其他配件 Other fittings 序号 名称及型号 数量 备注 Name &Model Notes 大电流连接器 2 套 Large electronic current connector 2 groups 尾翼舵机延长线 30cm 2 根 Empennage servo extending wire 2 sets 舵机单端公头延长线 30cm 2 根 机翼部分 Servo single-head male connector 2 sets Wing section extending wire 30cm 机身油门舵机单端母头延长线...
- Page 12 球头 Ball head 8 个 球头连杆 Ball link rod 8PCS 连杆 Link rod 4 根 球头连杆 Ball link rod 4 sets 圆头螺钉 M2X10 8 颗 球头连杆 Ball link rod Button head screw M2X10 8PCS 防松螺母 M2 8 颗 球头连杆 Ball link rod Block nut M2 8 PCS 塑料锁扣...
- Page 13 辅助安装工具和材料（自备） Auxiliary installation tools and materials (Self-contained) 工具 Tools 用途 Usage 3.0mm 十字螺丝刀 安装螺丝 3.0 Philips screwdriver Installing the screws 电烙铁、焊锡丝 焊接电源、舵机线 Electric iron, solder wire Welding the power line and servo line 打火机 Lighter 固定热缩管 Fixed heat shrink tube 小刀...
- Page 14 测试配置与性能 Test configuration & performance 4S 测试动力配置 6S 测试动力配置 4S Test power configuration 6S Test power configuration 种类 型号 数量 型号 数量 Types Model Model 电机 朗宇 Sunny sky 2814 2 个 2 个 MFE2815KV550 Motor KV900 2 sets 电调 好赢乐天...
- Page 16 扫描二维码了解更多 Scan the qr code to learn more 淘宝店铺 QQ 群 Taobao store QQ group 网址（URL） ：www.makeflyeasy.com 地址（SITE） ：中国绵阳涪城区西南科大国家大学科技园 SWUST,Fucheng District,Mianyang City,Sichuan,CHINA Province, China National University Science Park...
