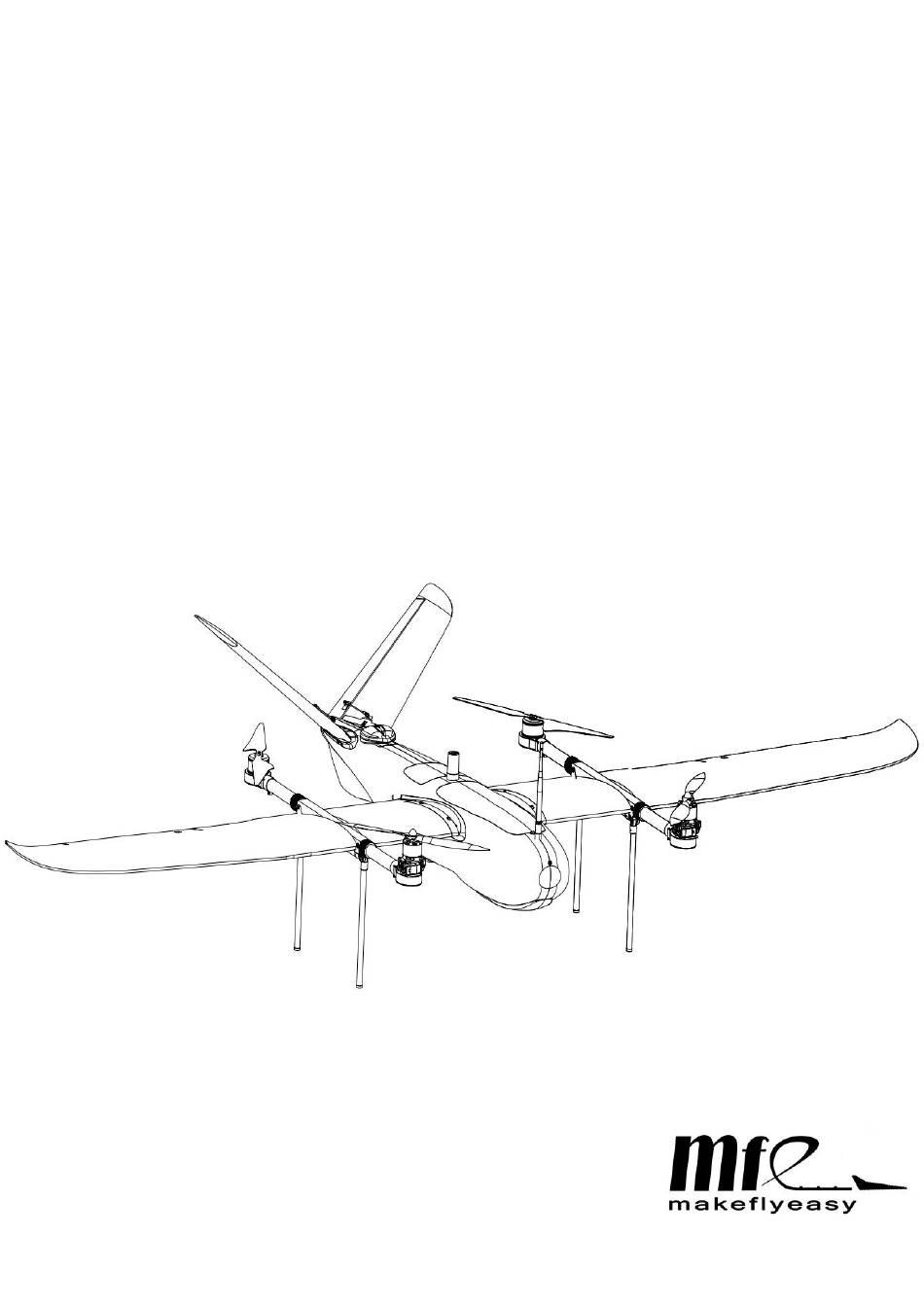

- Page 1 自由者 2300 freeman2300 用户手册 V1.0 User ManualV1.0 2019.05...
- Page 2 Freeman 2300 is a fixed-wing design aircraft which is tilting type and vertical take-off and landing. It is characterized by many advantages such as portability, simplicity, stability and durability. Freeman2300 is an oblique photograph aircraft, which market positioning is high cost perform and entry-level.
- Page 3 could realized a wide-ranging application such as geography surveys, farmland, forestry land and grassland protection, power line inspection, environment protection, water conservancy and etc. 产品规格 材质：EPO、EVA、碳纤维、工程塑料等 翼展：2300mm 机身高：180mm 机身长：1070mm 翼面积：62dm 推荐飞行速度：16m/s 失速速度：10m/s 最大有效载荷：900g 载荷舱尺寸:120×150×120mm 最大航程：60km(900g 负载) 最大起飞重量：8kg 实用升限：4000m 抗风能力：5 级 起降方式：垂直起降...
- Page 4 产品使用注意事项 安装注意 1. 在焊接大电流连接器时，一定要注意焊接线序要相互对应，以免烧毁 电调、舵机。 1. Pay attention to the welding wires sequence which should be corresponding to each other during the welding of large current connector. Or maybe the electric regulator and servo suffered burning-out. 2. 副翼和尾翼推荐使用银燕 ES3054 数字舵机，或者其他相同尺寸的舵 机及圆盘舵角，便于舵机安装，和尾翼快拆装置的安装。...
- Page 5 自由者供电方案图 Freeman power supply conceptual drawing 前倾电机*2 倾转舵机*2 Titling motor*2 Titling servo*2 22222222 副翼舵机*2 后电机*2 Aileron servo*2 Rear motor*2 22222222 尾翼舵机*2 电池 6S@22000mah Bec5V10A Empennage servo*2 Battery 6S@22000mah 数传供电 Bec5V3A Data transfer power supply 飞控供电 Bec5V3A Control flight power supply...
- Page 6 飞行注意 Flying Attentions 请避免在 12m/s 以下的速度飞行转弯，以免飞机失速。 1. Don’t cornering when the aircraft flying speed was less than 12m/s, or the aircraft maybe stalling. 2. 飞行前请务必检查电机、螺旋桨安装正确稳固，电调信号线和电源线 插头连接紧固可靠。 2. Ensure the motor and propeller were installed correctly and toughly before flying, inspecting the electronic regulating signal wires and power lines plug, ensure they were connected toughly.
- Page 7 盒内物品清单 Contents in the box EPO 部件 EPO Parts 1 左右机翼 1 left & right wing 2 左右尾翼 2 left & right empennage 3 左右机身 2 left & right fuselage 5 机舱盖 5 Cabin cover Parachute cabin cover 6 伞舱盖 6 7 腹鳍...
- Page 8 碳管部件 Carbon tube parts 1 机身支撑碳管 2 折叠起落架 1 Fuselage supporting carbon tube 2 Foldable landing gear 14*12*206mm 12*10*206mm 金属及碳片部件 1 电机座*4 2 电机盖片 1 Motor frame 2.Motor cover plate 3 金属锁钩*8 4. 负载挂架 3 Mental latching hook*8 4 Load mounting...
- Page 9 塑料件 Plastic parts 1 机翼连接件*2 2 尾翼连接件*2 1 Wings connecting parts*2 2 Empennages connecting parts*2 3 舵机固定件*2 4 舵角*4 3 Servo fixing parts*2 4 Helm angle *4 舵机安装座 servo installing base 舵机压片 servo presser 舵机盖板 servor covering plate 5 电池固定板*1 6 天线固定板*2 5 Battery fixing board*1 6 Antenna fixing board*2...
- Page 10 7 舱盖固定板*1 8 螺丝柱*12 7 Cabin cover fixing board*1 8 Stud*12 9 舱盖锁钉*4 10 卡盘*2 9 Cabin cover locking nail*4 10 Chuck*2 木板部件 Wooden parts 1 机身加强层板*2 2 机尾加强层板 1 Fuselage reinforcing plate*2 2 Tail reinforcing plate...
- Page 11 3 飞控放置板*1 4 伞舱舵机座*1 3 Autopilot locating board*1 parachute servo*1 4 Basement of 5 伞舱盖木板*1 6 伞舱盖加强板*1 parachute hatch parachute hatch cover *1 5 Wooden plate of 6 Stiffer of cover*1 EVA 部件（电池区缓冲垫、飞控区缓冲垫） EVA parts (Cushion at battery area, cushion at flight control area) 1 电池区缓冲垫...
- Page 12 其他配件 Other fittings 序号 名称及型号 数量 备注 Name &Model Notes 大电流连接器 2 套 Large electronic current connector 2 groups 尾翼舵机延长线 30cm 2 根 Empennage servo extending wire 30cm 2 sets 机身信号三端母头延长线 35cm 2 根 机身部分 Fuselage signal extending wire with 2 sets fuselage section three-terminal 35cm...
- Page 13 球头 Ball head 8 个 球头连杆 Ball link rod 8PCS 连杆 Link rod 4 根 球头连杆 Ball link rod 4 sets 圆头螺钉 M2X10 8 颗 球头连杆 Ball link rod Button head screw M2X10 8PCS 防松螺母 M2 8 颗 球头连杆 Ball link rod Block nut M2 8 PCS 塑料锁扣...
- Page 14 辅助安装工具和材料（自备） Auxiliary installation tools and materials (Self-contained) 工具 Tools 用途 Usage 3.0mm 十字螺丝刀 安装螺丝 3.0 Philips screwdriver Installing the screws 内六角螺丝刀 安装电机座 Allen driver nstalling the motor frame 电烙铁、焊锡丝 焊接电源、舵机线 Electric iron, solder wire Welding the power line and servo line 打火机...
- Page 15 Aileron/Empennage EMAX ES3054 4PCS servo DS3225 倾转舵机 2 个 Tilting servo 2PCS 前电机桨 APC1510 正反桨 1 对 Front motor rotor APC1510 positive and negative rotor 1pair 后电机桨 1755 碳纤维正反桨 1 对 Rear motor rotor 1755 carbon fiber rotor of positive and negative 1pair 5V@10A 舵机...
- Page 16 扫描二维码了解更多 Scan the qr code to learn more QQ 群 淘宝店铺 QQ group Taobao store 网址（URL）：www.makeflyeasy.com 地址（SITE）：中国绵阳涪城区西南科大国家大学科技园 SWUST,FuchengDistrict,MianyangCity,Sichuan,CHINA Province, China National University Science Park...
