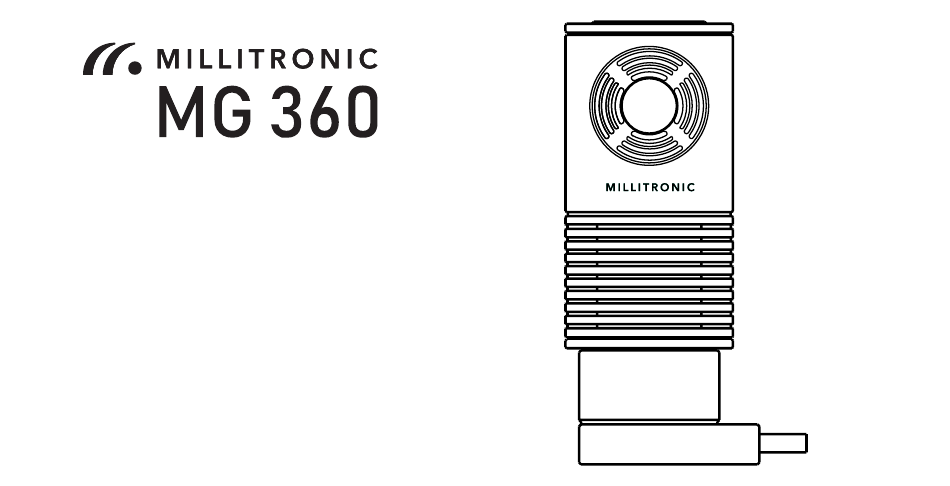

- Page 1 WiGig USB Adapter Driver Installation & User Manual Supervised By MILLITRONIC Co., LTD September, 2018 7AD000000001(A)
- Page 2 MG360 is the first portable WiGig USB3.0 network adapter in the world, which is compatible with IEEE 802.11ad spec. Trademarks ™ MILLITRONIC CO., LTD Logo are owned by MILLITRONIC CO., LTD Any non MILLTRONIC trademarks are used for reference purposes only.
-
Page 3: Table Of Contents
Contents Overview Appendix : Light Signals Product Description ..........02 In USB 3.0 Port ............. 11 Product Features ........... 02 In USB 2.0 Port ............. 11 Adapter Specification ..........03 Appendix 2 : Chapter 1 Driver Installation Frequently Asked Questions .... -
Page 4: Product Description
Overview Product Description Adapter Specification MG360 provides high-speed,60 GHz WiGig /802.11ad Wireless wireless 2Gbps connection to the router. IEEE 802.11ad compliance Complemented by a Wi-Fi router that supports Adaptive 360 Degree Beamforming 802.11ad, it enables wired-equivalent user experience 60GHz Radio, 2.0 Gbps for wireless usage. -
Page 5: Chapter 1 Driver Installation
The driver software updates with the new features and bug fixes are made available on our website or this link: http://millitronic.com.tw/support/ You can check for and download the latest version of software manually. If the features or behavior of MG360 do not match what is described in this guide, you migh t need to update the driver. -
Page 6: Step 2 - Start To Install
Step 2 - Start to install ◘ After executing “Setup”, it will guide you to License declaration. ◘ It’s the install the WiGig driver. “I accept the terms in the License Agreement.” Check ◘ Please Click “Next”. “Next ” and Click Chapter 1 - Driver Installation... -
Page 7: Step 3 - Install Peraso Driver
Step 3 - Install Peraso Driver “Yes” ◘ This is to install the Peraso WiGig driver, and its ◘ Click to continue the installation. “Install” related system services. Click to start installation. Chapter 1 - Driver Installation... -
Page 8: Step 4 - Installation Complete
Step 4 - Installation Complete “ Finish ” ◘ Click to close this window and complete the installation. Chapter 1 - Driver Installation... -
Page 9: Chapter 2 - User Manual
Chapter 2 - User Manual Effective Area Horizontal Vertical Router Adapter Router Adapter Clear This Area The effective range between MG360 USB adapter and WiGig router is shown in the following figure. 150° Please keep MG360 in the fan area, which has a radius of 3meter and a field of view of 150-degree Warning: from the center of router on the horizontal plane... -
Page 10: Mg360 Connect To The Router
MG360 Connect to The Router No matter if the adapter is plugged into the left side or This is an example for using MG360 to connect to right side of the notebook computer, it can connect to the NetGear router. At first, Click the icon ( ) in the the router in the range of the radius. - Page 11 "Wi-Fi" 2.1: Click panel, and confirm Wi-Fi has 2.2: If any hotspot exists, it will be listed. Select the turned on. If so, MG360 will scan the vicinity. SSID of the NetGear router. Chapter 2 - User Manual...
- Page 12 2.3: Click "Connect"; It needs a password to connect "Connected" 2.4: If you can see as below, it means in secured mode, but not in open mode. that it has connected. Chapter 2 - User Manual...
-
Page 13: Appendix: Light Signals
Appendix: Light Signals Appendix 2: Frequently Asked Questions In USB 3.0 Port Please refer to the User Manual in the CD Drive of MG360 Green Blue Gray Ready to Connecting Error No power In USB 2.0 Port 2 Green + Red 2 Green + Blue Ready to Use Connecting... -
Page 14: Appendix 3 : Safety Information
Appendix 3 : Safety Information (1) This product can only be used in rooms at 26 Company: Millitronic degree celsius ( Fahrenheit 78.8 ) , please do not use PN: MG360 the product in a non-ventilated place. FCC ID: 2AJASU3WG360 (2) Avoid covering the machine covered when the This device complies with Part 15 of the FCC Rules. - Page 16 7F-6., No. 237, Sec. 1, Datong Rd., Xizhi Dist. New Taipei City 221, Taiwan www.millitronic.com.tw...
