Welding Machine MMA 20–200 A
63318

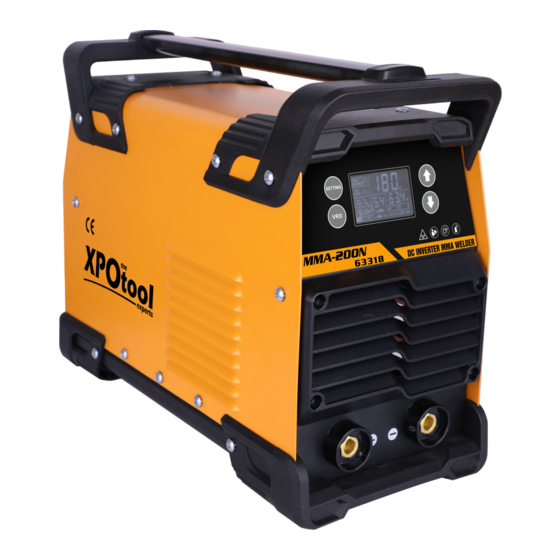

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 63318
Summary of Contents for XPOtool 63318

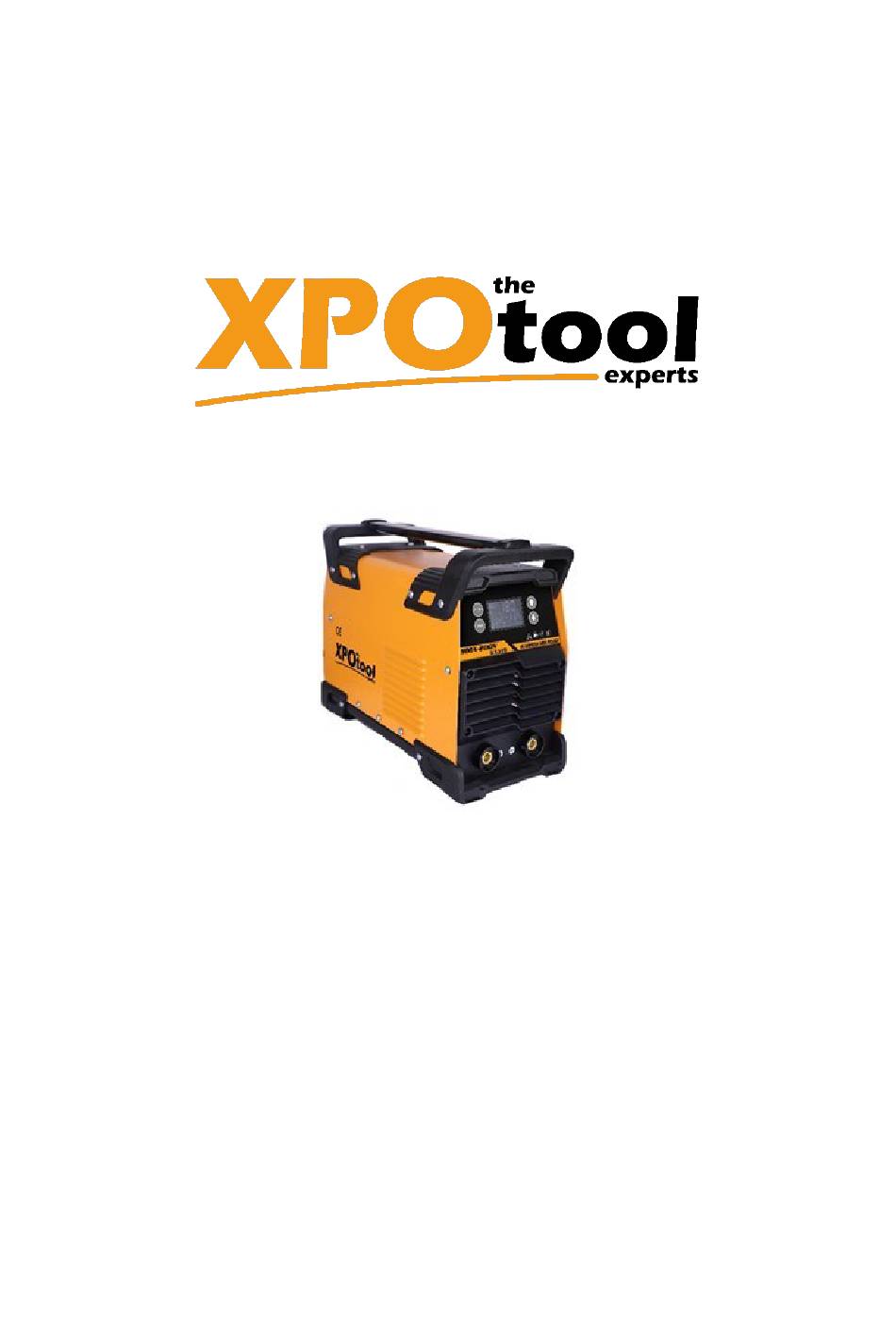

- Page 1 User’s manual Welding Machine MMA 20–200 A 63318 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 63318 Page 2 The Tool Experts 05 2022-1...
- Page 3 Welding sparks can cause fire. Therefore, make sure that no flammable material is nearby and pay attention to possible fire dangers. • Have a fire-extinguisher at hand and have a trained person use it in case. • Welding air-tight containers is forbidden. https://www.XPOtool.com Item 63318 Page 3 The Tool Experts 05 2022-1...
- Page 4 (see below). The machine is equipped with an automatic tension compensation that keeps the tension range within the rated range. Should the input tension exceed the given value, the components of the machines might be damaged. https://www.XPOtool.com Item 63318 Page 4 The Tool Experts 05 2022-1...
- Page 5 Simple arc ignition, less spatters, stable current, and good shaping Control elements and description Control panel № Name LCD display Adjustment of different functions VRD on or off Current increase button: https://www.XPOtool.com Item 63318 Page 5 The Tool Experts 05 2022-1...
- Page 6 Display of input voltage 1–10 Display of electrode diameter: The electrode diameter preset refer to the according cur- rent range. Modify the electrode diameter using the buttons 4 and 5. Pressing the buttons https://www.XPOtool.com Item 63318 Page 6 The Tool Experts 05 2022-1...
- Page 7 4. Plug the cable plug into the “–” connection of the front of the welding machine and tighten it clockwise. 5. For safety reasons, an earth connection is required. https://www.XPOtool.com Item 63318 Page 7 The Tool Experts 05 2022-1...
- Page 8 Check on a regular basis if the insulation covers of all cables are in a good condition. If they are damaged, re-wrap or replace them. • Store the device in its original packing and in a dry spot if will not be used for a long period. https://www.XPOtool.com Item 63318 Page 8 The Tool Experts 05 2022-1...
-
Page 9: Troubleshooting
The electrode holder is getting very hot. Nominal current of electrode holder beneath actual working current; replace with electrode holder with higher nominal current. Excess of welding spatters during MMA welding. Wrong output polarity; reverse polarity. https://www.XPOtool.com Item 63318 Page 9 The Tool Experts 05 2022-1... - Page 10 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 63318 Page 10 The Tool Experts 05 2022-1...
