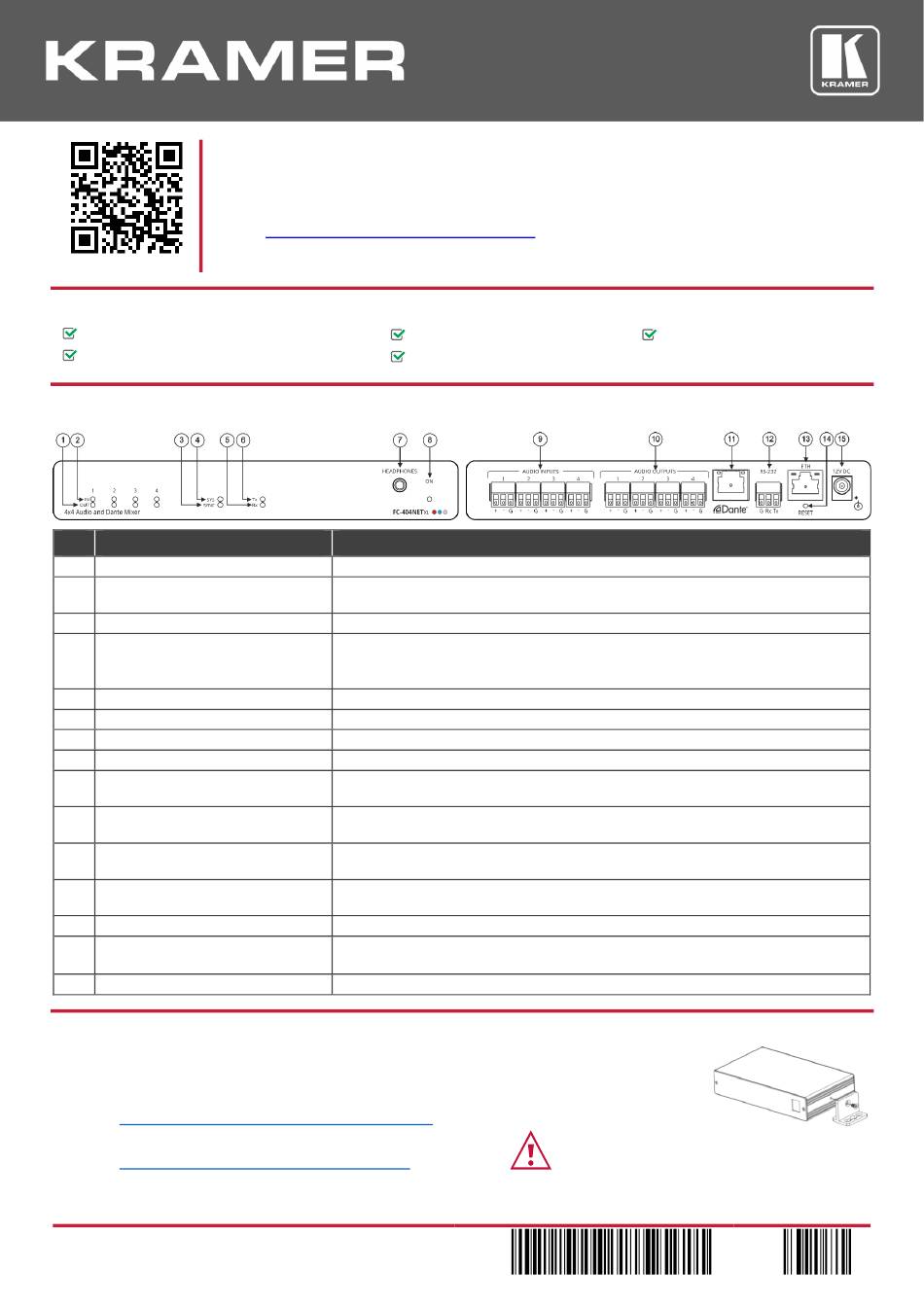

Kramer FC-404NETxI Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
FC-404NETxl 4x4 Audio and Dante Mixer
1 Bracket set

Step 2: Get to know your FC-404NETxl

# Feature
1 OUT LEDs (1 to 4)
2 IN LEDs (1 to 4)
3 SYNC LED
4
SYS LED
5 Rx LED
6 Tx LED
7 HEADPHONES 3.5mm Mini Jack
8 ON LED
9 AUDIO INPUTS 3-pin Terminal
block Connectors (1 to 4)
10 AUDIO OUTPUTS 3-pin Terminal
block Connectors (1 to 4)
11 Dante RJ-45 Connector
12 RS-232 3-pin Terminal Block
Connector
13 ETHERNET RJ-45 Connector
14 RESET Recessed Button
15 12V DC Power Connector

Step 3: Mount FC-404NETxl

Install FC-404NETxl using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
www.kramerav.com/downloads/FC-404NETxl
(see
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/FC-404NETxl
(see
FC-404NETxl Quick Start
FC-404NETxl Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/FC-404NETxl
firmware upgrades are available.
Function
Lights green when a signal is present, lights red when clipping is detected.
Lights green when a signal is present, lights red when clipping is detected.
Use the embedded web pages to select line level, mic level or 48V for each input.
Lights green when Dante network is available or red if an error occurred.
Lights green for digital audio normal operation.
Flashes green when this unit is the Master clock.
Lights red if an error has occurred.
Lights green when an RS-232 signal is received.
Lights green when an RS-232 signal is transmitted.
Connect to a headphone set.
Lights green when the device is powered.
Connect to analog balanced mono line/mic level (with selectable 48V) sources.
Connect to analog balanced mono line level acceptors.
Connect to Dante audio via the network. Provides 4 Tx channels and 4 Rx channels.
By default, DHCP is enabled.
Connect to a PC/serial controller.
Connect to a PC via a LAN.
Reset/reboot the device: press and release the button.
Reset to factory default values: press and hold the button for 30 secs.
12V DC connector for powering the unit.
FC-404NETxl for the first time.
to download the latest user manual and check if
1 Power cord and adapter
4 Rubber feet
).
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
).
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
