Kramer 482xl Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
482xl Bi-directional Audio Transcoder
1 Power supply (12V DC)

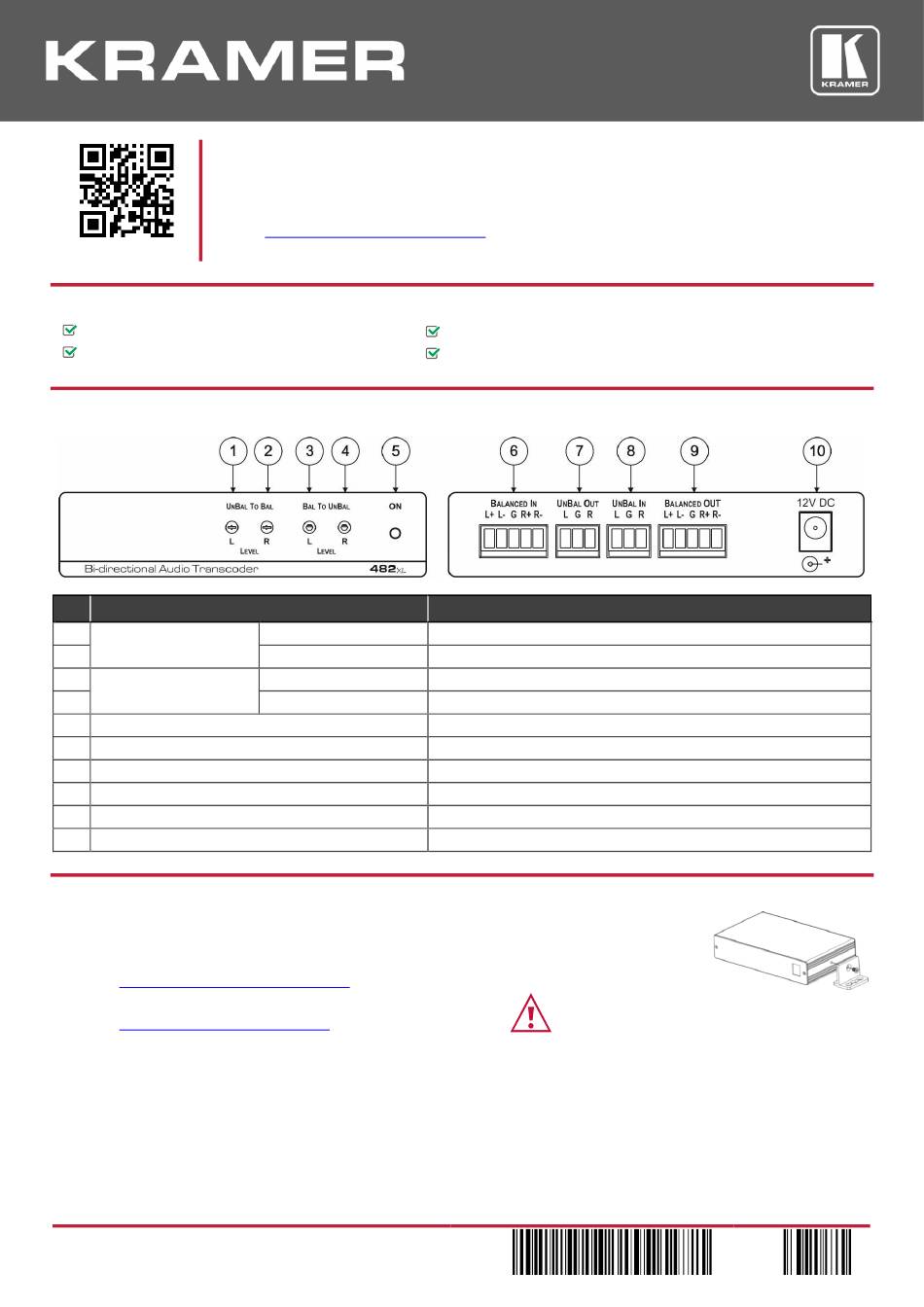

Step 2: Get to know your 482xl

# Feature
1 UNBAL TO BAL
2
3 BAL TO UNBAL
4
5 ON LED
6 BALANCED IN 5-pin Terminal Block Connector
7 UNBAL OUT 3-pin Terminal Block Connector
8 UNBAL IN 3-pin Terminal Block Connector
9 BALANCED OUT 5-pin Terminal Block Connector
10 12V DC

Step 3: Mount 482xl

Install 482xl using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/482xl).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/482xl).
482xl Quick Start
482xl Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/482xl
upgrades are available.
L LEVEL Trimmer
R LEVEL Trimmer
L LEVEL Trimmer
R LEVEL Trimmer
482xl for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
Function
Adjust the left unbalanced audio output signal level (see Step 5)
Adjust the right unbalanced audio output signal level
Adjust the left balanced audio output signal level
Adjust the right balanced audio output signal level
Illuminates when receiving power
Connect to the balanced audio source
Connect to the unbalanced audio acceptor
Connect to the unbalanced audio source
Connect to the balanced audio acceptor
+12V DC connector for powering the unit
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 8 4 QS Rev: 2
