User Manual

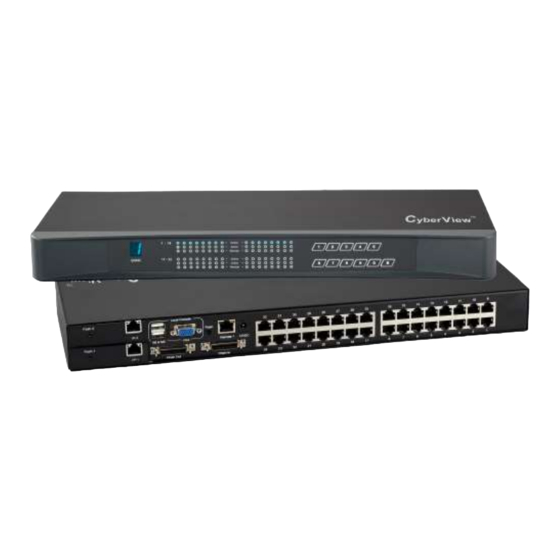

Matrix Cat6
MU-IP1613 / 1624
MU-IP3213 / 3224
Matrix Cat6 KVM
MU-1602 / 1603 / 1604
MU-3202 / 3203 / 3204
Designed and manufactured by Austin Hughes
UM-CV-751-MUKVM-Q222V1
dedicated KVM switch and rackmount screen technology
KVM
www.austin-hughes.com
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU-IP1613 and is the answer not in the manual?

Questions and answers

Related Manuals for Cyber View MU-IP1613

Summary of Contents for Cyber View MU-IP1613

  • Page 1 KVM switch and rackmount screen technology User Manual Matrix Cat6 MU-IP1613 / 1624 MU-IP3213 / 3224 Matrix Cat6 KVM MU-1602 / 1603 / 1604 MU-3202 / 3203 / 3204 Designed and manufactured by Austin Hughes UM-CV-751-MUKVM-Q222V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, May 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > Matrix Cat6 IP KVM MU-IP1613 MU-IP1624 MU-IP3213 MU-IP3224 Package Contents KVM port & Cat6 dongle connection IP, Remote & Local console connection Connect to IP console IP Console Firmware Update KVM Cascade P.10 Specifi cations P.11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Package Contents

    Matrix Cat6 Matrix Cat6 IP KVM < 1.1 > Package Contents MU-IP1613 / MU-IP3213 MU-IP1624 / MU-IP3224 • MU-IP1613 or MU-IP3213 or MU-IP1624 or MU-IP3224 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit •...

  • Page 6: Kvm Port & Cat6 Dongle Connection

    < 1.2 > KVM port & Cat6 dongle connection Matrix Cat6 IP KVM Matrix Cat6 IP KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max.

  • Page 7: Ip, Remote & Local Console Connection

    < 1.3 > IP, Remote & Local console connection Matrix Cat6 IP KVM Receiver For remote console, max. cable length is subject to the resolution. Please refer to the tables below. IP Console Remote Console Frequency Frequency Max. Cat6 Cable Resolution Support Resolution Support ( Hz )
  • Page 8 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer...

  • Page 9: Connect To Ip Console

    < 1.4 > Connect to IP console Matrix Cat6 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Confi gure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off...
  • Page 10 Matrix Cat6 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-MUKVM-Q222V1 www.austin-hughes.com...
  • Page 11 Matrix Cat6 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows:...
  • Page 12 Matrix Cat6 IP KVM III. Confi gure Remote Console Resolution The IP remote console displayed on the HTML5-based browser support multiple types of resolution, with a maximum of 1,920 x 1,200. Click Remote Console and then Resolution, the Remote Console Video page is displayed, select the same resolution as target servers, click Apply to save the resolution.

  • Page 13: Ip Console Firmware Update

    < 1.5 > IP Console Firmware Update Matrix Cat6 IP KVM Firmware Update Steps 1) Download the latest IP KVM fi rmware from the link http://www.austin-hughes.com/resources/software/kvm-switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click <...

  • Page 14: Kvm Cascade

    < 1.6 > KVM Cascade Matrix Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 15: Specifi Cations

    16:10 - max. 1920 x 1200 4: 3 - max. 1600 x 1200 ▀ IP Remote Console 1 for MU-IP1613 / MU-IP3213 Number of IP console : 2 for MU-IP1624 / MU-IP3224 User management : 15-user login, 1 x active user Browser : Chrome, Firefox, Edge, etc.

  • Page 16: Matrix Cat6 Kvm

    < Part 2 > Matrix Cat6 KVM Matrix Cat6 KVM < 2.1 > Package Contents MU-1602 / MU-3202 • MU-1602 or MU-3202 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •...
  • Page 17 Matrix Cat6 KVM MU-1602 Local Console Remote Console 1 Power Cascade MU-3202 MU-1603 Local Console Remote Console 1 Power Remote-2 Cascade MU-3203 MU-1604 Remote-3 Local Console Remote Console 1 Power Remote-2 Cascade MU-3204 UM-CV-751-MUKVM-Q222V1 P.13 www.austin-hughes.com...

  • Page 18: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable CAT 5 / 6 cable DG-100P max.

  • Page 19: Local Console & Remote Console Connection

    < 2.3 > Local console & remote console connection Matrix Cat6 KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200...
  • Page 20 How to use a receiver to connect a remote console Matrix Cat6 KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer CE-6...

  • Page 21: Kvm Cascade

    < 2.4 > KVM Cascade Matrix Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 22: Specifi Cations

    < 2.5 > Specifi cations Matrix Cat6 KVM MU-1602 MU-1603 MU-1604 MU-3202 MU-3203 MU-3204 KVM Port ▀ Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀...
  • Page 23 < Part 3 > Usage Matrix Cat6 KVM Usage < 3.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 16 ports Bank no.
  • Page 24 < 3.2 > Password Matrix Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 25: Matrix Cat6 Kvm Usage

    < 3.3 > KVM OSD Matrix Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter...

  • Page 26: Kvm Hotkey & Remote Console Hotkey

    < 3.4 > KVM Hotkey & Remote Console Hotkey Matrix Cat6 KVM Usage Matrix Cat6 KVM Usage Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock +...
  • Page 27 Intentionally Left Blank...
  • Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-MUKVM-Q222V1 www.austin-hughes.com...
