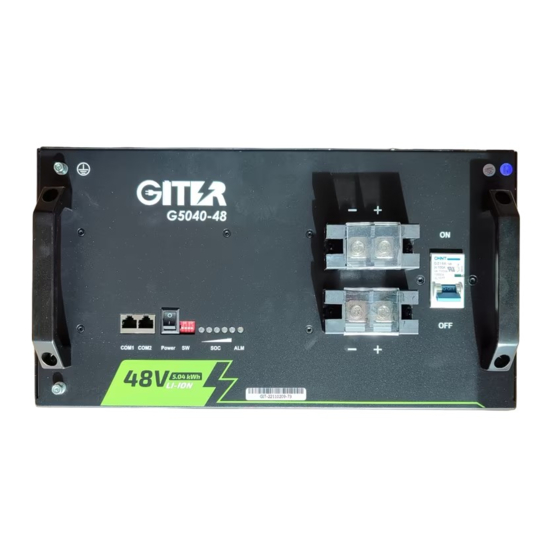

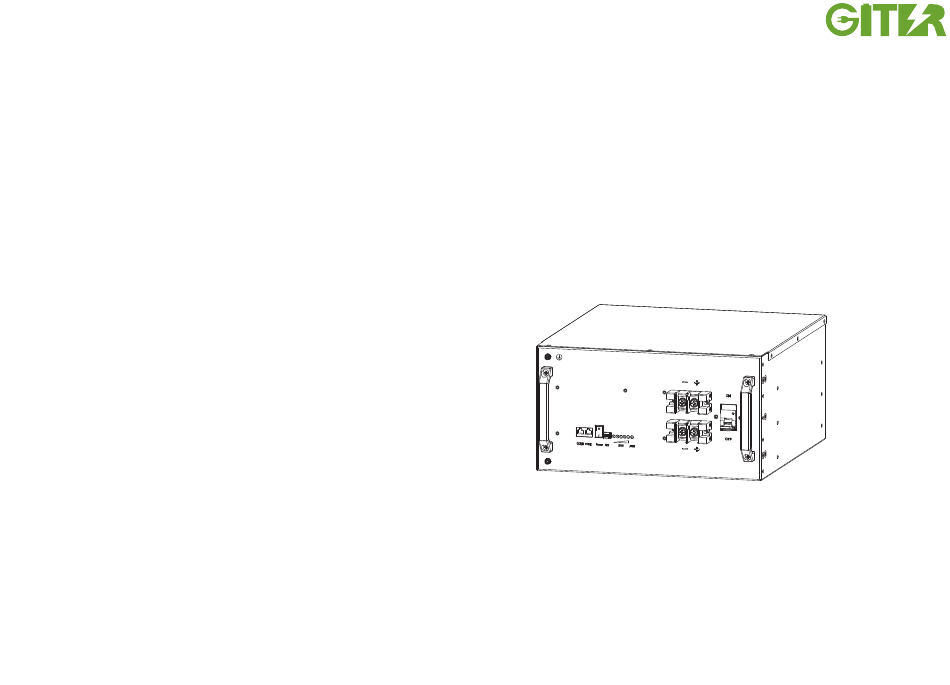

- Page 1 INSTALLATION MANUAL BATTERY MODULE G5040-48 Giter Co., Ltd. 808-812, Building 10A, Zilang Science and Technology City, 60 Chongzhou Avenue, Economic and Technological Development Zone, Nantong，Jiangsu Province, 226006 +86 512 6828 7609 Version：V1.0 info@giter-ess.com www.giter-ess.com...
-
Page 2: Table Of Contents
CONTENT Copyright Statement This manual is under the copyright of GITER Co., Ltd, with all rights reserved. Please keep the 1. Introduction manual properly and operate in strict accordance with all safety and operating instructions in this 1.1 General Precaution manual. -
Page 3: Introduction
Check the following parts list and make sure there is no part missing. WARNING G5040-48 During standard operation, no electrolyte shall leak from the battery pack and no toxic gases shall form. Despite careful construction, if the Battery Pack is damaged or a fault occurs, it may be caused by electrolyte leakage or the formation of toxic gas . -
Page 4: G5040-48
If the problem is not resolved, please contact Error 05 MOSFET error GITER after sales team. Please keep consist-ence of Figure 1 G5040-48 Interface DIP switch mode Error 07 DIP switches, then restart difference the system. Item Description... -
Page 5: Protection Code
3.4 Limitation of Liability Giter does not assume any direct or indirect responsibility for any product damage or property loss caused by the following conditions. Modify the product, change the design or replace parts without Giter’s au-thorization;... -
Page 6: Installation And Wiring
3.5.3 Installation and Wiring The following work should be completed before wiring: 1. Ensure that the power button of all batteries is OFF; 2. Cut off all relevant power supply equipment. 3.5.3.1 Installation with cabinet Step 1: As shown in Figure 3, fix the hangers on both sides of the battery with 10 screws (M4*8) respectively.(Torque: 1.6 Nm;... -
Page 7: Communication Connection Diagrams
3.5.4 Communication Connection Diagrams 3.5.5 DIP Switch As shown in Figure 6 connect the communication cable, and set the DIP switch after the connection. Switch on "2" &"4" for the first battery (the one closest to the inverter). Switch on "1", "2"&"4" for the last battery (the one farthest from the inverter) and "4"... -
Page 8: System Operation
4. System Operation 5.2 Faults and Abnormal Phenomena Common faults and corresponding troubleshooting are listed below. Check all power cables and communication cables carefully. 5.2.1 Unable to turn on Switch On/Off Fault Troubleshooting Description Press the Power switch Check if there is If the button has no to "ON"... -
Page 9: Unable To Discharge
If the voltage is about 45V, 6. Specification please charge immediately. If there is no voltage, please Items G5040-48 contact customer service. If the voltage is normal, restart Nominal Voltage 48 V the battery. Nominal charge/ dis-charge current 52.5 A...
