Installation manual ValkBox3
Version 01 | January 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the ValkBox3 and is the answer not in the manual?

Questions and answers

Related Manuals for Van Der Valk ValkBox3

Summary of Contents for Van Der Valk ValkBox3

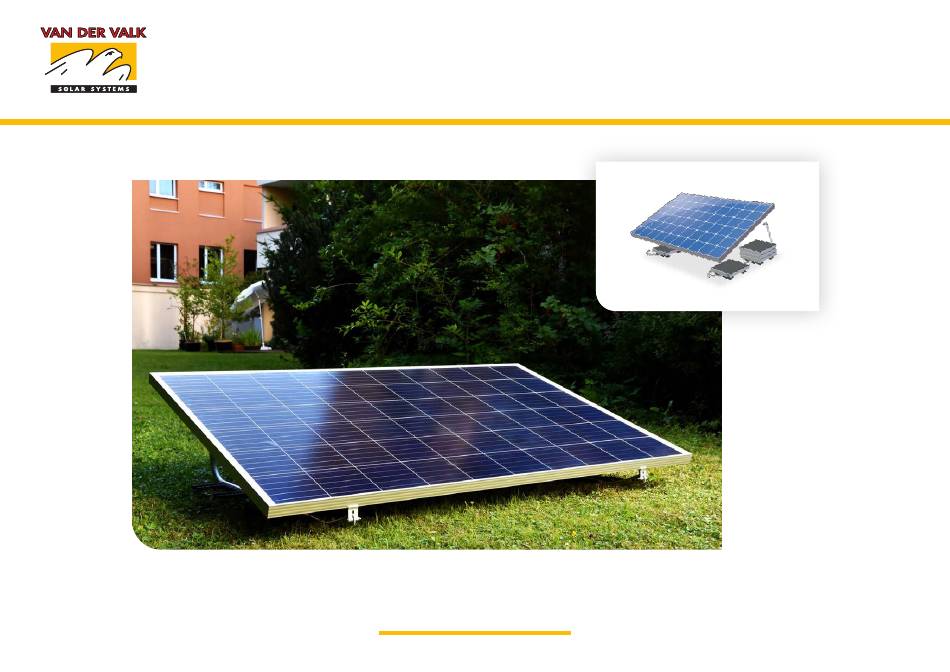

  • Page 1 Installation manual ValkBox3 Version 01 | January 2022...

  • Page 2: Pay Attention

    Installation manual ValkBox3 Index Pay attention Disclaimer Page 3 • This manual is not project specific. Required ballast Page 4 • This manual is not legally binding. Safety instructions Page 5 • No rights may be derived from this installation manual.
  • Page 3 Eurocode regulations. The standard values used for input of these calculations, always need to be checked in advance by the installer for correctness. In case values are different, a project case specific calculation needs to be made. Please contact Van der Valk Solar Systems in this situation.
  • Page 4 General • Tile weight: 9 kg The ValkBox3 mounting system must be weighted down by tiles, which will be • Terrain category: town (sites more than 1 km inside town boundary - area where at placed at positions G1 and G2. Start by choosing the wind area in which the system least 15% of the surface is covered with buildings with an average height above 15m) will be installed from the overview below.

  • Page 5: Safety Instructions

    Installation manual ValkBox3 Safety instructions Type of roofs The ValkBox3 mounting system can be used to mount panels on flat roofs. The following The ValkBox3 mounting system is installed on roofs and will be exposed to wind and starting points apply: snow.
  • Page 6 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 7 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 8 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 9 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 10 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 11 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 12 Wind area | Norway Provincie Østfold Provincie Nord-Trøndelag Provincie Troms Nore og Uvdal Sokndal Flora Except Municipalities: Nore og Uvdal near Hordeland 24 Bokn Gulen Except Municipalities: Except Municipalities: Halden Ål Haugesund Bremanger Lierne Bardu Moss Ål near Sogn og Fj. Klepp Bremanger near the Ålfotbreen 29 Meråker...
  • Page 13 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 14 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 15 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 16 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 17 = the required ballast is higher than will fit under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems. * If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
  • Page 18 Installation manual ValkBox3 Components 5x (1 spare) 5x (1 spare) 9x (1 spare)
  • Page 19 Installation manual ValkBox3 Step 1: Mounting the clevis Step 2: Mounting the curved supports The curved aluminum supports are suitable for See other panel dimensions panels with a width of 100 - 110 cm. on next page. Tighten the hinge bolts B1 by hand. These must be removed temporarily at step 4.
  • Page 20 Installation manual ValkBox3 Option 1: Mounting panel Under lip Top lip facing turned inwards inwards Suitable panel dimensions: 979 - 1005 mm (measured outside panel - outside panel) A (1 : 4) B (1 : 4) Center to center mounting holes (panel frame): 959 - 985 mm...
  • Page 21 Installation manual ValkBox3 Step 3: Placing the rubber tiles Step 4: Position the ballast Turn over the panel and place it on the rubber tile carriers. Remove the top hinge bolts B1 and place the panel in a vertical position. Make sure that you have some form of support in place or someone to hold the panel temporarily.
  • Page 22 Installation manual ValkBox3 Step 5: Tighten hinge bolts B1 Step 6: Finish fitting the cables Attach the panel to the curved supports again and tighten hinge bolts B1. The loose cables can be secured to the edge of the panel. Using the cable clamps supplied.
