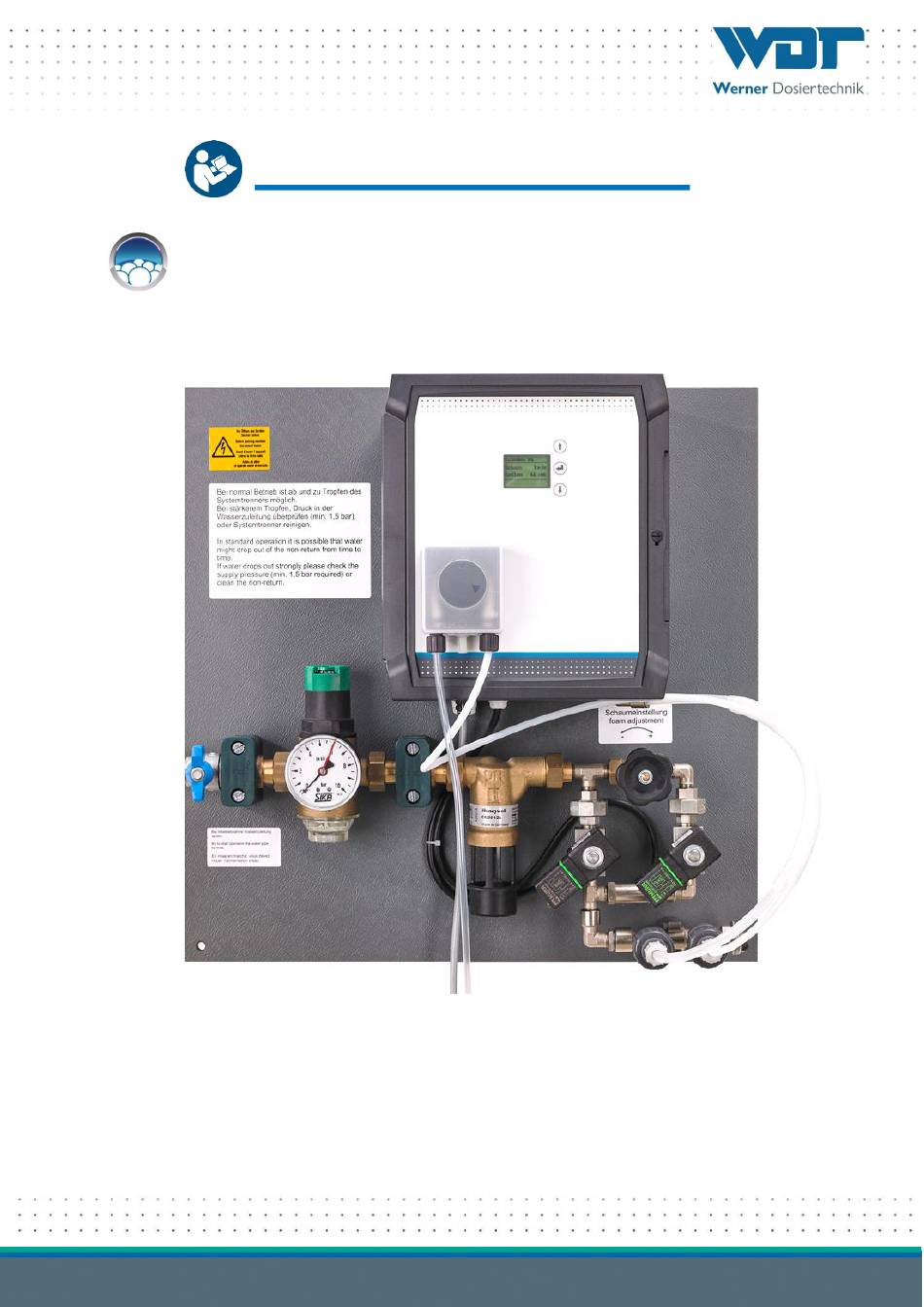

- Page 1 Operating Instructions Dosing Device Foamdos V6 Massage foam for hammam massages Article no: 27165 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Language: EN...
-
Page 2: Table Of Contents
6.5.11 Emptying foam line (accessory) ......................... 23 6.5.12 Emptying time (accessory emptying foam line) ..................23 6.5.13 Emptying type (accessory emptying foam line) ..................23 Index: 00 Date modified: 18/05/2021 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 2 of 37... - Page 3 Reproduction of any kind and translation into other languages, even in excerpts, are only permitted with the express authorisation of the company WDT - Werner Dosiertechnik GmbH & Co. KG. These operating instructions are an English translation of the original German version by the company WDT. Responsible for the content: Co.
-
Page 4: About These Instructions / General
About these instructions / general Scope of applicability These instructions describe the functioning, installation, commissioning and operation of the FOAMDOS V6 dosing device along with the corresponding accessories. The Operating Instructions must be read carefully prior to use or any maintenance work, and must be kept in... -
Page 5: Warranty
All devices and systems of the Co. WDT are manufactured using state-of-the-art manufacturing methods and are subject to a comprehensive quality control. However, should there be a reason for complaint, any compensation claims shall be directed to the company WDT in accordance with the general terms and conditions of warranty (see below). -
Page 6: Safety
It is not permitted to make any modifications to the device. If this specification is not observed, the warranty obligation and product liability will expire! Index: 00 Date modified: 18/05/2021 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 6 of 37... -
Page 7: Product Description - Scope Of Delivery
(optionally adjustable). Settings in the programme can be made on the LCD display. Index: 00 Date modified: 18/05/2021 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 7 of 37... - Page 8 22. Ventilation grille (covered) 11. Dosing valve air with hose line 23. Position mains switch (covered) 12. Solenoid valve flushing 24. Opening mechanism control housing Index: 00 Date modified: 18/05/2021 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 8 of 37...
-
Page 9: Dosing Unit
Button plate with flush-mounted box for starting or stopping the programme. For details about the flush-mounted box, see supplementary sheet “BB DW 001-03 Installation flush-mounted box V2” Figure 4, Button plate Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 9 of 37... -
Page 10: Suction Lance
Enter the data from your device’s identification plate here. Field 1: Enter serial number Field 2: Enter date of manufacturing Figure 6, Identification plate Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 10 of 37... -
Page 11: Technical Data
5°C to 45°C Ambient temperature technical room 5°C to 35°C Humidity technical room max. 70% Ventilation (in and out) Recommended for the technical room Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 11 of 37... -
Page 12: Transport / Storage
The foam concentrate must be stored in a separate storage room. The ambient temperature must not exceed 25 °C. See also Chapter 2.2.1 Handling of chemicals. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 12 of 37... -
Page 13: Installation
ATTENTION! Seal the button plate against the wall with a suitable sealant to prevent any condensation moisture from penetrating behind the button plate. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 13 of 37... -
Page 14: Hydraulic Installation
Inlet 38°C recommended drain valve to sewer to sewer foam concentrate Figure 9, Installation plan unit with drain valve Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 14 of 37... - Page 15 (option) or as b) fixed foam dispenser (on-site service) Install line from system separator to drain, at least d40mm Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 15 of 37...
-
Page 16: Electrical Installation
2. Switch off the mains switch on the device. 3. Connect the button plate’s plug to the device. 4. Insert the mains plug into the isolated ground socket. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 16 of 37... -
Page 17: Commissioning
The peristaltic pump is fitted with a white dosing hose. Figure 12, Peristaltic pump Push the roller carrier onto the shaft. Figure 13, Insert roller carrier Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 17 of 37... -
Page 18: Establish Power Supply
1. Ensure that all installation tasks have been completed. Observe the sequence of the commissioning works. 2. Insert the mains plug into the socket. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 18 of 37... -
Page 19: Operation / Service
Use the Enter key to acknowledge the selected submenu. The Enter key can also be used to navigate back to the previous screen. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 19 of 37... -
Page 20: Switch On Foamdos V6
Figure 17, Button plate The two push buttons are mutually interlocked. This means if one programme is running, the other programme cannot be started. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 20 of 37... -
Page 21: Control Unit Menus
Only after the pressure has been reduced can the foam production be restarted with the “Foam” push button on the button plate. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 21 of 37... -
Page 22: Test Foam
The control LED on the solenoid valve lights up. 6.5.9 Test pump Only for function control. Start the peristaltic pump. Function: The peristaltic pump is running. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 22 of 37... -
Page 23: Test Fault (Not Conducted By The Factory)
Language Select the language of the texts in the display. E.g., German, English, … 6.5.16 Info Indicate the software version and serial number Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 23 of 37... -
Page 24: Factory Reset
Fault indications are displayed as an option. Fault indications are highlighted in red. Fault hose break The hose in the peristaltic pump is leaking. (Not done by the factory) Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 24 of 37... -
Page 25: Adjust The Foam Consistency
Press the “Foam” push button on the button plate until the foam runs out at the withdrawal point. The display shows “Test foam”. Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 25 of 37... -
Page 26: Maintenance, Care, Faults
37. Sealing washer EPDM 33. Hose bracket with dosing hose 38. Gear motor 34. Roller carrier 39. Washer 35. Pump casing 40. Screw Index: 01 Date modified: 26/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 26 of 37... -
Page 27: Dosing Valves, Renew Valve Rubber
Carefully remove the valve rubber (pos 51) from the tappet d) Push a new valve rubber onto the tappet e) Reassemble the dosing valve Figure 21, Dosing valve Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 27 of 37... -
Page 28: Trouble-Shooting
Replace foam concentrate No pressure build-up Compressor defective Check / renew compressor Pressure lines leak Check / renew lines Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 28 of 37... -
Page 29: Decommissioning - Storage - Disposal
When recommissioning, it is essential that the instructions in the “Commissioning” chapter are observed and the points contained in the commissioning protocol are implemented. Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 29 of 37... -
Page 30: Documents
Dosing Device Foamdos V6 Documents Declaration of conformity Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 30 of 37... -
Page 31: Wiring Diagram
Dosing Device Foamdos V6 Wiring Diagram Notice for wiring diagrams: The wiring diagrams can also be found near the device’s control cabinet. Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 31 of 37... -
Page 32: Commissioning Protocol / Instruction
This protocol is to be completed by the commissioning technician! Without a completed and signed commissioning protocol, all warranty claims become void! The commissioning protocol is located in the accompanying documentation. Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 32 of 37... -
Page 33: Operation Data Sheet
SV or compressor Contrast 0-15 Password protection ON / OFF for user menu * : Sequence when switching on directly according to factory settings Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 33 of 37... - Page 34 SV or compressor Contrast 0-15 Password protection ON / OFF for user menu * : Sequence when switching on directly according to factory settings Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 34 of 37...
-
Page 35: Maintenance Protocol
Maintenance protocol Carry out the specified maintenance tasks in order to protect any warranty claims. The maintenance protocol is located in the accompanying documentation. Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 35 of 37... -
Page 36: Spare Parts List, Wear Parts List, List Of Consumables
12609 Valve rubber for dosing valve 28732 List of consumables Foam concentrate: A list of current foam concentrates can be obtained from WDT. Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 36 of 37... -
Page 37: 10 Appendices
Dosing Device Foamdos V6 10 Appendices Commissioning protocol Maintenance protocol Supplementary sheet “BB DW 001 Installation flush-mounted box V2” Personal notes Index: 01 Date modified: 30/08/2019 OI No.: BA DW 025-00 Foamdos V6 EN.DOCX Page 37 of 37... - Page 39 2.2 Service and operating personnel instructed Additional remarks: Commissioning and instruction carried out by: ......................Instructed persons: ..............................Signature of commissioner: ............................Countersigned by operator: ............................Page 1 of 1 Z:\org-wdt\02 Qualitätsmanagement\ISO 9001\MS - Originale - Formuale, Prüfbericht etc\WDT Inbetriebnahmeprotokolle IP\WDT-IP-071-EN-FOAMDOS-V6 FO 00.docx...
- Page 41 Signature Countersigned by operator: Signature Z:\org-wdt\02 Qualitätsmanagement\ISO 9001\MS - Originale - Formuale, Prüfbericht etc\WDT Wartungsprotokolle WP\WDT-WP-075-EN-FOAMDOS-V6 FO 00.docx = Work completed Key: 1 = monthly, 3 = every 3 months, 6 = every 6 months, etc.; Page 1 of 1...
- Page 43 EN - Additional sheet: flush mounted box V2 Assembly and sealing of the flush mounted box V2 for push button plates CAUTION ! Before starting to work, make the electrical lines volt free and protect them against new connection! Wear protective clothes! Assembly in building panels a) Install the empty conduit at the g) Place...
- Page 44 Plaster the brickwork so that the Flush mounted flush mounted box flushes with the plaster. Brickwork WDT - Werner Dosiertechnik GmbH & Co. KG Hettlinger Str. 17, D-86637 Wertingen-Geratshofen Phone:+49 (0) 82 72 / 9 86 97 – 0 ; Fax – 19 E-mail: info@werner-dosiertechnik.de...
