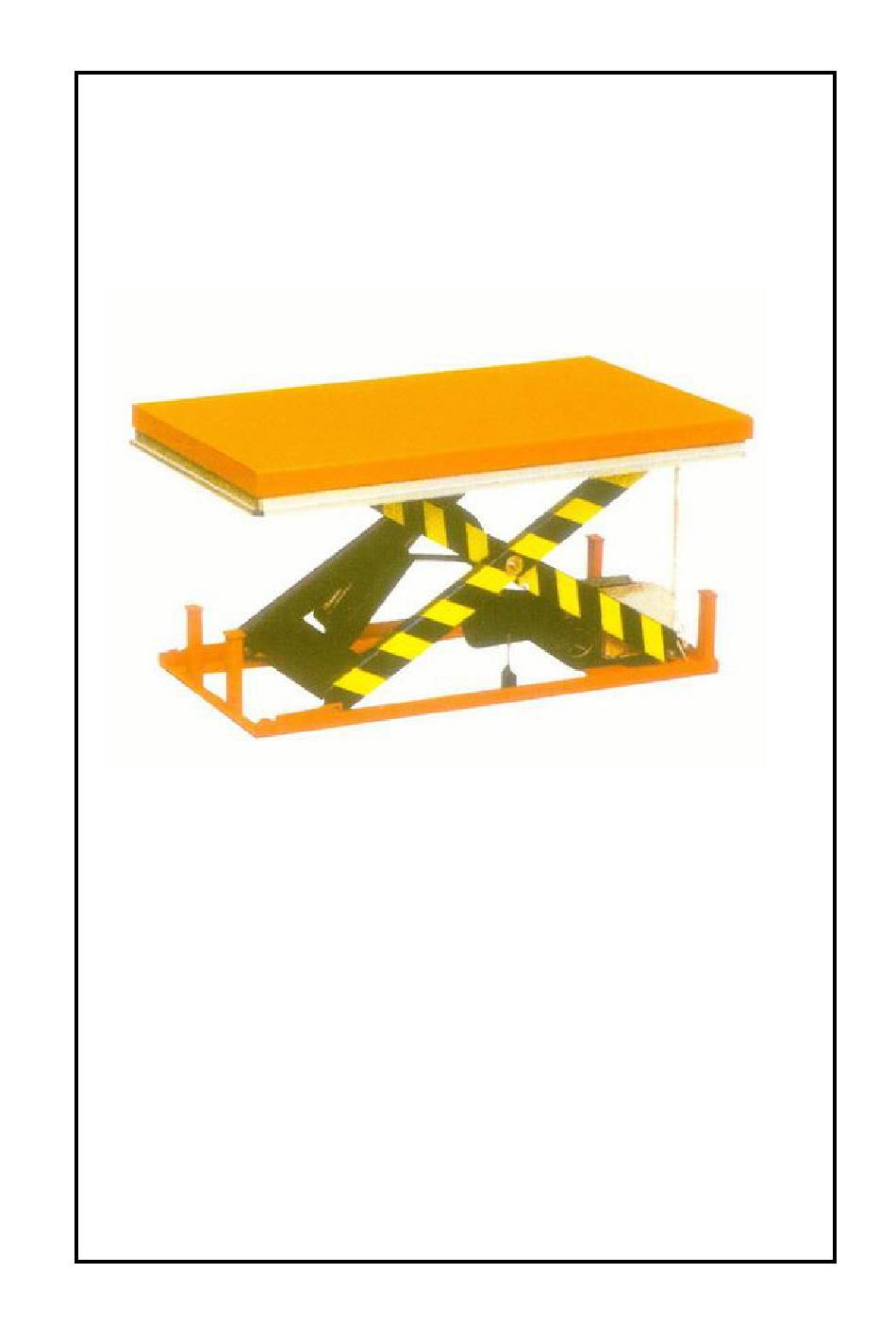

- Page 1 Instruction Manual Low Profile Lift Table Model: ET -series Note: Owner/Operator must read and understand this instruction manual before using the low profile lift table...
- Page 2 THANK YOU VERY MUCH FOR SELECTING OUR PRODUCT. THIS INSTRUCTION MANUAL DESCRIBES CORRECT OPERATING METHOD TO ENSURE PROLONGED SERVICE LIFE. PLEASE READ AND COMPLETELY UNDERSTAND THIS MANUAL BEFORE OPERATING THE LOW PROFILE LIFT TABLE. ALWAYS KEEP THIS MANUAL AT AN APPROPRIATE PLACE. IF THE MANUAL OR WARNING DECAL IS MISSING, PLEASE CONTACT WITH DEALER.
- Page 3 In accordance with EN1570, Safety Requirements for Lifting Tables, the basic requirements are: I 100% of the rated load (maximu m load) uniformly distributed over the entire platform area. II or 50% of the rated load (maxi mum load) uniformly distributed over half the length of the platform.
-
Page 4: Daily Inspection
CAUTION! If operationg the lift table improperly. A person may be injured. Therefore, operate properly according to the follwing instruction. ◇ The lift table is a moveable lifter designed to lift or lower rated load. Do not use it for other purpose. ◇... - Page 5 ◇ Check if there is any dydraulic oil leakage. ◇ Check the vertical creep of the table. ◇ Check if all the bolts and nuts are firmly tightened. 5. Operating the lift table ■ LOADING The maximum capacity of the lift table is 1000kg/2000kg. Load should be distributed on the lift table equably.
- Page 6 6. HYDRAULIC CIRCUIT & ELECTRIC PRINCIPLE DIAGRAM See Figure 1 & Figure 2 Fig. 1 Hydraulic circuit Fig. 2 Electric Principle Diagram...
-
Page 7: Greasing Points
7. SERVICE INSTRUCTIONS ■ Do routine check of fasteners, packing and oil leaking. ■ Do routine check of the function of the lift table. ■ Before service the lift table, make sure to turn off the AC power supply. ■ After service it is necessary to check the function of the lift table again. ■... -
Page 8: Troubleshooting
When greasing the bearing the lift table must not be loaded! When determining oil levels, bear in mind that the tank contains the greatest amount when the lift table is in its lowest position. Hydraulic oil must be treated as dangerous waste! 9. - Page 9 10. SPECIFICATIONS Model ET1001 ET1002 ET2001 ET2002 ET4001 ET4002 Capacity (kg) 1000kg/2200lb 1000kg/2200lb 2000kg/4400lb 2000kg/4400lb 4000kb/8800lb 4000kb/8800lb Lowest Height (mm) 1000 1000 1050 1050 1100 1100 Max. Lift Height (mm) Table Dimensions (mm) 820x1300 1000x1600 850x1300 1000x1600 1200x1700 1200x2000 Approx. Lifting Time while 20 ∽...
