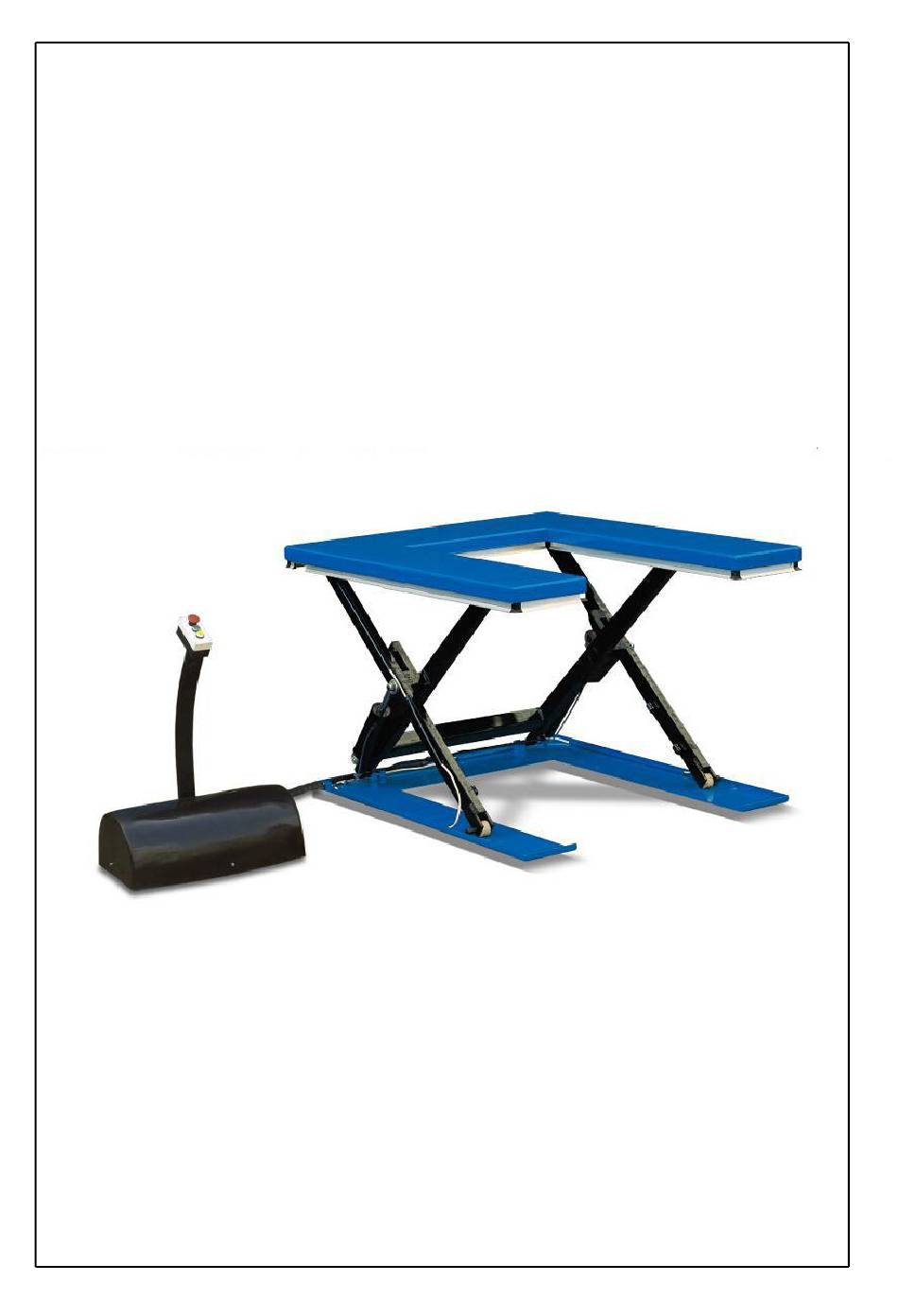

- Page 1 Instruction Manual Low Profile Lift Table Note: Owner/Operator must read and understand this instruction manual before using the low profile lift table.
- Page 2 THANK YOU VERY MUCH FOR SELECTING OUR PRODUCT. THIS INSTRUCTION MANUAL DESCRIBES CORRECT OPERATING METHOD TO ENSURE PROLONGED SERVICE LIFE. PLEASE READ COMPLETELY UNDERSTAND THIS MANUAL BEFORE OPERATING THE LOW PROFILE LIFT TABLE. ALWAYS KEEP THIS MANUAL AT AN APPROPRIATE PLACE. IF THE MANUAL OR WARNING DECAL IS MISSING, PLEASE CONTACT WITH DEALER.
- Page 3 table. ◇ While the lift table moving, it is forbidden to adjust or to move the load. ◇ It is forbidden to lift the load, which perhaps does harm to a person or other object. ◇ It is forbidden to operate the lift table while a person is under the table. ◇...
-
Page 4: Daily Inspection
3.DAILY INSPECTION Daily inspection is effective to find the malfunction or fault on the lift table. Before operation, check the lift table according to the following points. CAUTION! Do not use the lift table if any malfunction or fault is found. ◇... - Page 5 ◇ Push the DOWN button and the table will lower. ◇ Loose the DOWN button and the table will stop. NOTE ◇ The table is equipped with an aluminum guard to avoid accidental danger. ◇ If aluminum guard strikes an object while the table lowers, stop operation and check the lift table.
-
Page 6: Specifications
5.SPECIFICATIONS Model HU600 HU1000-K HU1500 Capacity (kg) 1000 1500 Collapsed Height (mm) Max. Height (mm) Platform Length (mm) 1450 1450 1600 Platform Width (mm) 1280 1180 Approx. Lifting Time while Loaded ≤25 ≤25 ≤30 Rated Capacity Output (w) 1100 1100... - Page 7 Fig. 1 Hydraulic circuit 35W 0-18-24V/200, TRANSFORMER 240,380,400 SUBVOLTAGE OVERCURRENT USER PROVIDE GUARD LIMIT FOR ONESELF HYDRAULIC POWER PACK ME-8104 MALFUNCTION LIMIT SWITCH USER PROVIDE LOWERING LIMIT SWITCH FOR ONESELF LIFTING LIMIT SWITCH ME-8104 EMERGENCY STOP DOWN BUTTON UP BUTTON RELAY 943-1C-24DS RELAY...
- Page 8 7.Service INSTRUCTIONS ■ Do routine check of fasteners, packing and oil leaking. ■ Do routine check of the function of the lift table. ■ Before service the lift table, make sure to turn off the AC power supply. ■ After service it is necessary to check the function of the lift table again. ■...
-
Page 10: Troubleshooting
8.TROUBLE SHOOTING Note: Before service it is necessary to screw two eyebolts into relevant screw-holes on the basis lest the table lowers accidentally Trouble Cause Remedy Eyebolt been ◇ Remove eyebolt ◇ removed Table cannot Correct AC voltage phrase ◇ voltage phrases ◇... - Page 11 LIFT TABLE HU Description Model HY main frame 2/C01 External Hydraulic Station HY MAIN FRAME...
- Page 12 HU Main Frame Description Model Chassis Fixed plate Washer Ø6 Inner hexagon screw M6*10 Safety switch 8104 Bolt M4*10 Bolt M4*25 Eyebolt Scissor Self-locking nut Washer Washer Shear fork shaft Include shaft...
- Page 13 Circlip for shaft Ø20 Self-lubricating iron set SF10-2030 Roller Self-lubricating iron set SF10-2025 Roller Round pin Ø6*40 Catch Limit piece Link block Table Link block Self-locking nut Fill block Bolt M6*45 8.8级 Self-lubricatingiron set SF10-2210 Roller...
- Page 14 Self-lubricatingiron set SF10-2215 Circlip for shaft Ø22 Axle Roller 35H03 Hydro-cylinder Bolt M8*30 Spring washer Ø8 Endcap for hydro-cylinder HU1000-02-11 Link bolt M14*1.5 Bonded washer Ø14 Oil pipe Seal ring Quick disconnect coupling M16*1.5 Oil pipe 700mm 3000mm O ring Power Control Assambly—CO1...
- Page 15 Hydraulic Pump-P01...
-
Page 17: Electric Box
Electric Box...
