Summary of Contents for AGM WOLF-7 PRO

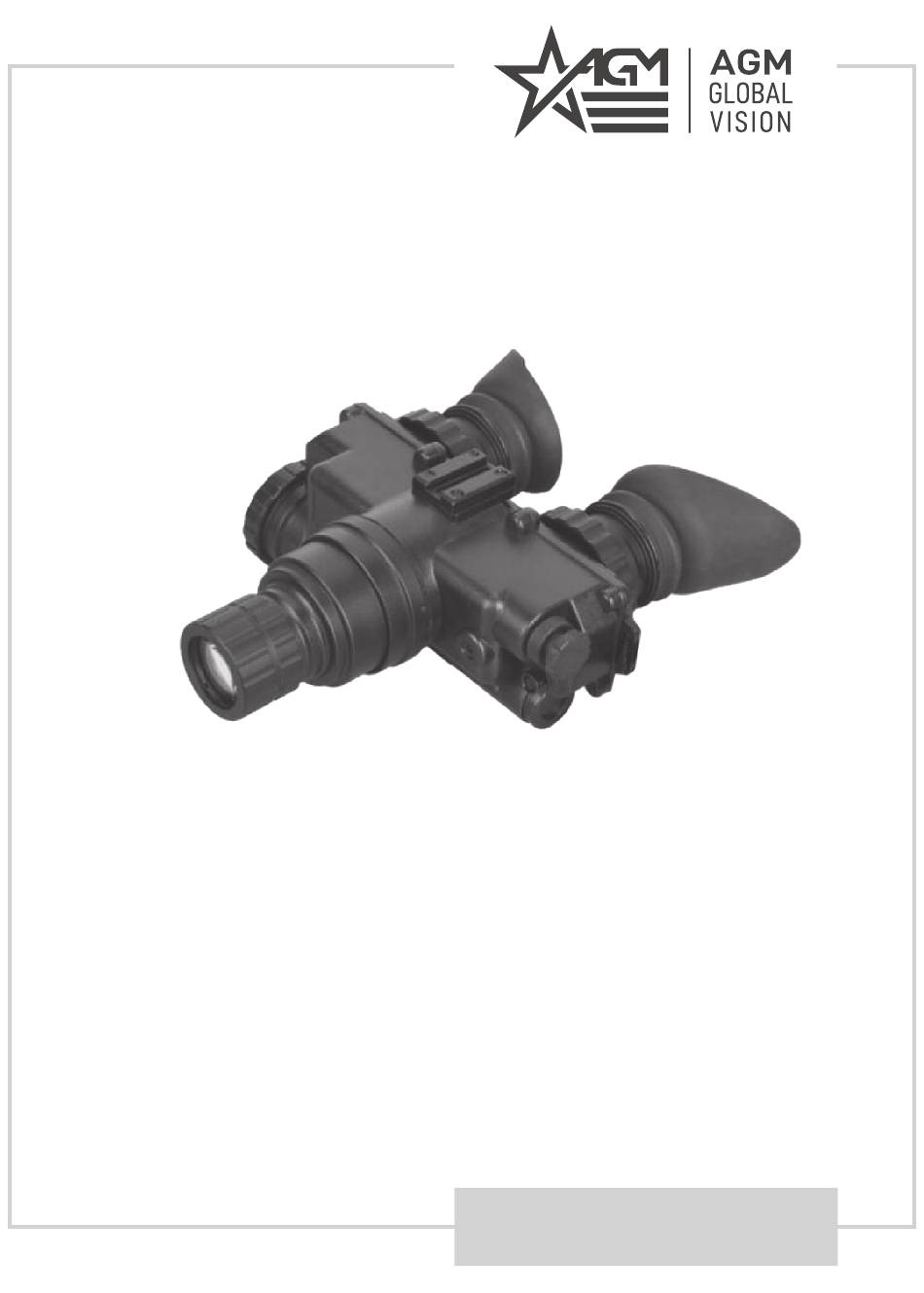

- Page 1 WOLF-7 NIGHT VISION GOGGLES USER MANUAL...
- Page 2 AGM Global Vision, LLC. If you have questions that are not covered in this manual, or need service, contact AGM Global Vision customer support for additional information prior to returning a product.
-
Page 3: Table Of Contents
2.1 Installation and mounting 2.2 Controls and Indicators 2.3 Operating Procedures SECTION 3. MAINTENANCE INSTRUCTIONS 3.1 Cleaning Procedures 3.2 Troubleshooting 3.3 Preparation for Extended Storage SECTION 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration SECTION 5. SPECIFICATIONS 5.1 Specifecations Wolf-7 PRO USER MANUAL... -
Page 4: Safety Summary
Light from the IR illuminator is more easily detected by other NVDs when used in fog, smoke, and rain. Avoid prolonged use of the IR illuminator in these conditions. • Do not use contaminated eyecup. If it is contaminated, it must be replaced. AGM Global Vision... - Page 5 Remove the batteries from the unit when it is planned to store for over 3 days. Failure to do so may damage the unit. EQUIPMENT LIMITATIONS To avoid injuries and equipment damage from using the Wolf-7 PRO, carefully read and consider the following equipment limitations. •...
-
Page 6: Section 1. General Information
1 GENERAL INFORMATION SYSTEM DESCRIPTION The Wolf-7 PRO is a bi-ocular night vision goggle system that enables mobility in moonlit or starlit conditions. The Wolf-7 PRO provides bright and clear night vision images, even in the most trying conditions. The Wolf-7 PRO includes a built-in short-range IR light source and offers a wide variety of... -
Page 7: Key Features
Limited 3-year warranty 1.3 STANDARD COMPONENTS The standard components of the Wolf-7 PRO are shown in Figure 1-2 and listed in Table 1-2. The ITEM column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. WOLF-7 PRO STANDARD COMPONENTS TABLE 1-2. -
Page 8: Optional Equipment
1.4 OPTIONAL EQUIPMENT The optional equipment of the Wolf-7 PRO is shown in Figure 1-3 and listed in Table 1-3. The ITEM column indicates the number used to identify items in Figure 1-3. FIGURE 1-3. WOLF-7 PRO OPTIONAL EQUIPMENT TABLE 1-3. WOLF-7 PRO OPTIONAL EQUIPMENT... -
Page 9: Section 2. Operating Instructions
1. Carefully press each eyecup over the diopter cell retainer. 2. Rotate each eyecup into the proper viewing position. Adjust for the best fit. The eyecups must seal around your eyes and prevent the green light from showing outside of the eyepieces. Wolf-7 PRO USER MANUAL... - Page 10 To release the mount from the bracket, press the release lever on the side of head mount. To dismount the Wolf-7 PRO from the head mount, push down on the latch lever and remove the unit.
-
Page 11: Controls And Indicators
The 3x or 5x afocal lens can be installed directly onto the objective lens. Slip on the afocal lens over the end of the 1x objective lens of the goggles. To mount the 8x lens, unscrew the existing 1x objective lens of the Wolf-7 PRO and screw an accessory lens in its place. -
Page 12: Operating Procedures
External Battery Used to connect a cable from an external power source. Connector Battery/Polarity The polarity icons are engraved into the Wolf-7 PRO battery Indicator housing, and show the proper orientation of the batteries. LED ON Indicator When illuminated (appears in the left eyepiece), this light (Not Shown) indicates that the IR illumination is on. - Page 13 Tighten the locking knob. VERTICAL ADJUSTMENT LOCKING KNOB TILT ADJUSTMENT KNOB RELEASE LEVER EYE RELIEF ADJUSTMENT HEAD MOUNT LOCKING KNOB SOCKET FIGURE 2-6. HEAD/HELMET MOUNT ADAPTER OPERATION Wolf-7 PRO USER MANUAL...
- Page 14 8. To flip the device down, grasp the goggles and rotate them down and forwards until the latch clicks into place. 2.3.4 WOLF-7 PRO SHUTDOWN 1. Turn the function switch OFF. The green glow of the viewing area will fade to black.
-
Page 15: Section 3. Maintenance Instructions
Doing so may damage the anti- reflective coating of the lens. The Wolf-7 PRO lens is designed for the harsh outdoor environment and has a coating for durability and anti-reflection, but it may require occasional cleaning. Avoid scratching the lens and/or leaving fingerprints on the optics. -
Page 16: Preparation For Extended Storage
4. Remove the unit from the headgear or helmet mount, if installed. NOTE: Prior to placing the Wolf-7 PRO and its accessories into the carrying case, ensure that the goggles and case are free of dirt, dust, and moisture. 5. Place the goggles and accessories into the carrying case. -
Page 17: Section 4. Warranty Information
Customer. AGM Global Vision’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special,... - Page 18 4.1.3 PRODUCT REGISTRATION In order to validate the warranty on your product, the customer must complete and submit AGM Global Vision PRODUCT REGISTRATION FORM on our website (www.agmglobalvision.com/ customer-support). 4.1.4...
-
Page 19: Section 5. Specifications
5 SPECIFICATIONS 5.1 SPECIFICATIONS TABLE 5-1. WOLF-7 PRO SPECIFICATIONS ITEM DATA Magnification 1x (3x, 5x and 8x optional) Lens System 24.7mm; F/1.2 40° Focus Range 0.25 m to Infinity Eye Relief 15 mm Output Pupil Diameter 15 mm Diopter Adjustment... - Page 20 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
