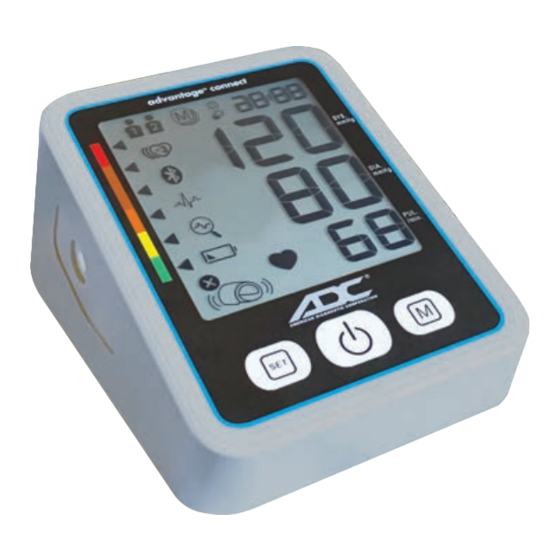

ADC advantage connect 6024N Instructions For Use Manual
Hide thumbs
Also See for advantage connect 6024N:
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Related Manuals for ADC advantage connect 6024N
Summary of Contents for ADC advantage connect 6024N
- Page 1 ® Home Featuring Connectivity Instructions for Use Models 6024N and 6025N This medical instrument must be used according to instructions to ensure accurate readings. Questions? Call ADC at 1-800-232-2670...
-
Page 2: Table Of Contents
Table of Contents A Special Thank You ...............3 Introduction and Intended Use ............4 Contraindications................4 Medical Disclaimer.................5 Symbol Definitions .................5 Warnings and Precautions ............6-8 What’s in the Box................9 Display Icons ................10 Setting Up Your Monitor..............11 Insert the Batteries..............11 Using the AC Power Adapter (Model 6025N Only) ......11 Set the Time and Date..............12 Connect the Cuff................12 Select the Measurement Mode and User ........13... -
Page 3: A Special Thank You
In hospitals and physician's offices throughout the world, where accuracy and dependability are critical, ADC professional diagnostic products are the in- struments of choice. Now you, too, can enjoy the benefits of ADC engineering and quality in the home. This instrument was designed to simplify the measurement of blood pressure... -
Page 4: Introduction And Intended Use
Other features include AM/PM readings, average mode, irregular heartbeat detection, and a Bluetooth radio to allow data to be stored on a smart phone or tablet equipped with ADC@Home software. Blood pressure readings are obtained during the inflation cycle (as the cuff pumps up), which allows for a slightly faster and much more comfortable measurement pro- cess. -
Page 5: Medical Disclaimer
The ADC@Home app is not intended for use in the diagnosis, cure, treatment, or prevention of disease. It is not intended for emergency use or real-time mon- itoring, nor as a substitute for medical care by a healthcare provider. ADC does not make, advise, or influence treatment decisions. Additional information and limitations are available on our website at www.adctoday.com/ADCatHome. -
Page 6: Warnings And Precautions
WARNING: Patient harm risk. The ADC@Home app should be used only by the patient for whom it is intended. Save only your own readings on your app. Saving readings that belong to someone else can cause inaccurate information to be sent to your physician, which could lead to improper treatment. - Page 7 WARNING: Do not take any therapeutic measures on the basis of a self- measurement. Never alter the dose of a medicine prescribed by a physician. Consult your physician if you have a question about your blood pressure. WARNING: Keep the unit out of reach of infants, children, or pets, since inhalation or swallowing of small parts can be dangerous or even fatal.
- Page 8 These can lead to temporary impairment of the measuring accuracy. CAUTION: The ADC@Home app is intended for use by patients using and linked to ADC-authorized devices. CAUTION: The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement.
-
Page 9: What's In The Box
What’s in the Box Blood Pressure Monitor Traffic Light LCD Display Indicator Cuff Connector Memory Port Button On/Off Button Button Blood Pressure Cuff Each model has its own cuff. 6024N: Extended wide range D-bar nylon cuff (850-6022N). Fits arm circumference from 22 cm to 42 cm (8.7 in to 16.5 in). -
Page 10: Display Icons
Display Icons User Stored Date/ AM/PM Date/ Number Value/ Time Indicator Time Memory Indicator Indicator Reading Value against Systolic Traffic Light Value Bluetooth Pairing Irregular Heartbeat Diastolic Detection Value Cuff Signal Indicator Pulse Rate Battery Strength Pulse Indicator Err 2 Err 3 Cuff Movement... -
Page 11: Setting Up Your Monitor
The Advantage Connect Model Plus (Model 6025N only) can be used with batteries or the included AC adapter. No power is taken from the batteries while the AC adapter is connected to the device. Use only the AC adapter provided by ADC. -
Page 12: Set The Time And Date
Set the Time and Date The device will prompt you to reset the date and time each time you replace the batteries. When the year is flashing... Year Press until you reach the current year Press to confirm Unit will accept the year and continue to month setting Repeat Steps 1 and 2 to enter current month, date, hour, and mi- nutes. -
Page 13: Select The Measurement Mode And User
Select the Measurement Mode and User This device has two measurement modes: Standard Mode: Takes a single measurement. MAM Advantage Takes three measurements and averages as a single reading. Average Mode: = Average Mode For more information on MAM Advantage Average Mode, see page 22. Flashes Press and hold for 5 seconds... -
Page 14: Using Your Monitor With A Smartphone Or Tablet
Using Your Monitor with a Smartphone or Tablet Advanced Bluetooth 4.2 technology allows you to pair your smartphone or tablet with our free ADC@Home app. Once paired, data from your monitor will be sent to the app automatically whenever you take a reading. You can then view, graph, annotate, and share reading with your physician or caregiver. -
Page 15: Pair Your Device
Pair Your Device Open the app and check that Bluetooth is on and discoverable On the blood pressure monitor Press and The Bluetooth icon will release flash on the monitor If prompted in the app, click Pair The Bluetooth icon will stop flashing when paired If the monitor is not able to pair within two minutes, Bluetooth will auto- matically turn off. -
Page 16: Preparing For A Measurement
Preparing for a Measurement Find time to relax by sitting in an armchair in a quiet atmosphere for about ten minutes before taking a measurement. Avoid eating and smoking as well as all forms of exertion directly before measurement. Measure on a bare arm, if possible. Always measure on the same arm (normally left). -
Page 17: 6025N: Fitting The Rigid Cuff
If the cuff provided with your unit is too big or small, please call 1-800-232-2670. Only use approved ADC cuffs. If using the ADC@Home app, open the app on your phone or tablet be- fore continuing to the measurement. -
Page 18: Taking A Measurement
Taking a Measurement If using the ADC@Home app, open the app on your phone or tablet be- fore starting the measurement. For information on setting up the app, see pages 14-15. Press and release The unit will turn on In about seven seconds,... -
Page 19: Stopping A Measurement
The monitor automatically attempts to send the reading to the ADC@Home app If you are connected to the app, the new data will appear on that screen in a few seconds If the monitor is not able to pair within two minutes, Bluetooth will disconnect and the device will turn off. -
Page 20: Using The Memory
Once the maximum memory capacity of 99 is reached, the next new reading will overwrite the oldest value currently in memory. This only affects readings that are stored on the monitor itself; data within the ADC@Home app is not impacted. Viewing Stored Readings Average of all stored... -
Page 21: Clearing The Memory
For more information on changing the user, see page 13. Press and hold for 5 seconds Press to confirm Clearing the memory only affects readings that are stored on the monitor itself; if you are using the ADC@Home app, data within the app is not impacted. -
Page 22: Mam Advantage Average Mode
MAM Advantage Average Mode In MAM Advantage Average Mode, three measurements are automatically taken in succession and the result calculated and displayed as a single, averaged reading. Averaged readings are more reliable than those from single measurements. For more information on turning Average Mode on and off, see page 13. -
Page 23: Irregular Heartbeat Detector
Irregular Heartbeat Detector The appearance of this icon means allorhythmia, or irregular, heartbeat was detected. If the symbol appears, then certain ab- normalities in heartbeat frequency were detected during the measurement. This indicator is only a caution. It is important that you are relaxed, remain still, and do not talk during measurement. -
Page 24: Traffic Light Indicator
Traffic Light Indicator The red, orange, yellow, and green bars along the left side of the display offer a visual representation of healthy and unhealthy blood pressure ranges. The scale and classifications are based on standards established by the American Heart Association and American College of Cardiology in 2017. -
Page 25: Performing Reliable Measurements
(i.e., too big or too small), please call 1-800-232-2670. Only use approved ADC cuffs. ADC cuffs have specially designed markings to promote the precise and accurate determination of blood pressure. Please review the section on fitting your cuff on pages 16-17. - Page 26 A loose cuff or a sideways protruding air pocket causes false measurements. Ensure that cuff is properly applied. With repeated measurements, blood accumulates in the arm, which can lead to false results. Consecutive measurements in average mode are repeated with a 15-second pause between readings.
-
Page 27: Error Messages And Troubleshooting
Error Messages and Troubleshooting If an error occurs during a measurement, the measurement is interrupted, and a corresponding error code is displayed, example <Err 3>. Error No. Description Possible cause(s) / Solutions Err 1 Signal too weak The pulse signals on the cuff are too weak. Reposition the cuff and repeat the measurement. - Page 28 If you experience technical malfunctions with the monitor, contact the dealer where you bought the device or ADC. Never attempt to repair the in- strument yourself! Unauthorized opening invalidates the warranty.
-
Page 29: Care And Maintenance
Care and Maintenance □ Clean the monitor only when necessary. Use a soft, dry cloth with a 70% isopropyl alcohol solution or a 10% chlorine bleach/90% water solution (e.g., standard bleach wipe). □ Spots on the cuff can be removed carefully with a damp cloth and soapsuds. -
Page 30: Technical Specifications
Technical Specifications Display: LCD (Liquid Crystal Display) Weight: 270.5 ±5g (including batteries) Dimensions: 4.7" (W) x 3.5" (L) x 2.4" (H) (12cm x 9cm x 6cm) device 6.5" (W) x 4.13" (L) x 4.13" (H) (16.5cm x 10.50cm x 10.50cm) packaged Operating conditions: 50°F to 104°F (10°C to 40°C) 15 to 90% relative maximum humidity... -
Page 31: Warranty
The warranty is only valid after the pro- duct is registered online at www.adctoday.com/support/warranty-registration. Terms and Conditions Use of the ADC@Home app is governed by the Terms and Conditions available in the app and on our web site at www.adctoday.com/ADCatHome. Quality Standards This device is manufactured to meet the European and United States standards for non-invasive blood pressure monitors: EN 1060-3/-4;... - Page 32 Distributed by: ADC Onbo Electronic (Shenzhen) Co., Ltd. 55 Commerce Drive No. 138 Huasheng Road Hauppauge, NY 11788 Langkou Community, Dalang Street U.S.A. Longhua District, Shenzhen, China Inspected in the U.S.A. Microlife UAB Made in China Lukšio g. 32 tel: 631-273-9600, 1-800-232-2670...
