Summary of Contents for Cicada Audio CH Series

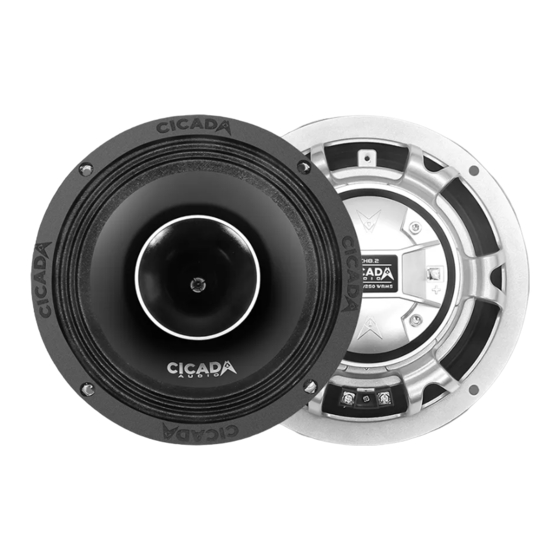

- Page 1 CH SERIES High Performance Full-Range Co-Axial HORN SpeakerS CH65.4 / CH65.2 / CH69.4 CH69.2CH8.4 / CH8.2...
- Page 2 Cicada Audio recommends our products be professionally installed by an authorized Cicada Audio dealer to achieve the test possible system recommendation and installation. This will ensure a true Cicada Audio listening experience and sound you would expect from Cicada Audio products. In doing this you will extend your warranty from one year to two years.
-
Page 3: Dimensions & Specifications
DIMENSIONS / SPECIFICATIONS CICADA AUDIO PRO COAX HORN DRIVERS The LATEST AND GREATEST series of CoAx Horn drivers features and specifications are on the next few pages. Makes sure to read this manual thoughly and get to know your drivers and the many applications and possible set up scenarios available to you. - Page 4 (NOTE: 2 of these are included with each pair of CoAx Horns) OUTPUT TO CH SERIES COAX HORN TWEETER INPUT FROM HD WIRING HARNESS OUTPUT TO CH SERIES COAX MIDBASS ENDVIEW 1.25” / 32mm 3.9” / 100.0mm 2021 Cicada Audio All rights reserved.
-
Page 5: Installation
Installing the Speakers Your new Cicada Audio CH series speakers were designed with the flexibility to be installed in multiple Locations. However, to ensure the best performance possible, it is important to isolate the front sound waves of the speaker from its rear sound waves. - Page 6 TYPICAL “FULLY ACTIVE” SYSTEM CH SERIES COAX HORN SPEAKER RUNNING ALL ACTIVE 12dB SLOPES @ 4KHz CH series COAX HORN drivers can be “Bi-Amped” Or what is HIGH AND LOW PASS FILTER(THRU DSP) commonly called FULLY active system setup. In the system shown...
- Page 7 SPEAKER CH65.4 / CH65.2 CH65.4 / CH65.2 DSP125.4D CROSSLINK HD HARNESS / POWER WIRING KIT - OPTIONAL CABLE (OUR HDPro4 BAGGER KIT) CH69.4 / CH69.2 CH69.4 / CH69.2 LEFT REAR RIGHT REAR SPEAKER SPEAKER 2021 Cicada Audio All rights reserved.
-
Page 8: Detailed Wiring Diagram
DETAILED WIRING DIAGRAM Here is a detailed wiring connection drawing for the CH series COAX HORN drivers. We’re tried to make it as simple and straight forward as possible so that it is literally a “plug and play” situation. HORN TWEETER CONNECTION 1. - Page 9 TO MAKE SURE THE TWEETER IS DEAD, DEAD AND DEAD!! BEFORE REMOVING IT FROM THE MAGENT STRUCTURE MAKE SURE YOUR ORDERED THE CHT14 - CH SERIES DIAPHRAGM KIT THEN...FIRST THINGS FIRST: The Back cover needs to be removed. These are 5 mm HEX machine screws.
-
Page 10: Special Note
TOO bright. Put one in line with each of the the crossovers OUTPUT. That will attenuate the tweeter about 3dB. If that sounds good to you, leave it there. ..Otherwise ignore this Public Service Message!! 2021 Cicada Audio All rights reserved. -
Page 11: Physical Dimensions
Sd (cm 13.685 21.124 22.96 BL (T*M) 7.92 6.09 6.679 Xmax (mm) Pwr (W) NOM/MAX 500/**1000 500/**1000 500/**1000 **Power ratings are per PAIR with a Hi-pass filter (electronic for passive) @100Hz - 12 dB Octave 2021 Cicada Audio All rights reserved. - Page 12 RTA CURVES FOR THE THOSE WHO WANT TO KNOW!!! These are REAL frequency response curves of our CICADA AUDIO CoAx Horn Pro drivers. Typically full range drivers sensitivity is measured full spectrum from 300Hz to 3kHz +/- 3dB (EIA standard) and “averaged”. As you can see on the RTA curves these speakers average in the high 90dB range with peaks over 110dB CICADA AUDIO CH65.4 / CH65.2...
- Page 13 LIMITED SPEAKER WARRANTY STATEMENT: Cicada Audio warrants this product to be free of defects and quality workmanship for a period of one (1) year from the original date of purchase. A receipt from an authorized Cicada Audio dealer is required for warranty claim.
