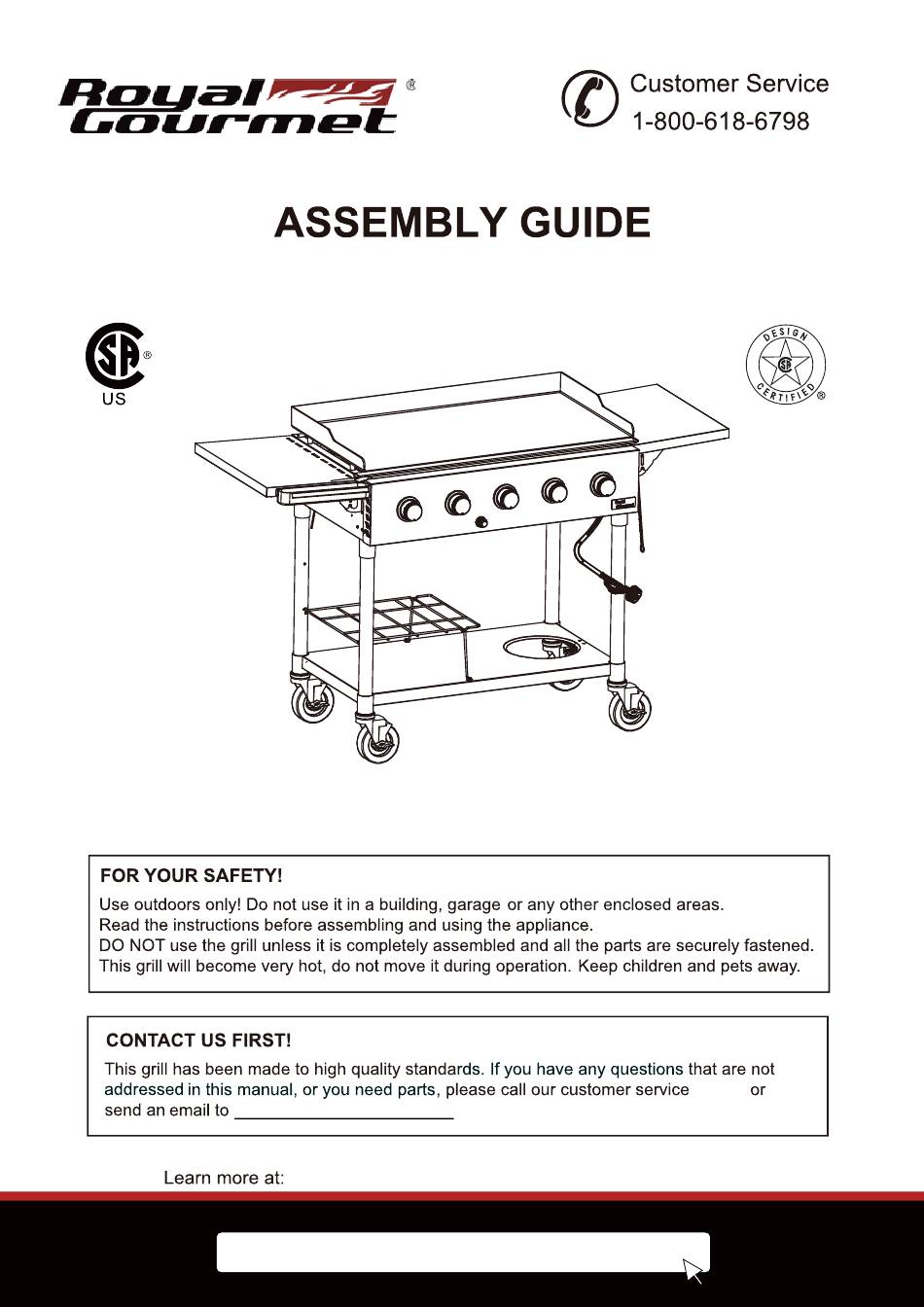

- Page 1 Model: GB5000S Deluxe 5-Burner Stainless Steel Gas Griddle hotline service@royalgourmetusa.com www.royalgourmetcorp.com...
- Page 3 Side table joint Caster Left leg Side table brace (LF/LB) Right leg Wire Rack (RF/RB) Bottom shelf Holder Main body Grease cup Side table(R) Cooking griddle Side table(L) Thermal baffle Side table joint Side table brace Allen Key 1 pc M6x12 20pcs M8x8...
- Page 5 IMAGE 1 IMAGE 2 Insert the caster(1) to leg (2), hold the caster still, Insert the bottom shelf(4) to legs, fix it with 4 twist the leg clockwise until fixed. Then hold the bolts (C) using the allen key (A). leg still, twist the caster anti-clockwise until fixed.
- Page 6 8,10 main body 8,10 right...
- Page 7 left Place the giddle (15) onto the main body. Install the thermal baffle (16) underneath the main body with 4 bolts (G). (14) on the left side table. Insert ends of wire rack (12) into holes on left legs, and fix by 2 split pins (F), pass holder (13) through bottom of two middle wires of the wire rack, and insert holder ends into bottom shelf brackets.
