Summary of Contents for TCL Sweeva 1000

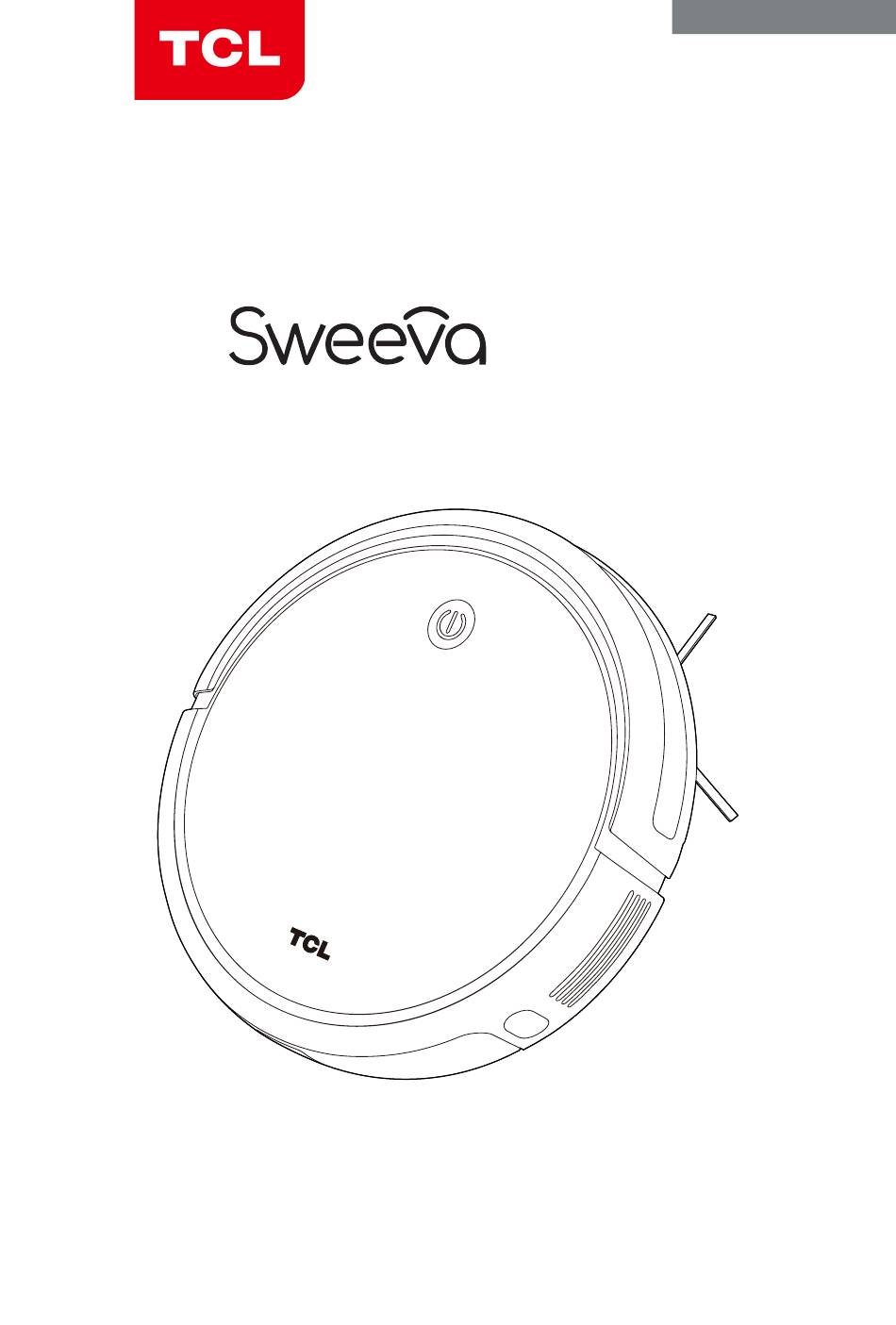

- Page 1 EN/DE/ES/FR/IT Robot Vacuum User Manual 1000 Please read this manual carefully before using this product and keep it for later use...
-
Page 3: Table Of Contents
Sweeva1000 Robot vacuum Catalogue ......... 01 1. Production description........2. -
Page 4: Production Description
1.Product description Robot Vacuum Start button/indicator Forward collision bumper Anti-collision sensor Wall sensor Air outlet Dustbin box Bottom of Robot Vacuum Anti-drop sensor Omni-direction wheel Charging contacts Side brush Battery door Wheel door Right wheel Left wheel Roller brush Power button Roller brush Frame Charging base Power indicator... -
Page 5: Packaging List
2. Packaging list Robot vacuum X 1 Charging base X 1 Power adapter X 1 Additional filter X 1 Cleaning knife X 1 Side brushes X 4 AAA Battery X 2 User manual and Remote control X 1 other document X 1 - 03 -... -
Page 6: Safety Instructions
3. Safety instructions The following precautions guide users on how to use the product safely and correctly to avoid the risk of injury or damage. Basic precautions After reading this manual, please keep it in an easily accessible place. ◆ This symbol is a warning symbo This symbol warns you of potential hazards that may cause property damage or serious injury or death. - Page 7 ◆ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 8: Product Use
4. Product use Important Tips Before Use Remove power cords and small objects from the floor that may entangle Robot Vacuum. Fold tasseled edges of area rugs underneath to prevent tangling Robot Vacuum. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in / 26 mm as they may cause Robot Vacuum to malfunction. - Page 9 4.Remove objects within 3ft/1m of the left and right side and within 6ft/2m of the front of the charging base. Do not face the charging base owards strong light or high magnetic fields. (e.g. , television, refrigerator and other home appliances) 5.Connect the round connector of the adapter into the power socket on the charging base and the charging base and the other end into a wall outlet.
- Page 10 ◆ Method 2: Press the charging button on the remote control to return robot vacuum to the Charging Base. ◆ Method 3:Press and hold the start button on the machine for 3 seconds to return it to the charging base. Turn off...
- Page 11 Key indicator status description Normal power, can enter working mode/standby mode as Blue required Error warning Error warning Red flashes In low battery stat at working mode/standby mode/return to Orange charging base Orange flashes The appliance is charging Error Tones and Indicators Status Buzzer alarm Action...
- Page 12 How to use the remote control How to use the remote control 2.Before using the remote, 1.Use two AAA battery for the 3.Short press the Start Button please set the clock time to remote control. The battery to start cleaning. be your local time zone.
-
Page 13: Maintenance/Replacing Consumables
5. Maintenance/replacing consumables ◆ 1. Cleaning of dustbin and filter net (filter net is replaceable) Please power off the power before maintenance Note: Please turn off the power (bottom rocker switch)of the robot before product maintenance /replacing consumables. The suction power may become weak if the dustbin is full. The dustbin needs to be cleaned before and after each cleaning. - Page 14 ⑦ After closing the upper cover, push the dustbin into the main machine (make sure the dustbin is fully inserted until it buckles into the right place). ◆ 2. Cleaning of roller brush (roller brush are replaceable) Foreign substances such as hair is easy to adhere to roller brushes. Roller brush may be damaged if there is too much foreign substances on them.
-
Page 15: Maintenance And Replacement Frequency
Once a month Charging contact Once a month Once a month Omni-direction wheel Note: Sweeva has many different spare parts and components. Please purchase spare parts through the “TCL Home” App or by visiting TCL’s offline or online stores. - 13 -... -
Page 16: Troubleshooting
7. Troubleshooting Failure description Solutions Low battery voltage Charge the robot manually Roller brush is not spinning Remove hair and foreign substances on the roller brush. Remove hair and foreign substances on the side brush. Side brush is not spinning Confirm whether the robot is fully charged. - Page 17 TCL OVERSEAS MARKETING LIMITED Please read this manual carefully before using this product and keep it for later use Sweeva1000EN/DE/ES/FR/IT-V03...
