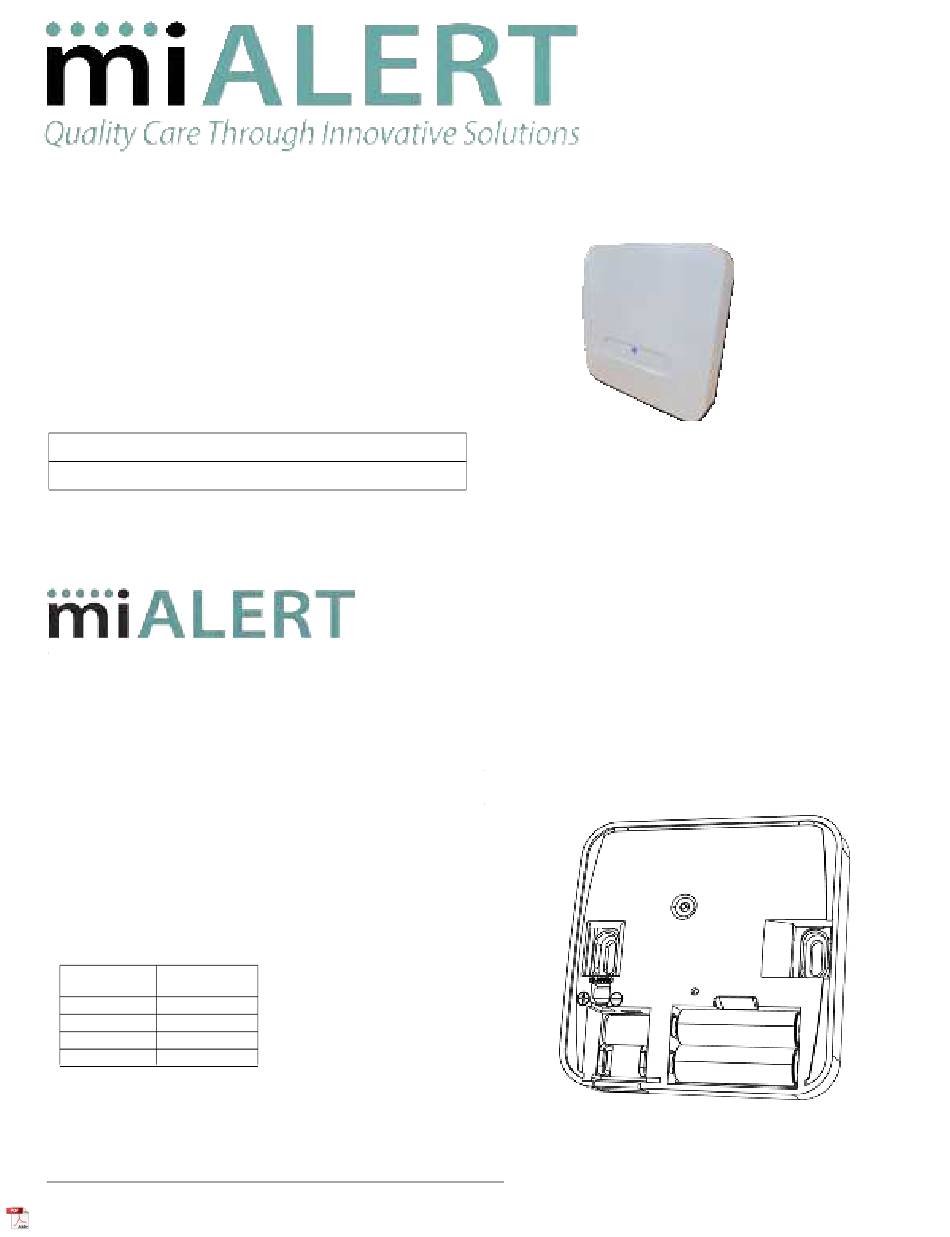

miAlert miPos2 Installation And Operation Manual

miPos2 Repeater
Installation and Operation Manual

1 Overview

The miPositon BTLE Repeater offers advanced functionality for
determining the location of a Pendant or Asset Tag withing a range
of 15 meters (45 feet) with a linear RSSI reading for determining
distance from Repeater. A Three Radio arrays - Bluetooth for
miPosition - LR 2.4Ghz for Emergency TX/RX - LoRa 915MHz for
Gateway Communications TX/RX. Also support up to 48 hours of
battery backup in the event of loss of main power.
Part # Check-In
miPos2 Repeater 60 minutes
Note: For UL 2560 installations, refer to the miPosition Gateway
Installation Instructions

1.a miAlert Contact Information

www.mialert.com
Toll Free: 855-382-8999
Email: support@mialert.com
27 Armthorpe Rd, Brampton, L6T 5M4
If you have any problems with this procedure, contact miAlert technical
services:
• Email: support@mialert.com
• Toll Free: 855-382-8999
1.b Maximum Number of Repeaters for a UL 2560
Installation
To achieve the 99.99% alarm message reliability required for UL 2560
compliance, system installations must operate within the following limits for
end device and repeater counts.
End Devices Maximum
Repeaters
128 256
256 512
512 1028
1028 1028
miAlert 2021 - www.miAlert.com
Location Wearable
Pendant & Tag
North America

1.c Repeater Components

C
A
B
D
Figure 1
A
Repeater Tamper Switch
B
LED status for Alarm condition and signaling
C
Installation configuration and Firmware update
button when cover is removed
D
Battery slots for housing two 3.6VDC batteries to
provide up to 48 Hrs of back-up

2.a Installation and Startup a Installation Notes

• These products are designed to be maintained by certified
technicians.
• Products are intended for indoor use, if installing them outdoors
they must be housed in a water resistant plastic enclosure.
• Repeater can be powered by 12-24VDC local or centralized power
supply, centralized power is recommended if installation requires
more than 48 of battery back-up.
• Repeater is shipped with two 3.6VDC custom lithium AA cell not
installed. Battery are for battery back-up use only.
• All products should be manually tested monthly. "Test the
Transmitter/Receiver section".
12-24VDC
POWER
Figure 2
TWO 3.6 VDC
CUSTOM
BATTERIES
