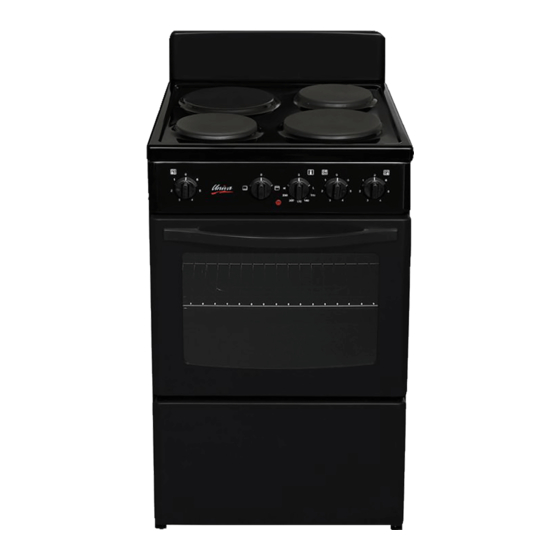

- Page 1 5615100-C/2021 V1.0 Electrical Freestanding Stove -Instruction Manual - IN ORDER TO OBTAIN THE GREATEST SATISFACTION FROM YOUR COOKWARE APPLIANCE, IT IS RECOMMENDED YOU READ THE INSTRUCTIONS CAREFULLY. This manual is made with 100% recycled paper...
-
Page 2: Table Of Contents
INTRODUCTION Dear Customer： Thank you for buying a quality Univa Electric Stove, designed to give years of safe, convenient, economical and trouble-free cooking and baking. To ensure that you get the best performance from your superb quality stove, please read this instruction manual carefully. Familiarize yourself with the information as it contains “How to use and take care of your stove”, together with... -
Page 3: Safety Warnings
SAFETY AND WARNINGS The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless it is done under the supervision of a responsible adult. Do not allow children to play or tamper with the appliance. During use the appliance becomes hot. -
Page 4: Unpacking
UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All packaging materials used for the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. -
Page 5: Connection To The Power Supply
CONNECTION TO THE POWER SUPPLY This appliance has a ‘Y’ type supply cord connection and must be installed by a licensed Electrician, who will ensure that the stove is correctly connected and safely earthed. After installation, inspect the unit to make sure all connections are secured and professionally installed and tightened. -
Page 6: Installation
Electrical installation (Model U305-1 only) Insert the plug into a 230V 16A, earthed wall socket. The stove is a plug-in model with a 16A power supply. It is therefore not possible to use all the plates and oven at the same time. - Page 7 Anti-Tilt mechanism (Stabilizing bracket) – For 500mm range stoves only Safety regulations stipulate that the Anti-Tilt mechanism supplied with the stove, must be installed as shown. IMPORTANT: The instructions below are only relevant to the 500mm-range stoves. “A” 1 x Anti-Tilt chain. ...
- Page 8 SPLASHBACK MOUNTING FOR 500mm RANGE AND U106 STOVES: To install the rear splash back, slide the lugs on the bottom of the panel. Align the splash back with the hole at the back of the stove and secure with screws. INSTALL OVEN RACK: Oven rack...
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS CONTROL KNOBS ON THE STOVES: 1. Temperature control knob 2. Oven function selection knob 3. Oven indicator light 4. Ringer Timer (U116) or Warmer drawer switch (U126) 5. Plate selector 6. Plate in use indicator light (600mm Range only) USING HEATING (solid) PLATES: Turn corresponding knob for selected plate clockwise, the plate indicator light will show the plate is on (600mm Range only). - Page 10 NOTE THE FOLLOWING: At first use, switch on the hot plate at position 3 for 5 minutes, to burn off the excess protection material. Use a flat pan with the same base diameter as the plate. Do not put anything between hot plate and pan. ...
- Page 11 USING OVEN: The following symbols are indicated on the oven, depending on the model. Oven Light- stays on when oven is in use. (Optional) Grill – Thermostatically controlled grilling. Preheat – Reduces oven heat-up time. Remember to select “bake” when the selected temperature has been reached.
- Page 12 When the grill is in use, accessible parts can become hot - Keep children away from the oven. For Plug-in Model U305-1 All three plates will function provided the bake or grill function for the oven is NOT selected. (See Page 6) ...
- Page 13 During this time avoid touching the cooking zone and take precautions to ensure children cannot touch the cooking zone. NOTE THE FOLLOWING: Before switching on, check which knob controls the desired cooking zone. It is best to place the pot or pan on the cooking zone before switching on, and remove it only after switching off.
-
Page 14: How To Save Energy
HOW TO SAVE ENERGY Using energy in a responsible way, not only saves money but also helps the environment. Save energy! This is how you can do it: Use proper pans for cooking. Pans with thick, flat bases can save up to 33% on electric energy. Remember to cover pans with a lid if possible, otherwise you will use four times as much energy! ... -
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE Adequate cleaning and regular maintenance of the stove can have a significant influence on the continuing fault free operation of the appliance. WARNING! Before cleaning, the stove must be switched off and all knobs must be set to the “0” position. Do not start cleaning until the oven has completely cooled. - Page 16 CLEANING THE HOB PLATES For light soiling and everyday cleaning simply wipe with a moist cloth. For dirty hotplates use a commercial cleaner. Be careful to completely remove the cleaner and dry the hotplate by running the element for a short time.
- Page 17 CLEANING THE KNOBS AND CONTROL PANELS As these are specially designed and easy to clean, wipe with a damp cloth only. HOW TO REMOVE THE OVEN DOOR To obtain easier access to the oven cavity for cleaning, it is possible to remove the door.
- Page 18 HOW TO REPLACE THE OVEN LAMP (600mm Range only) WARNING! Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. LAMP SPECIFICATION -Voltage: AC 220-240V/50Hz -Wattage: 25W -Type: E 14 Resistant to high temperatures (300°C) Replacement lamps are available from service technician.
-
Page 19: Troubleshooting
TROUBLESHOOTING If you cannot find an answer to the problem in the chart below, or if the problem cannot be fixed, technical help is needed. Contact Customer Care! PROBLEM POSSIBLE CAUSE WHAT TO DO Check that the stove is connected to the power The oven or hob is not supply and the power is heating and the... -
Page 20: Specifications
SPECIFICATIONS 500MM RANGE - FREESTANDING STOVES U305-1 U405-1 DIMENSIONS -Height (mm) 1007 1007 -Height to the Cooking Top (mm) -Width (mm) -Depth (mm) -Weight (kg) 34.8 36.3 PLATE -1000W Solid Plates -1500W Solid Plates -6 Position Control Switch OVEN - Energy Rated... - Page 21 600MM RANGE - FREESTANDING STOVES U106B U116B U126B U126CB DIMENSIONS -Height (mm) 1045 1215 1215 1215 -Height to the Cooking Top (mm) -Width (mm) -Depth (mm) -Weight (kg) 48.9 51.7 52.6 52.9 PLATE -1000W Solid Plates -1500W Solid Plates -2000W Solid Plates -1200W Radiant Plates -1800W Radiant Plates OVEN...
-
Page 22: Univa Guarantee
Univa shall not be liable for any loss or damage suffered by the customer or any other party or caused to the appliance arising from negligent use. - Page 23 Univa authorized service agent or if no fault or defects are found in the appliance, a Univa authorized service agent shall be entitled to charge for the work done and travelling expenses incurred.
- Page 24 Howick Mews, Waterfall Park, Bekker Road, Vorna Valley, Midrand, Gauteng, South Africa P.O. Box 1482, Halfway House, Gauteng, 1685 Sales & Marketing Tel: +27 11 315 0015 Email: sales@univa.co.za Customer Care: Tel: +27 11 315 0015 Email: support@univa.co.za www.univa.co.za...
