Summary of Contents for Univa 500 Series

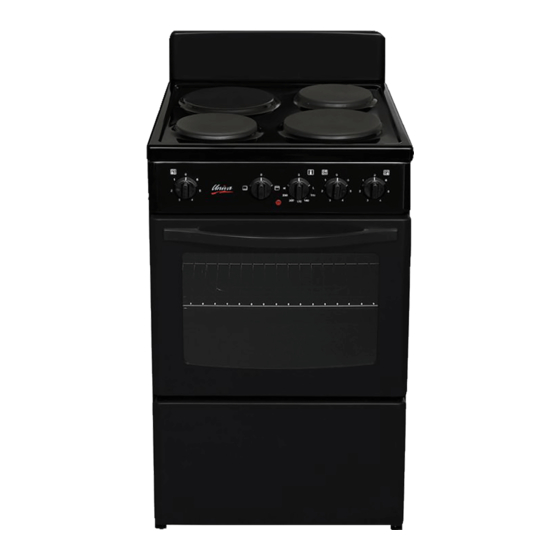

- Page 1 5615100-B Electrical Freestanding Stove -Instruction Manual - IN ORDER TO OBTAIN THE GREATEST SATISFACTION FROM YOUR COOKWARE APPLIANCE, IT IS RECOMMENDED YOU READ THE INSTRUCTIONS CAREFULLY.
-
Page 2: Table Of Contents
INTRODUCTION Dear Customer; Thank you for buying a quality Univa Electric Stove, designed to give years of safe, convenient, economical and trouble-free cooking and baking. To ensure that you get the best performance from your superb quality stove, please read this instruction manual carefully. Familiarize yourself with the information as it contains “How to use and take care of your stove”, together with other useful hints. -
Page 3: A- Safety Instructions
A- SAFETY INSTRUCTION The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless it is done under the supervision of a responsible adult. Do not allow children to play or tamper with the appliance. During use the appliances becomes hot. -
Page 4: B- Connection To The Power Supply
B- CONNECTION TO THE POWER SUPPLY This appliance has a ‘Y’ type supply cord connection and must be installed by a licensed Electrician, who will ensure that the stove is correctly connected and safely earthed. After installation, inspect the unit to make sure all connections are secured and properly installed/tightened. -
Page 5: C- Installation
C- INSTALLATION Free-standing stoves must be positioned firm and placed at least 25mm from the wall. Anti-Tilt mechanism (Stabilizing bracket) – For 500mm range stoves only Safety regulations stipulate that the Anti-Tilt mechanism supplied with the stove, must be fixed as shown. IMPORTANT: The instructions below are only relevant to the 500mm-range stoves. -
Page 6: D- Operating Instructions
The stove is secured and will not accidentally tilt if downward pressure is applied to the open oven door. D- OPERATING INSTRUCTIONS 1) Identify the control switch for a particular plate by looking at the easy-to-use indicator on the control panel. 2) Start by setting the control switch to 6 and reduce the heat when the content boils. - Page 7 For Plug-in Model U305/U305-1 All three plates will function provided the bake or grill function for the oven is NOT • selected. If either the bake or grill is selected the large plate is automatically switched off. • The oven will either bake or grill depending on your selection but will not bake and •...
- Page 8 • Plates may be wiped with a thin layer of cooking oil after use to prevent rusting. (Kindly contact your nearest dealer for further information) For 600mm Ceramic Hob Only RESIDUAL HEAT INDICATOR (HOT SURFACE INDICATOR) Each heating element has a corresponding residual heat indicator light. This light switches on automatically when the temperature of the corresponding cooking zone exceeds 60℃.
-
Page 9: E- Storage Drawer (Where Fitted)
It also helps save energy as it shows which cooking zones have enough residual heat left for further cooking at a low temperature or to keep a dish warm Do not use the cooktop if the surface is broken or damaged ... -
Page 10: F- Splashback Mounting
F- SPLASHBACK MOUNTING G- HOW TO INSTALL OVEN RACK... - Page 11 H- GENERAL HINTS & CLEANING NOTES 1. Before cleaning or repairing your stove, remember to switch off the electric appliance at the mains switch. 2. Set oven Rotary Selector switch and all heating plate switches to “0” position when the stove is not in use. 3.
- Page 12 Repeat this treatment immediately after each plate has been used during • the first four weeks after purchase. It is important that this should be done while the plate is still warm as the heat carbonizes the oil. • If this is repeated frequently for each cooking plate, the pores of the metal become filled by carbonized oil, thus sealing the surface of the plate against the ingress of moisture or any corrosives such as salt and acid solutions.
-
Page 13: I- Useful Hints
I - USEFUL HINTS I- SPECIFICATIONS... -
Page 14: J- Conversion Table
J - CONVERSION TABLES... -
Page 15: K- Specifications
K - SPECIFICATIONS SPECIFICATIONS---500 RANGE FREESTANDING STOVE U305-1B U405-1B DIMENSIONS -Height (mm) 1007 1007 -Height to the Cooking Top (mm) -Width (mm) -Depth (mm) -Weight (kg) PLATE -1000W Solid Plates -1500W Solid Plates -6 Position Control Switch OVEN -Oven Capacity Gross (L) -Oven Capacity Nett (L) 51.3 51.3... - Page 16 SPECIFICATIONS---600 RANGE FREESTANDING STOVE U116B U116W U126B U126W U126CB DIMENSIONS -Height (mm) 1215 1215 1215 1215 1215 -Height to the Cooking Top (mm) -Width (mm) -Depth (mm) -Weight (kg) 53.8 53.8 56.4 56.4 57.0 PLATE -1000W Solid Plates -1500W Solid Plates -1000W Spiral Plates -2000W Solid Plates -1200W Radiant Plates...
- Page 17 SPECIFICATIONS---600 RANGE FREESTANDING STOVE U116B U116W U126B U126W U126CB DRAWER -Utility Drawer • • -Warmer Drawer 450W • • • COLOR -Black • • • -White • • OTHERS -Cable Stove • • • • • -Timer • • -Ceramic Hob •...
-
Page 18: L- Univa Guarantee
50 km. 5. The liability of Univa shall be limited in respect of defective parts or material or in respect of defective workmanship only. Univa authorized service agent shall have... - Page 19 Univa authorized service agent or if no fault or defects are found in the appliance, a Univa authorized service agent shall be entitled to charge for the work done and travelling expenses incurred.
- Page 20 Howick Mews, Waterfall Park, Bekker Road, Vorna Valley, Midrand, Gauteng, South Africa P.O. Box 1482, Halfway House, Gauteng, 1685 Sales & Marketing Tel: +27 11 315 0015 Email: sales@univa.co.za Service & Spares: Tel: +27 11 315 0015 Email: support@univa.co.za www.univa.co.za...
