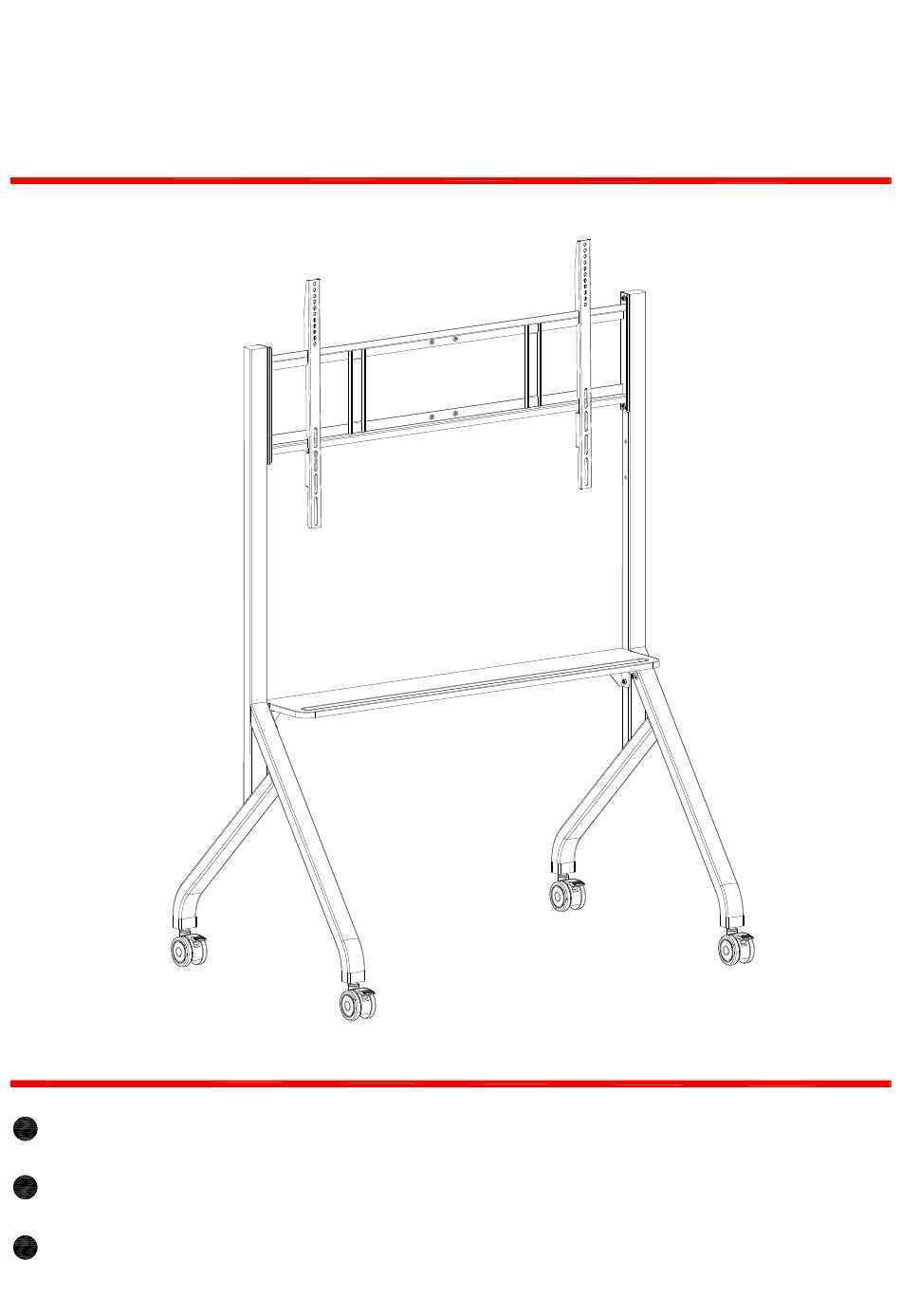

- Page 1 WH3310 Installation Manual Model：WH3310 To use the product safely and correctly, please read this manual carefully before installation. This product is suitable for 55-86 inch interactive display. The maximum capacity of this cart is 100 Kg.
-
Page 2: Main Parts
Main Parts: D-wall plate 1pc B-right column 1pc A-left column 1pc E-bracket 2pcs F-4 inch wheels 4pcs C-tray 1pc Spare parts Washer Screw Screw Screw 4pcs 12pcs 4pcs 4pcs Spanner Cross screwdriver Washer Spring washer 4pcs 4pcs... - Page 3 Step 1: Adjust the wheels to the braking state, and then screw the four wheels onto the left and right columns. (Figure 1) Before installing the wheel, adjust it to the brake state. Figure 1 Step 2 There are 3 combinations of installation holes in the wall plate. Choose the combination you need. Turn a screw (a) into the lower hole of the combination in advance.
- Page 4 Step 3: Turn a screw (a) into the hole as shown in Figure 3 in advance, do not lock and reserve a distance of 8mm. Then hang up the tray and lock all six screws (a). Reserve 8mm Figure 3 Step 4: As shown in Figure 4, lay the conference screen flat, and select the appropriate screw to connect the bracket with the screen.
- Page 5 Warm Tips: When selecting the bottom group of holes on the column, the distance from the bottom group of holes on the bracket to the tray is shown as the figure below. Please pay attention to the size of your screen and ensure that the lower end of the screen does not interfere with the tray. Step 5: Install the interactive display with the bracket on the wall plate, ensure that the hook is hung on the border of the wall plate, and then lock the safety screw on the bracket.
- Page 6 Step 6: The effect after installation is as follow Figure 6...
