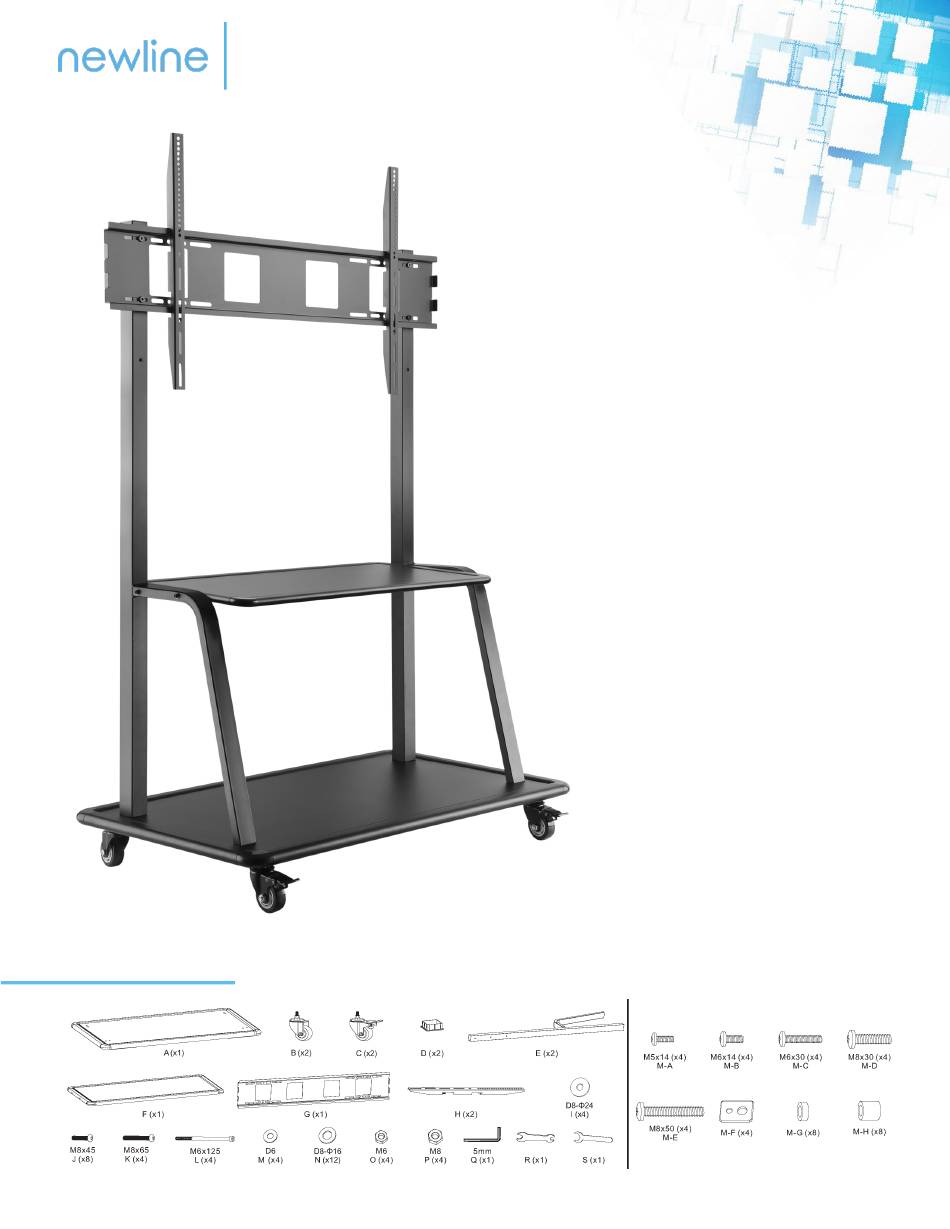

Assembly Parts
Mobile Stand Assembly
Please read the entire instruction manual before
you start installation and assembly. If you have
any questions regarding any of the instructions or
warnings, please contact your local distributor for
assistance.
CAUTION: Use with products heavier than the
rated weights indicated may result in instability
causing possible injury.
• Mounts must be attached as specified in
assembly instructions, improper installation may
result in damage or serious personal injury.
• Safety gear and proper tools must be used.
This product should only be installed by
professionals.
• Make sure that the supporting surface will safely
support the combined weight of the equipment
and all attached hardware and components.
• Use the mounting screws provided and DO NOT
OVER TIGHTEN mounting screws.
• This product contains small items that could be
a choking hazard if swallowed. Keep these items
away from children.
• This product is intended for indoor use only.
Using this product outdoors could lead to
product failure and personal injury.
IMPORTANT: Ensure that you have received all
parts according to the component checklist prior
to installation. If any parts are missing or faulty,
telephone your local distributor for a replacement.
MAINTENANCE: Check that the bracket is secure
and safe to use at regular intervals (at least every 3
months).

Advertisement

loading
Need help?

Need help?

Do you have a question about the EPR8A50500-SQR and is the answer not in the manual?

Questions and answers

Summary of Contents for NewLine EPR8A50500-SQR

  • Page 1 Mobile Stand Assembly Please read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
  • Page 2 Mobile Stand Assembly Step One Each caster can be adjusted independently for fine tuning Slightly turn the nut to lower or raise the base. Step Two Step Three...
  • Page 3 Mobile Stand Assembly Step Four Step Five Step Six...
  • Page 4 Mobile Stand Assembly Step Seven Step Seven Contact Us Still need additional assistance? Contact our Technical Support Team at 833-469-9520, ext 5000 or support@newline-interactive.com.
