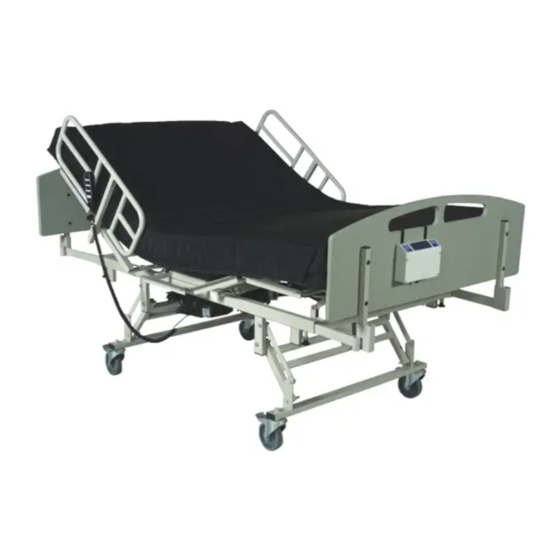

BARIATRIC HOMECARE BED
Models: 5639 and 5648
Owner's Operation Manual
ConvaQuip Ind., Inc.
P.O. Box 3417
Abilene, TX 79604
PHONE (800)-637-8436

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5639 and is the answer not in the manual?

Questions and answers

Related Manuals for ConvaQuip 5639

Summary of Contents for ConvaQuip 5639

  • Page 1 ConvaQuip BARIATRIC HOMECARE BED Models: 5639 and 5648 Owner’s Operation Manual ConvaQuip Ind., Inc. P.O. Box 3417 Abilene, TX 79604 PHONE (800)-637-8436...

  • Page 2: Table Of Contents

    BARIATRIC HOMECARE BED Contents PARTS LOCATOR SAFETY NOTES (WARNINGS AND CAUTIONS) - WEIGHT LIMIT - POWER REQUIREMENTS INTENDED USE & PRODUCT DESCRIPTION FUNCTION & BASIC OPERATION SETUP INSTRUCTIONS ASSEMBLY INSTRUCTIONS OPERATING THE BED ACTUATORS, CONTROL & HANDSET DIAGNOSTIC & REPAIR CLEANING &...

  • Page 3: Parts Locator

    BARIATRIC HOMECARE BED Parts Locator Head Board Siderail Back Rest Leg Lift Foot Board Brake Caster Siderail Release Pin Lift Handle Steering Caster I.V. Socket Pinch points Keep fingers, arms, legs, and objects clear of bed when any mechanism is in motion. Make sure all persons and objects are clear of the bed when raising or lowering.

  • Page 4: Safety Notes (Warnings And Cautions)

    BARIATRIC HOMECARE BED Safety Notes   Always raise the side rails whenever the patient is lying on the bed in the  supine position.  Always raise the side rails whenever the patient is lying on the bed in the supine position Always lock all casters and align parallel to the patient before use.(see pg 2) Take special care to lock the casters securely when reclining or inclining the...

  • Page 5: Weight Limit

    Do not use a bed with any missing or damaged parts Never disassemble your Bariatric bed. If problems are found, contact ConvaQuip customer service at 1-800-637-8436 or your local authorized ConvaQuip dealer.
  • Page 6 BARIATRIC HOMECARE BED  3-Function Homecare Beds are designed for bariatric patients. The bed is ideal for long term use in the home or nursing care centers. It is intended for all age groups with varying medical and physical conditions. Total weight capacity of the bed is shown on page 14. THREE 3-FUNCTIONS 1) Raise and lower head 2) Lift and lower leg and foot section...
  • Page 7 BARIATRIC HOMECARE BED  The Three-Function Homecare Bed has electric drive actuators to operate the back rest, the leg lift, and to raise and lower the bed. To control the positioning on these beds use the 6-button, 3-function handset. HEAD UP and HEAD DOWN buttons raise and lower backrest (head end)

  • Page 8: Setup Instructions

    BARIATRIC HOMECARE BED Setup instructions for Split Frame Beds  To Assemble: Step 1. Lock head & foot end casters parallel to frame & oriented as shown. Step 2. Move bed into position as shown and hook foot end frame over head end frame round bar.
  • Page 9 BARIATRIC HOMECARE BED  To Disassemble: Step 1. Completely lower bed and all bed sections. Step 2. Lock head & foot end casters parallel to frame & oriented as show. Step 3. Remove quick release pins on both sides of frame. Step 1 &...
  • Page 10 Position the side rails, be sure they slide up and down properly When you are satisfied that the bed is operating properly, instruct all personnel who may be involved in the bed operation. If problems are found, contact ConvaQuip customer service at 800-637-8436 or your authorized ConvaQuip dealer.

  • Page 11: Operating The Bed

    BARIATRIC HOMECARE BED Operating the bed Steering the bed The bed can be steered in two modes, with the steering locked or with all four casters able to move independently. The two casters on the foot end are the “steer” control type. (page 2) Foot end: Using the steering lock function The steering lock function allows you to easily steer the bed in a straight line.
  • Page 12 BARIATRIC HOMECARE BED Operating the bed Upright Back Position The Backrest stops at any angle between 0 degrees (horizontal) position and an upright position of about 50 degrees. Warning Before operating the backrest always ensure that casters are locked. Otherwise an accident or injury may occur. SIDERAIL ADJUSTMENT Head end side rails are located on each side of the bed.

  • Page 13: Actuators, Control & Handset

    BARIATRIC HOMECARE BED Actuators, control & handset Bottom view of bed Actuator-Short (Port 2) Actuator Actuator-Long (Port 3) Control Box Actuator-Short (Port 1) Actuator-Long (Port 4) Control Module LINEAR ACTUATORS The bed is equipped with 24V DC Linear Actuators designed with built in travel limit switches.

  • Page 14: Diagnostic & Repair

    BARIATRIC HOMECARE BED Diagnostic & Repair PROBLEM CAUSE SOLUTION No functions operate No power to unit Check power cord. Is it plugged into receptacle? Green Power-on light Electrical power cord not does not glow properly plugged into Check cord for breaks. control module Power cord plugged Check for power to receptacle.

  • Page 15: Cleaning & Maintenance

    BARIATRIC HOMECARE BED Cleaning & Maintenance Warning: Before cleaning any portion of bed, disconnect power cord from the wall outlet. Do not use a power washer to clean bed. Caution: Before using any cleaning product, test it on the underside of the bed. Never use any volatile or flammable fluid (thinner, gasoline, etc.) that could cause discoloration or deterioration.

  • Page 16: Warranty

    BARIATRIC HOMECARE BED Warranty Specifications Product name: ConvaQuip Bariatric Homecare Bed Models: 5639, 5648 650 LB. CAPACITY Dimensions: Maximum Overall Width 41-1/2” Models: 5639 50-1/2” Models: 5648 90” with headboard and footboard installed Overall Length Models Pan Width Pan Length 39”...
  • Page 17 ConvaQuip, Inc. warrants the bed frame to be free from defects in materials and workmanship for a period of five (5) years from date of purchase. Wear items including, but not limited to: casters, actuators, control module, handset, power cord, cables, bearings, pins, release knob, and mattress are warranted to be free of defects in material and workmanship for a period of one (1) year.
