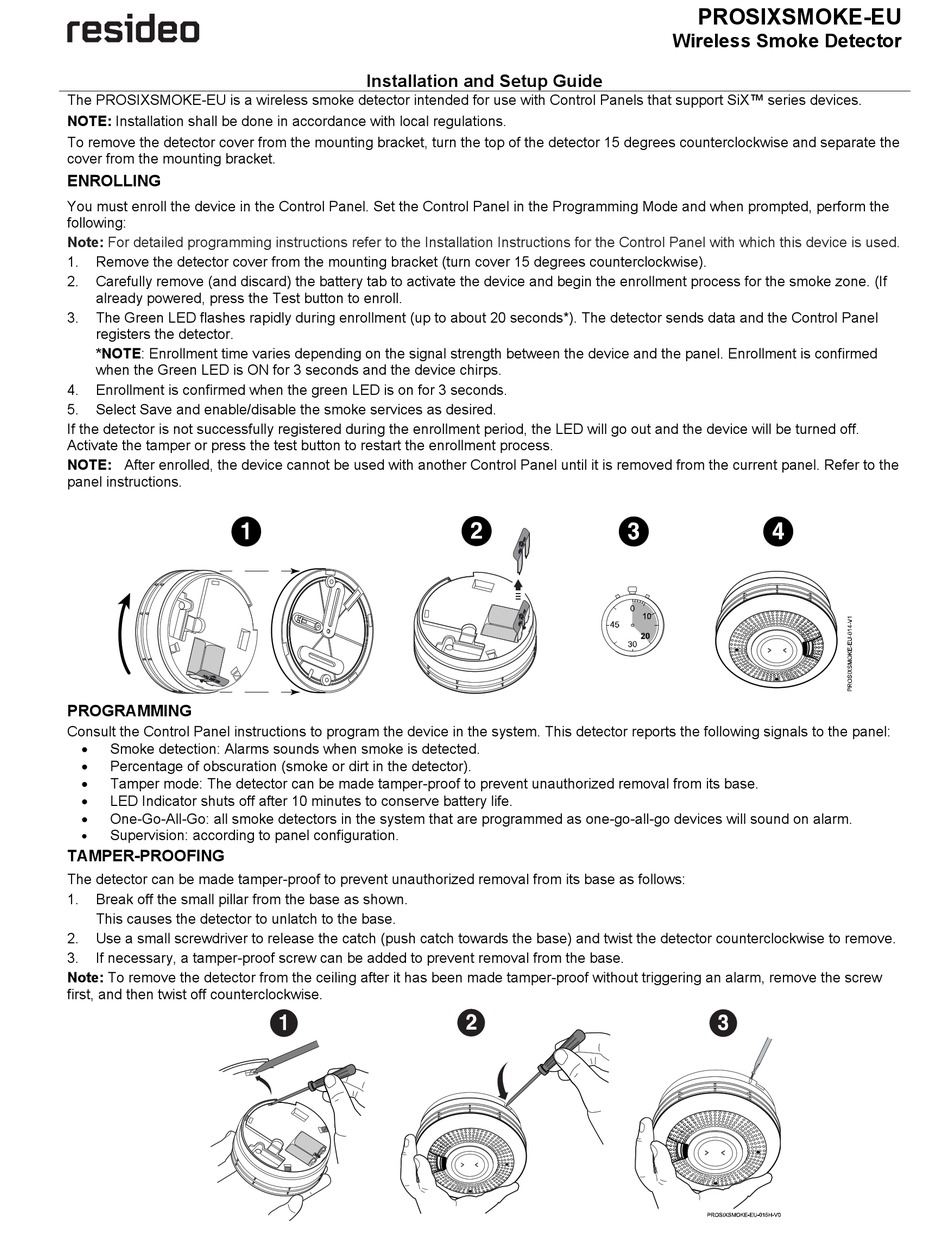

resideo PROSIXSMOKE-EU Installation And Setup Manual

The PROSIXSMOKE-EU is a wireless smoke detector intended for use with Control Panels that support SiX™ series devices.
NOTE: Installation shall be done in accordance with local regulations.
To remove the detector cover from the mounting bracket, turn the top of the detector 15 degrees counterclockwise and separate the
cover from the mounting bracket.
ENROLLING
You must enroll the device in the Control Panel. Set the Control Panel in the Programming Mode and when prompted, perform the
following:
Note: For detailed programming instructions refer to the Installation Instructions for the Control Panel with which this device is used.
1. Remove the detector cover from the mounting bracket (turn cover 15 degrees counterclockwise).
2. Carefully remove (and discard) the battery tab to activate the device and begin the enrollment process for the smoke zone. (If
already powered, press the Test button to enroll.
3. The Green LED flashes rapidly during enrollment (up to about 20 seconds*). The detector sends data and the Control Panel
registers the detector.
*NOTE: Enrollment time varies depending on the signal strength between the device and the panel. Enrollment is confirmed
when the Green LED is ON for 3 seconds and the device chirps.
4. Enrollment is confirmed when the green LED is on for 3 seconds.
5. Select Save and enable/disable the smoke services as desired.
If the detector is not successfully registered during the enrollment period, the LED will go out and the device will be turned off.
Activate the tamper or press the test button to restart the enrollment process.
NOTE: After enrolled, the device cannot be used with another Control Panel until it is removed from the current panel. Refer to the
panel instructions.
PROGRAMMING
Consult the Control Panel instructions to program the device in the system. This detector reports the following signals to the panel:

Smoke detection: Alarms sounds when smoke is detected.

Percentage of obscuration (smoke or dirt in the detector).

Tamper mode: The detector can be made tamper-proof to prevent unauthorized removal from its base.

LED Indicator shuts off after 10 minutes to conserve battery life.

One-Go-All-Go: all smoke detectors in the system that are programmed as one-go-all-go devices will sound on alarm.
 Supervision: according to panel configuration.
TAMPER-PROOFING
The detector can be made tamper-proof to prevent unauthorized removal from its base as follows:
1. Break off the small pillar from the base as shown.
This causes the detector to unlatch to the base.
2. Use a small screwdriver to release the catch (push catch towards the base) and twist the detector counterclockwise to remove.
3. If necessary, a tamper-proof screw can be added to prevent removal from the base.
Note: To remove the detector from the ceiling after it has been made tamper-proof without triggering an alarm, remove the screw
first, and then twist off counterclockwise.
