Matrix MIN600SI Manual For Installation, Use And Maintenance

60cm integrated extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Cod:0103086447-00.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIN600SI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix MIN600SI

Summary of Contents for Matrix MIN600SI

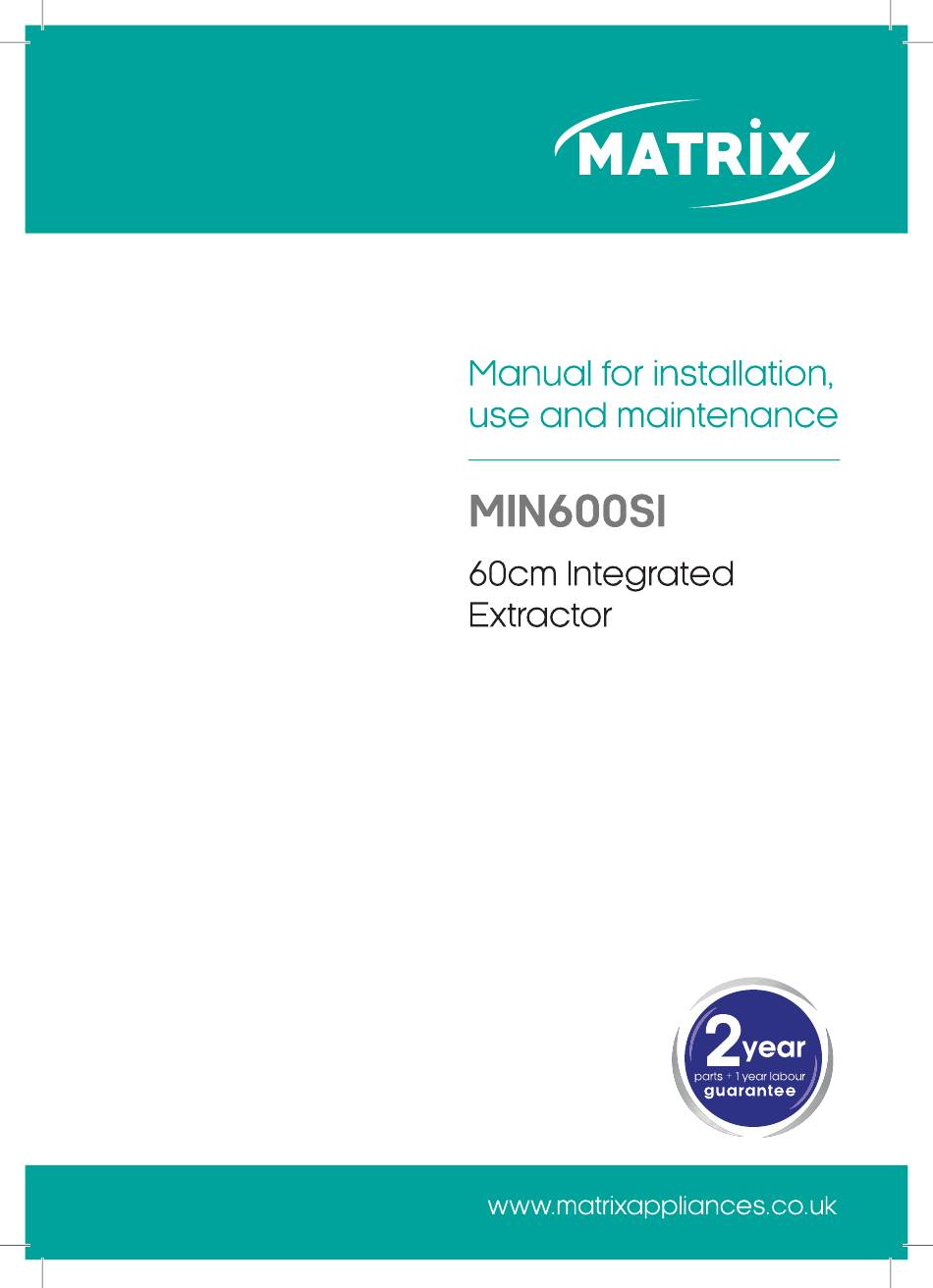

  • Page 1 Cod:0103086447-00.03...
  • Page 2 Declarations of Conformity: This appliance has been manufactured to comply with all EU & UK statutory requirements and complies with all applicable legislation and the following European Directives: • The Low Voltage Directive 2014/35/EU • Electromagnetic Compatibility Directive 2014/30/EU The product has been marked with the UKCA and CE symbols.
  • Page 3 This appliance is marked according to the European directive 2004/104/EC on Waste Electrical and Electronic equipment (WEEE).
  • Page 4 • This extractor has been designed to be used in a room with a volume of less than 36 m 3 . • Steam cleaners must not be used when cleaning this appliance. • The performance of your extractor will vary depending on a number of factors.

  • Page 6: Care And Maintenance

    Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings.
  • Page 7 2. Remove the filter retaining wires from the cover panel. 3. Remove the grease filter and wash by hand in a lukewarm solution of water and mild detergent. Once clean squeeze the grease filter but DO NOT wring it out. Clean the filter holder using a dilute solution of water and mild detergent or with a damp cloth.
  • Page 8 Replaceable (LED only) light Fig.1-I source by an end-user E14 LED 4Wx1 DR-4-H-E14-37 Fig.1-II Fig.1-III...
  • Page 9 Only use bulbs recommended for your extractor. Do not fit bulbs of a higher power rating. Bulbs of a lower power rating may be adequate for use, generally last longer and use less energy. Spare bulbs are available from CDA Customer Care.

  • Page 10: Installation Requirements

    Installation requirements When the extractor is to be installed above an electric hob, the minimum distance between the hob and extractor must exceed 600mm (650mm is recommended). When the extractor is to be installed above a gas hob, the minimum distance between the hob and extractor must exceed 700mm (750mm is recommended).

  • Page 11: Installation Procedure

    Installation procedure 1. Mark the positions of the fixing holes on the wall using the dimensions shown in Fig. 3. 2. Drill and plug the wall with appropriate fixings, suitable for the wall type you are fixing the extractor on. 3.

  • Page 12: Mains Electricity Connection

    Fig4 Fig. 5 Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A 3A FUSE. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C.
  • Page 13 As the colours of the wires in the mains lead for the appliance may not correspond with the coloured markings identifying the terminals connecting to the fused spur, proceed as follows: • The wire which is coloured blue must be connected to the terminal marked N (Neutral), or coloured black.

  • Page 14: Electrical Information

    DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3 AMP FUSE Electrical Information Mains electrical voltage: 230 – 240Vac. Total rated power consumption: 49W. Troubleshooting If your extractor is not working: 1. Check that the mains supply has not been switched off. 2.
  • Page 15 Energy Efficiency Information Attribute Symbol Value Units i t n c i f Annual Energy Consumption 26.6 Hood Time increase factor Fluid Dynamic E ciency Hood Energy E ciency Index 69.1 Hood Measured airflow at Best E ciency 99.2 Point Measured Pressure at Best E ciency 120.0 Point...
  • Page 16 Serviced by For our Customer Care Department, or for Service, please contact us on: The CDA Group Ltd. Harby Road, Langar, Nottinghamshire, NG13 9HY Tel: 01949 862012 Fax: 01949 862003 Email: customer.care@cda.eu...
