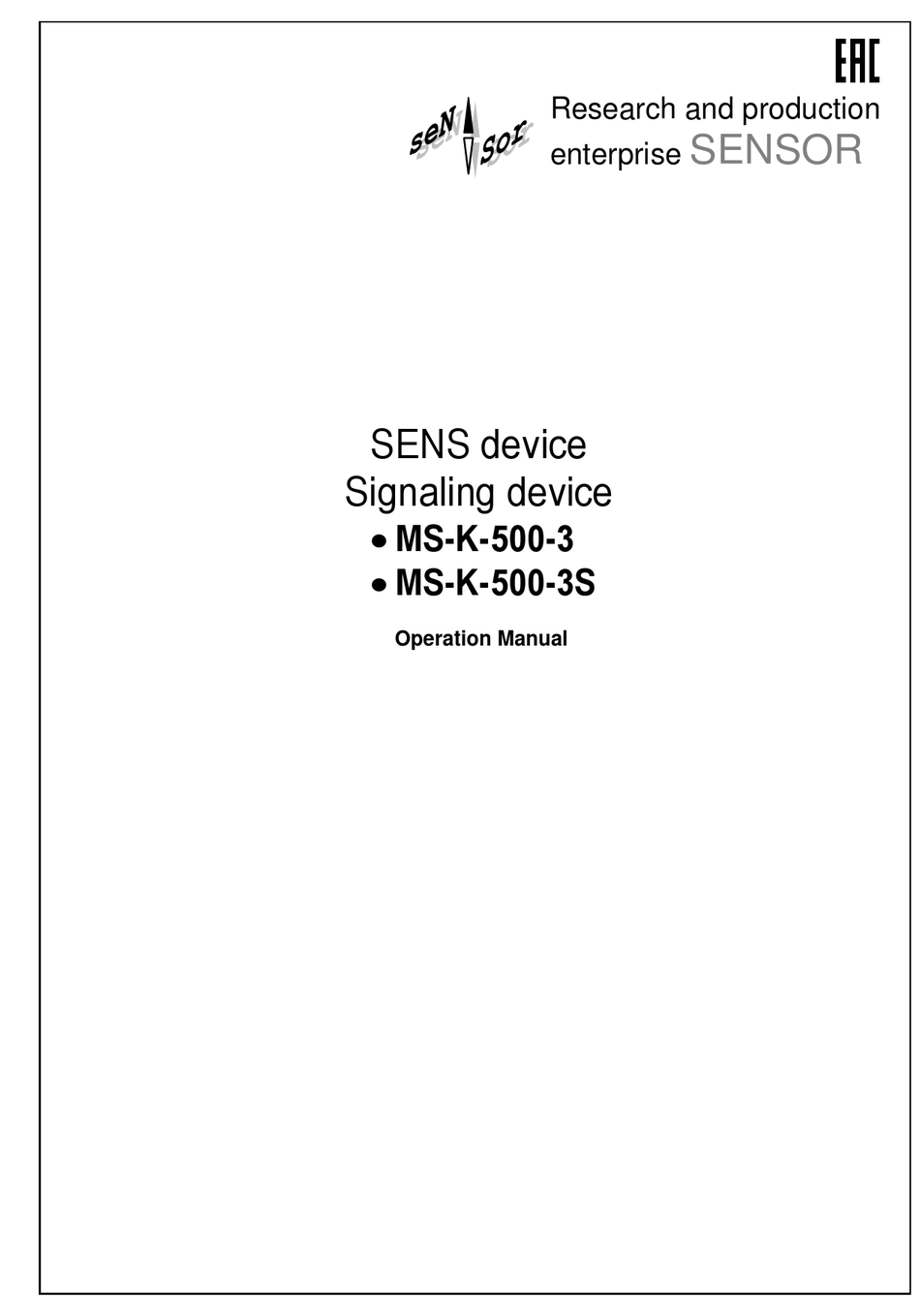

- Page 1 Research and production SENSOR enterprise SENS device Signaling device MS-K-500-3 MS-K-500-3S Operation Manual...
-
Page 2: Table Of Contents
Table of contents 1 DESCRIPTION AND OPERATION ............... 3 1.1 General Purpose ..................... 3 1.2 Technical specifications ................... 3 1.3 Completeness ....................3 1.4 Design and operation..................4 1.5 Marking ......................6 2.1 Safety measures notification ................6 2.2 Operational limitations ..................6 2.4 Used items ....................... -
Page 3: Description And Operation
Present Operation Manual is valid for SENS MS-K-500-3 and MS-K-500-3S devices (hereinafter signal device) and contains data required for its correct and safe operation. 1 DESCRIPTION AND OPERATION 1.1 General Purpose 1.1.1 Signaling devices are applied as a component of SENS measuring system for execution of the following functions: - Display of the measured and controlled parameters values;... -
Page 4: Design And Operation
Name Note multi-channel signal device devices delivered to one ad- Operation Manual dress; additional copies are available on customer's re- quest. 1.4 Design and operation 1.4.1 General view, overall and installation dimensions of the MS-K-500-3 signal device are shown at Picture 1. Housing 1 of MS-K-500-3 signal device has a removable cover 2, one or two cable fittings 3. - Page 5 Record protection toggle 10 and terminal clamp 7(designed for external circuits connection) are placed on the back panel. The housing of signal device has four latches 3 for fixture for fixation inside the elec- tric box. Signaling Device Signaling Device MS-K-500-3S MS-K-500-3S А...
-
Page 6: Marking
1.5 Marking 1.5.1 Signaling device has a marking containing: - product name; - product designation; - product serial number; - date of manufacturing. 2 PROPER USE 2.1 Safety measures notification 2.1.1 As for the human protection against electric current affection MS-K-500-3 and MS-K-500-3S signal devices are related to class lll as per GOST 12.2.007.0. - Page 7 “sleep” mode (the flashing dot or a last interrogated sensor address shall appear on the screen). In case of sound signal missing or wrong indi- cation on the screen, signal device should be deemed as malfunctioning.
-
Page 8: Used Items
Picture 2.1 Electric connection and sealing of MS-K-500-3 signal device should be executed in the following order: - Screw out the nut 13 from the cable fitting 3. - Open the exterior panels 5. - Screw out screws 14 (4 pcs.) on the cover fixtures. - Flip put the housing 2 cover. - Page 9 Picture 2.2 The list of displayed parameters is determined according to the device type and its configuration. Designation of all possible parameters is given at picture 2.3. – liquid density (tons/m – liquid level (m) – main product volume (m –...
- Page 10 Entering the quick-access menu is executed in the operation mode by long pressing (more than 1 second) the right button. The USEr menu designation and the first menu item SEt.u shall appear on the screen. Exit from the quick-access menu shall be performed if: - both buttons are pressed simultaneously;...
- Page 11 Exit from menu, current menu item is performed as follows: Short-press the right button several times to scroll to menu item or sub-item End If any changes were made in the selected menu sub-items, then short-press of the right- button will cause a request on the indicator board – SAV?); (save?). Long-press of the right button is used to save and exit, the indicator board with consequently show message –...
- Page 12 ПМП-201А ПМП-201А SEtt SEtt Адрес: 002 Адрес: 002 Digital values are displayed in the middle field of the d1 1.200 d1 1.200 м screen. The order being edited is flashing. Short- Глубина погружения Глубина погружения press of the buttons allow to go next order. ПМП-201А...
- Page 13 Picture 2.10. Then, in accordance with 2.4.4.1 it is required to enter the adjustable signal device address (pointed in passport) or 255 addresses (self-request). After address input the screen will display a device type – SiGn (signal device) and first menu item – SEE(for de- vices type SiGn current item is not used).
- Page 14 mode adjustment is performed with F parameter input. “Sleep” mode adjustment is shown in 1.4.5. F parameter value is set in seconds (S). If the parameter is not equal to zero, signal device will not be switched "sleep” mode and interrogation period for parameter viewing shall be set as F+0,5 seconds. Is it recom- mended to set 5+ seconds for interrogation period;...
- Page 15 Configuration is made using sixth item of dt.bt menu. Table row contains device address and eight vertical bars (picture 2.13). Each line corresponds to a certain event (device state altering: button pressing, relay switching, etc.). Leftmost bar – event number 1. Rightmost bar – event number 8. The length of the line determines the reaction on the event: short line - event is ignored, long line - reaction is set, i.e.
-
Page 16: Maintenance
unique, i.e. the devices connected to one line of power and communication must not have the same addresses. Note – The signal device default address (set by Manufacturer) is 88. It is recom- mended to set the signal device address within the range from 82 to 92. If signal device address is unknown, then input of 255 addresses (self-request) shall enter the signal device configuration settings. -
Page 17: Routine Product Repair
Note - In case of contaminations determination cleaning is performed using dry rags wetted with alcohol or any cleaning solution. Checking of signal device connection. Absence of breakage or damage of connec- tion cable insulation, absence of breakage or damage of grounding wire is checked; Transducer configuration and operation check. -
Page 18: Annex A
7 ANNEX A (for reference) Reference regulatory documents Designation of document which is referred to Number of sec- tion, subsection, paragraph con- taining reference GOST 12.2.007.0-75 Occupation safety standards system. Electrical 2.1.1 equipment. General safety requirements GOST 14254-2015 Protection degrees, provided by enclosures (IP 2.2.3 Code) GOST 15150-69 Machines, instruments and other industrial products. - Page 19 NPP SENSOR LLC RUSSIA, 442965, Zarechny, Penza region, P.O. Box 737. phone / fax +7(841-2) 65-21-00, +7(841-2) 65-21-55 Corr. 21.10.2019...
