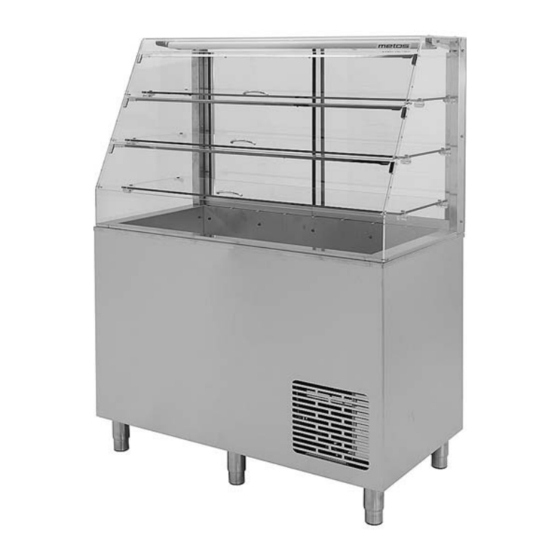

- Page 1 COLD DISPLAY KYLMÄLASIKKO 4312400, 4312402, 4312410, 4312412 Varaosat Installation and Operation Manual Alkuperäiset ohjeet 06/2013 Translation of the original instruction manual S/N: 10961001040010 Rev.: 1.0 4312400, 4312402, 4312410, 4312412...
-
Page 2: Table Of Contents
17 .05.2014 METOS CD Table of Contents General ...............................3 1.1. Symbols used in the manual ........................3 1.2. Symbols used on the appliance ........................3 1.3. Checking the relation of the appliance and the manual ................3 Safety .................................4 2.1. Safe use of the appliance ..........................4 2.2. -
Page 3: General
17 .05.2014 METOS CD General Carefully read the instructions in this manual as they contain important information regarding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. -
Page 4: Safety
17 .05.2014 METOS CD Safety 2.1. Safe use of the appliance For safe use of the appliance, observe the following safety instructions: • When moving or servicing the appliance, always unplug it from the power supply. • While cleaning the appliance, be cautious not to allow the electrical devices to come into contact with water. -
Page 5: Functional Description
17 .05.2014 METOS CD Functional description 3.1. Intended use of the appliance The appliance is designed for use in serving lines, restaurants, cafés and kitchens. The upper section and basin of the cold display are designed for short-time storage of precooled foodstuffs before distribution. -
Page 6: Operating Instructions
17 .05.2014 METOS CD Operating instructions 4.1. Operation Before putting products in the unit, wait until it has reached the temperature set with the thermostat. Correct cold storage of foodstuffs facilitates kitchen activities and affects energy consumption. Please observe the following points when using the appliance: •... -
Page 7: After Use
17 .05.2014 METOS CD 4.2. After use 4.2.1. Cleaning In normal use, the appliance does not require any other daily care than sufficient cleaning. The interior and exterior of the appliance is mainly of stainless steel. For cleaning the interior and exterior, use neutral or slightly alkaline cleaning agents or wipe the surfaces with a damp cloth. -
Page 8: Installation
17 .05.2014 METOS CD Installation 5.1. Operating conditions The appliance should not be placed in a location exposed to heavy thermal load, e.g. direct sunlight or thermal radiators. Positioning cold equipment close to bains marie and ovens should be avoided. -
Page 9: Installation
17 .05.2014 METOS CD 5.4. Installation The appliance is supplied with adjustable legs. Mount the appliance with the help of the adjustable legs in a horizontal position as accurately as possible, ensuring that the appliance rests evenly on all legs. If adjustment is not performed with great care, the door and locks may not work properly. -
Page 10: Electrical Connections
17 .05.2014 METOS CD 5.5. Electrical connections Connect the appliance to the power supply with an earthed socket. For making the connection, a socket protected with a fuse of 16 A has to be provided for each unit. 5.6. Start-up After connecting the appliance to the power supply, turn on the main switch (green) and make sure that the indicator light of the switch lights up. -
Page 11: Locking And Unlocking The Keyboard
17 .05.2014 METOS CD Key Combinations To lock or unlock the keyboard To enter in programming mode To return to room temperature display Symbols and significations Compressore enabled Flashing Anti short cycle delay enabled (AC parameter) Defrost in progress Flashing... -
Page 12: Troubleshooting
17 .05.2014 METOS CD Troubleshooting In case the appliance does not function as expected, review the following list of problems to find out if the appliance can be put in order without a service call. In all enquiries, please contact an authorized service company. Most problems can be managed on the phone. -
Page 13: Tekniset Tiedot
17 .05.2014 METOS CD Tekniset tiedot Refrigeration circuit diagram J06335 A Wiring diagram S00331 Installation drawing J11226 A3 Installation drawing J11228 A3... - Page 16 Asennuskuva J11226 A3...
- Page 17 Asennuskuva J11228 A3...
- Page 18 17 .05.2014 METOS CD Määre Malli Tyyppi Arvo Sähköliitäntä 230 V 50 Hz Liitäntäteho 800, 1200 1,1 kW Lämpötilan säätöalue +4°C...+12°C Ympäristöolosuhteet max. +25°C, suht. kos- teus 60% Kylmäaine R404A Eristys Polyuretaani Ohjausyksikkö Automaattinen Sulatus Automaattisulatus 800=Leveys 800 mm, 1200=Leveys 1200 mm...
