BK TECHNOLOGIES BKR0608 User Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

1. General

The BKR0608 is a cable assembly used for testing BKR Portable radios. This cable is compatible with
HP8920 only. If using Aeroflex 3920, please use BKR0608A.

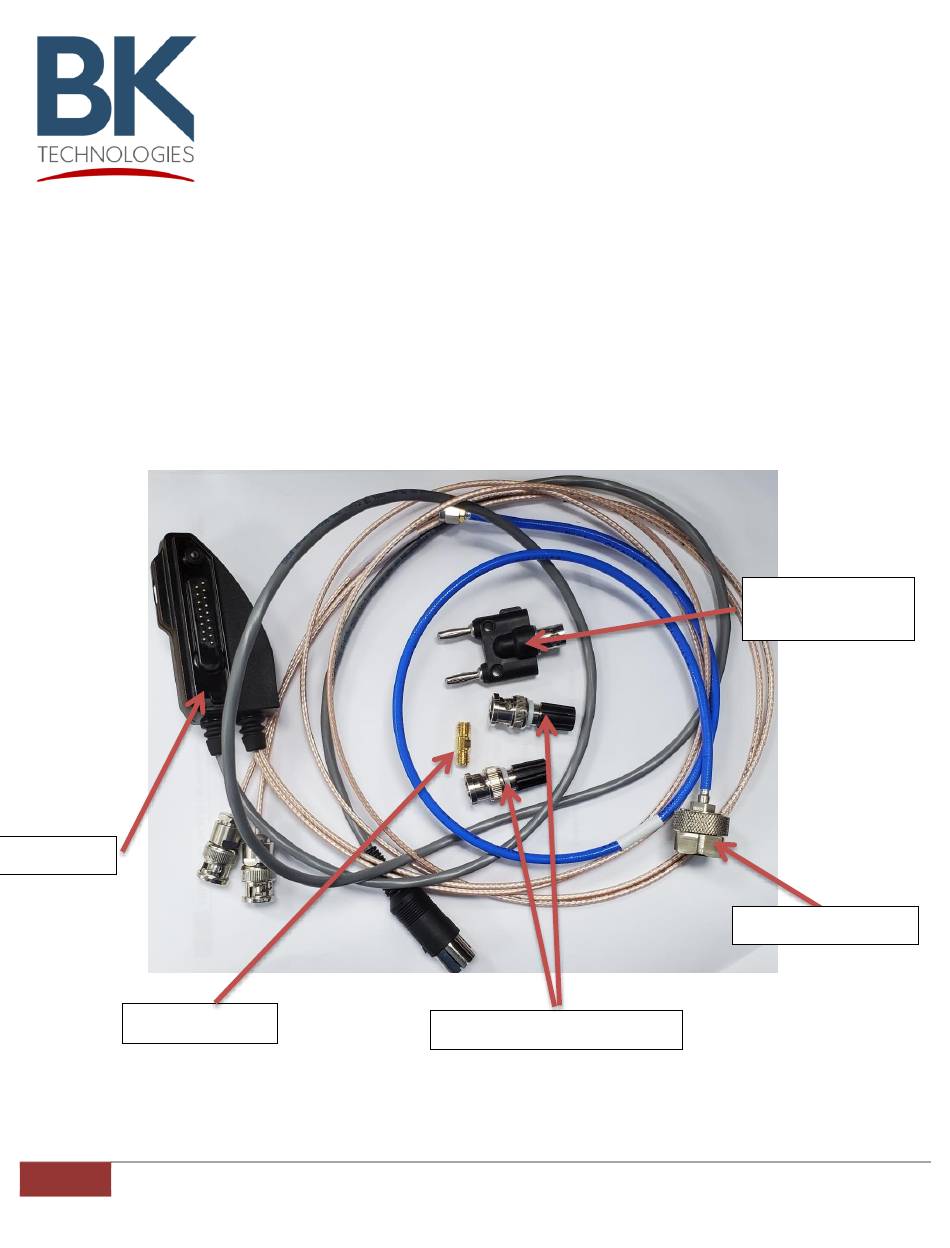

2. The Kit

Cable Assy
Antenna Adaptor
1
7001-31153-000_Ver. 09-20 | BK Technologies
BKR0608
User Instructions
BNC Male Binding Post - 2 ea.
Double Banana
Plug Adapter -1 ea.
RF Coax Cable – 1ea.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BKR0608 and is the answer not in the manual?

Questions and answers

Related Manuals for BK TECHNOLOGIES BKR0608

Summary of Contents for BK TECHNOLOGIES BKR0608

  • Page 1 BKR0608 User Instructions 1. General The BKR0608 is a cable assembly used for testing BKR Portable radios. This cable is compatible with HP8920 only. If using Aeroflex 3920, please use BKR0608A. 2. The Kit Double Banana Plug Adapter -1 ea.
  • Page 2 Connect the RF Coax cable (N-Type) to the RF IN/OUT port of HP8920. g. Attach the Antenna Adaptor to the BKR Portable Antenna Connector. h. Connect the RF Coax cable (SMA) to the Antenna Adaptor. i. Connect the side connector assembly to the radio Accessory port. 7001-31153-000_Ver. 09-20 | BK Technologies...
  • Page 3 Place the cursor to Audio In Lo then press the cursor control knob then choose Float. l. Go back to RX Test mode, the generator is now ready for use. NOTE: The BKR Portable radios have a floating ground audio output and should be connected as such. 7001-31153-000_Ver. 09-20 | BK Technologies...
  • Page 4 Technical Service Support - Customer Service BK Technologies 7100 Technology Drive Melbourne, FL 23904 (800) 422-6281 www.BKTechnologies.com 7001-31153-000_Ver. 09-20 | BK Technologies...
