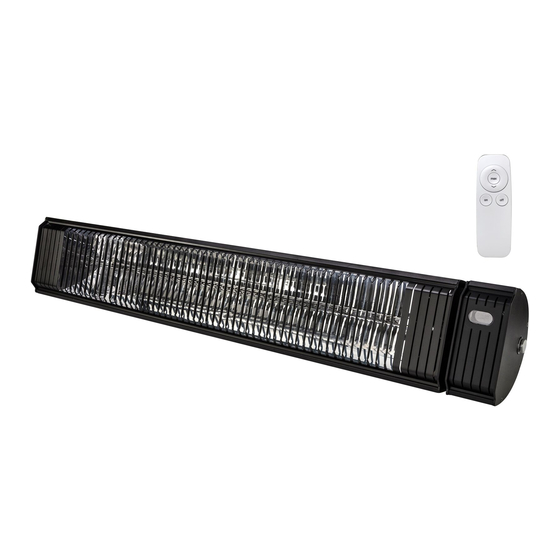

Aura CF15120B Installation, Operation And Maintenance Manual

Radiant infrared heater
Hide thumbs Also See for CF15120B:

Advertisement

Quick Links

Download this manual
INSTALLATION OPERATION AND MAINTENANCE MANUAL
MODELS
CF15120B
During operation, take precautions to ensure that combustible materials are always kept at safe distance
from the heater and the radiant energy. Heater is not intended for use in hazardous areas where
flammable vapours, gases, liquids or other combustibles are present.
personal injury/or property damage.
INFORESIGHT CONSUMER PRODUCTS INC. * 125 TRADERS no 4 * MISSISSAUGA, ONTARIO * 905-568-7655
Radiant Infrared Heater
Aura Carbon Fiber n◦ CF15120B
VOLTAGE
120V
FIRE/EXPLOSION HAZARD WARNING
NOT FOR USE IN HAZARDOUS OR EXPLOSIVE ATMOSPHERES
FOR OUTDOOR/INDOOR USE
–
TOTAL POWER (W)
1500W
CURRENT(AMPS)
12.5A
Failure
to comply can result in
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CF15120B and is the answer not in the manual?

Questions and answers

Related Manuals for Aura CF15120B

Summary of Contents for Aura CF15120B

  • Page 1 INSTALLATION OPERATION AND MAINTENANCE MANUAL Radiant Infrared Heater – Aura Carbon Fiber n◦ CF15120B MODELS VOLTAGE TOTAL POWER (W) CURRENT(AMPS) CF15120B 120V 1500W 12.5A FIRE/EXPLOSION HAZARD WARNING NOT FOR USE IN HAZARDOUS OR EXPLOSIVE ATMOSPHERES During operation, take precautions to ensure that combustible materials are always kept at safe distance from the heater and the radiant energy.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 - SAFETY ................................3 2 - INSTALLATION INSTRUCTIONS .......................... 4 3 - OPERATING INSTRUCTIONS ..........................7 3.2.1 Operation of the Remote Control ..................... 8 4 - MAINTENANCE ..............................8 5 - LIMITED EXPRESS WARRANTY ........................11 WARNINGS THIS ELECTRIC APPLIANCE PRODUCES INFRARED HEAT, AND FAILURE TO FOLLOW WARNINGS AND INSTRUCTIONS CAN CAUSE A FIRE, ELECTRIC SHOCK, OR INJURY.

  • Page 3: Safety

    1 - SAFETY WARNINGS Wiring Check whether your heater and power cord are Use your heater with a properly earthed plug. damaged before operating your appliance. If yes, do The earthed plug must be outside heating area and not plug your heater and contact with authorized hot surface.

  • Page 4: Installation Instructions

    Never leave the heater unattended while it is operating. Cleaning and Maintenance Before cleaning the unit or replacing the heating Service must be performed only by a qualified service tube, turn off the main power. Make sure the heater technician. and/or the heating tube is cool before handling.
  • Page 5 Minimum clearance distances Floor Ceiling Adjacent walls 8’ (2.4 m) 1’ (30 cm) 5’ (1.5m) Wall-Mounted clearance ELECTRICAL INSTALLATION Safety precautions 1. Each power supply circuit must be hard wired and properly grounded. 2. Use a certified ground fault protection device for wet environment installations. 3.
  • Page 6 1. Take the heater out of its box and remove all fixing bolts on the brackets at the rear of the the protective mounts. heater. 2. Select the location of the unit on the wall by 6. Secure electrical supply cable so it does not come identifying the studs or structural beams that will in contact with the heater body or obstruct the...

  • Page 7: Operating Instructions

    3 - OPERATING INSTRUCTIONS Caution! When the heater is not used for long term, be sure to set the operating mode to the "OFF" position. The heater has two modes of operation, these two modes can be selected using the button on the right side of the heater.

  • Page 8: Operation Of The Remote Control

    3.2.1 OPERATION OF THE REMOTE CONTROL Symbol Description ˄ Up one heating level The heater goes directly to the highest heating level (short delay on start). ˅ Down one heating level. To switch the heater ON : Press On. The heater has a soft start function of 16% power. 4 seconds after the heater has been turned on, it will automatically switch to the last heating level used.
  • Page 9 Notice: Do not touch the heating tubewith bare hands. Wearing soft cotton gloves is highly recommended. Finger marks will burn into the quartz heating tube during use and cause premature heater failure. If the heating tube is anidvertently touched, or if it needs to be cleaned, carrefully wipe it using rubbing alcohol or methylated spirits. CLEANING To remove dust or dirt on the reflector, follow these steps: 1.
  • Page 10 Caution! Disconnect metal locking 8. Connect the new heating tube to the terminals connectors by squeezing the metal tab. of the heater; screw in the protective plastic cap. 6. Remove the two metal pieces on the vertical reflector and remove the defective heating Replace the two pieces of metal on the vertical tube from the unit.

  • Page 11: Limited Express Warranty

    5 - LIMITED EXPRESS WARRANTY DURATION OF WARRANTY & REGISTRATION RESIDENTIAL INSTALLATION/USE: The warranty begins on the date of purchase by the original consumer. LIMITED ONE (1) YEAR PARTS WARRANTY The consumer must register at info@auraheater.com within 90 days of Inforesight Consumer Products Inc.
