- Page 1 A Canadian Solar subsidiary T4 PV CONNECTOR T4 PV CONNECTOR INSTALLATION MANUAL INSTALLATION MANUAL For professional use only...
-
Page 2: Table Of Contents
T4 PRODUCT SPECIFICATIONS T4 CONNECTOR TYPE SAFETY PRECAUTIONS T4 FIELD TOOLKIT CONNECTOR & WIRE ASSEMBLY STEPS THE CORRECT CONNECTION DISCONNECTING THE CONNECTORS AMENDED EDITIONS AND DATES LIST OF FORBIDDEN CHEMICAL SUBSTANCES EN-Rev IM-TC-EN/1.7 Copyright © Mar.2021. Tlian (Changshu) Co., Ltd. -
Page 3: T4 Connector Parts
1. T4 CONNECTOR PARTS ① Item Part Name ② PV Cable ③ Male Pin Contact (-) ① Male Connector (-) Female Socket Contact (+) Female Connector (+) ④ ⑤ 2. T4 CONNECTOR SPECIFICATIONS Male Connector (-) Male Pin Contact (-) -
Page 4: T4 Connector Type
T4 local waste management regulations. products. EN-Rev IM-TC-EN/1.7 Copyright © Mar.2021. Tlian (Changshu) Co., Ltd. -
Page 5: Connector & Wire Assembly Steps

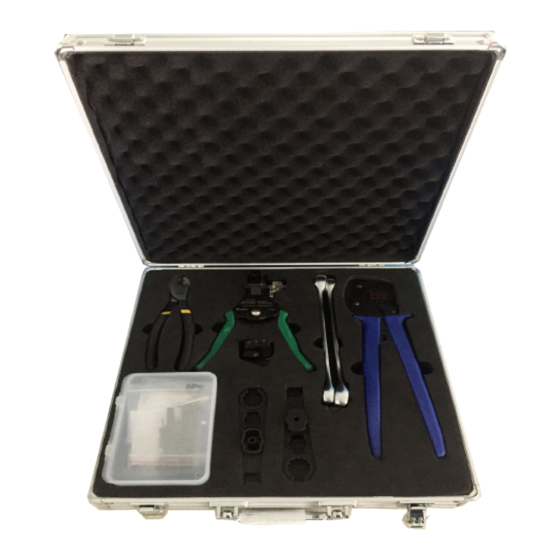

PARTS INCLUDED IN FIELD TOOLKIT: Disconnect tools 1 set = 2 pieces Wire stripper tool Type Crimping Range 2.5/14 2.5 mm 14 AWG 4.0/12 4.0 mm 12 AWG 6.0/10 6.0 mm 10 AWG 6. CONNECTOR & WIRE ASSEMBLY STEPS STEP 1: VISUAL INSPECTION OF CONNECTOR FEMALE CONNECTOR Wire crimping tool... - Page 6 Push the crimped contact back into the connector until should be less than 0.5 mm. you hear a click. Lightly pull the wire to ensure the √ metal components of the connector are engaged. × EN-Rev IM-TC-EN/1.7 Copyright © Mar.2021. Tlian (Changshu) Co., Ltd.
-
Page 7: The Correct Connection
7. THE CORRECT CONNECTION Incorrect bend Correct bend Distance is too close l ≥ 20 mm × × √ √ Please refer to the detailed instructions of the l ≥ 20 mm l ≥ 20 mm minimum bend radius given by the cable manufacturer Incorrect connection Correct connection... -
Page 8: List Of Forbidden Chemical Substances
KE-200(ShinEtsu),CX-200(ShinEtsu). Remarks: For any chemical not listed above that may come into contact with any T4 product,it is the user's responsibility to validate that such chemical will not affect the performance of T4 products. Final interpretation is owned by TLIAN... - Page 9 TLIAN (CHANGSHU) CO., LTD. Guanghuahuan Road No.6, Changshu, China EN-Rev IM-TC-EN/1.7 Copyright © Mar.2021. Tlian (Changshu) Co., Ltd.
