BroaMan Mux22 Series Quick Start Manual

Quick Start Guide

INTRODUCTION

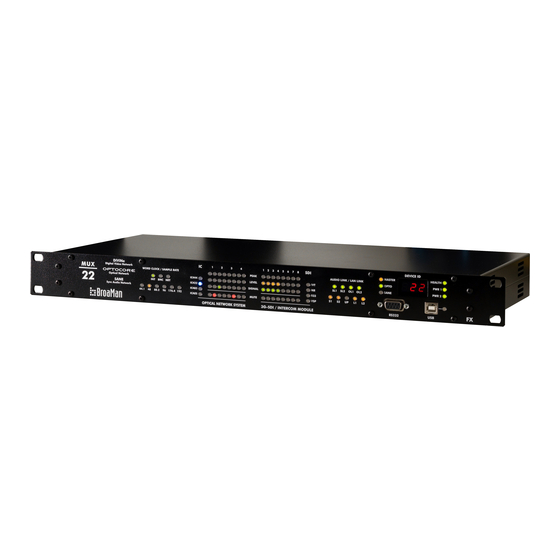

The MUX22-IVT/x is a pair of units providing bi-directional fiber transmission of up to 16 x
12/3G-SDI channels, 256/256 MADI or Analog/Digital Intercom connectivity, plus 4 x GPIO,
4 x LAN and SYNC
This Quick Start Guide describes all main features of the MUX-22 pair and describes how to
connect system in a few steps, using a MUX22-IVT/MADI in a 6/2 configuration as an example.

CABLE CONNECTION

A BroaMan MUX-22 set is delivered as preconfigured point-to-point set which consists of
two devices. It requires only a proper cable connection to start working with the system. After
unpacking the devices please follow the steps:

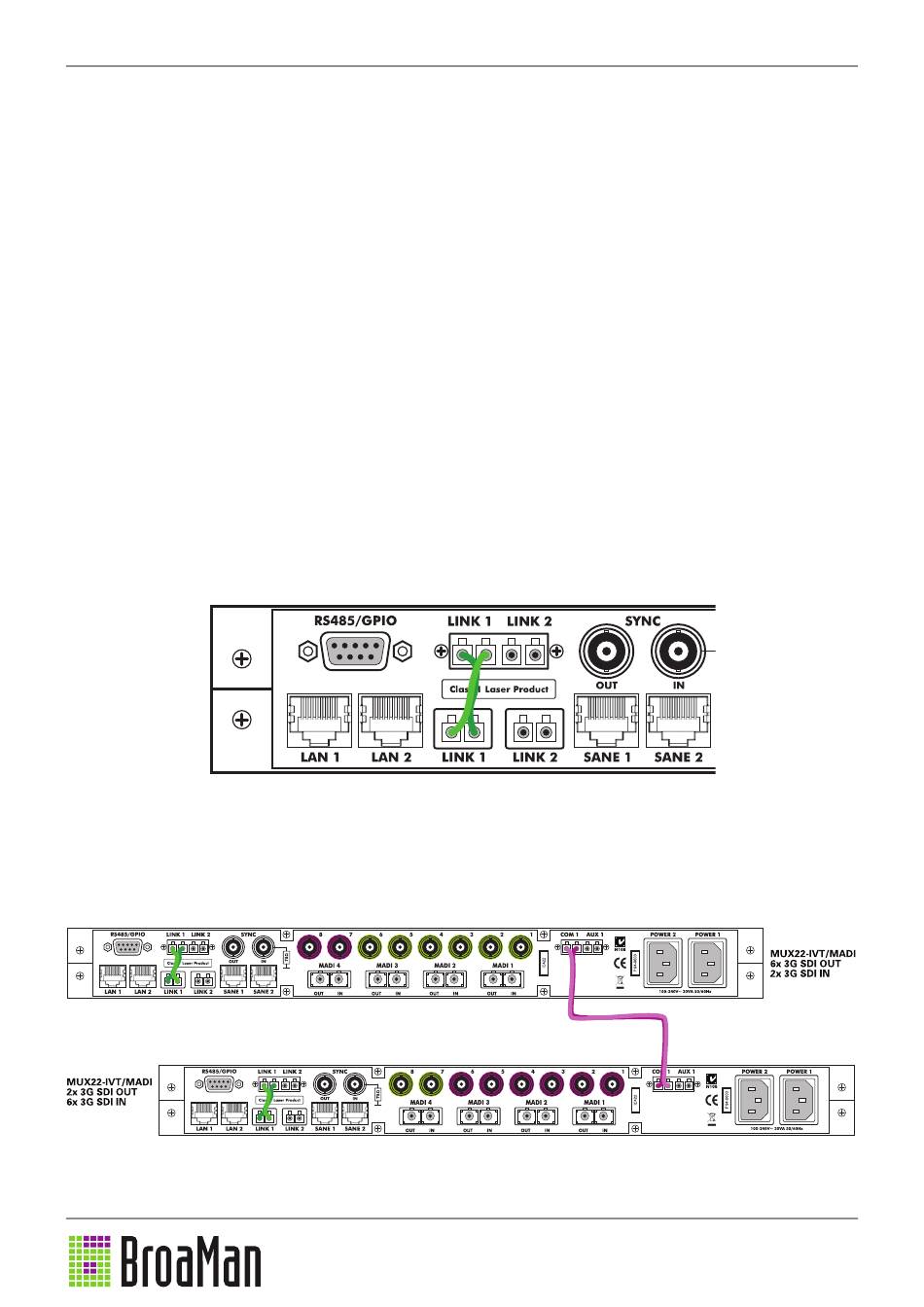

1. Connect crossed duplex singlemode fiber cable locally on each device – from Link 1 trans-
ceiver to Link 1 coupler (this connection enables integration of OPTOCORE board, which
provides intercom and data connectivity, into the COM fiber)
2. Connect crossed duplex singlemode fiber cable between two devices – from COM 1 cou-
pler on the first device to the COM 1 coupler on the second unit
MUX22-IVT-series
