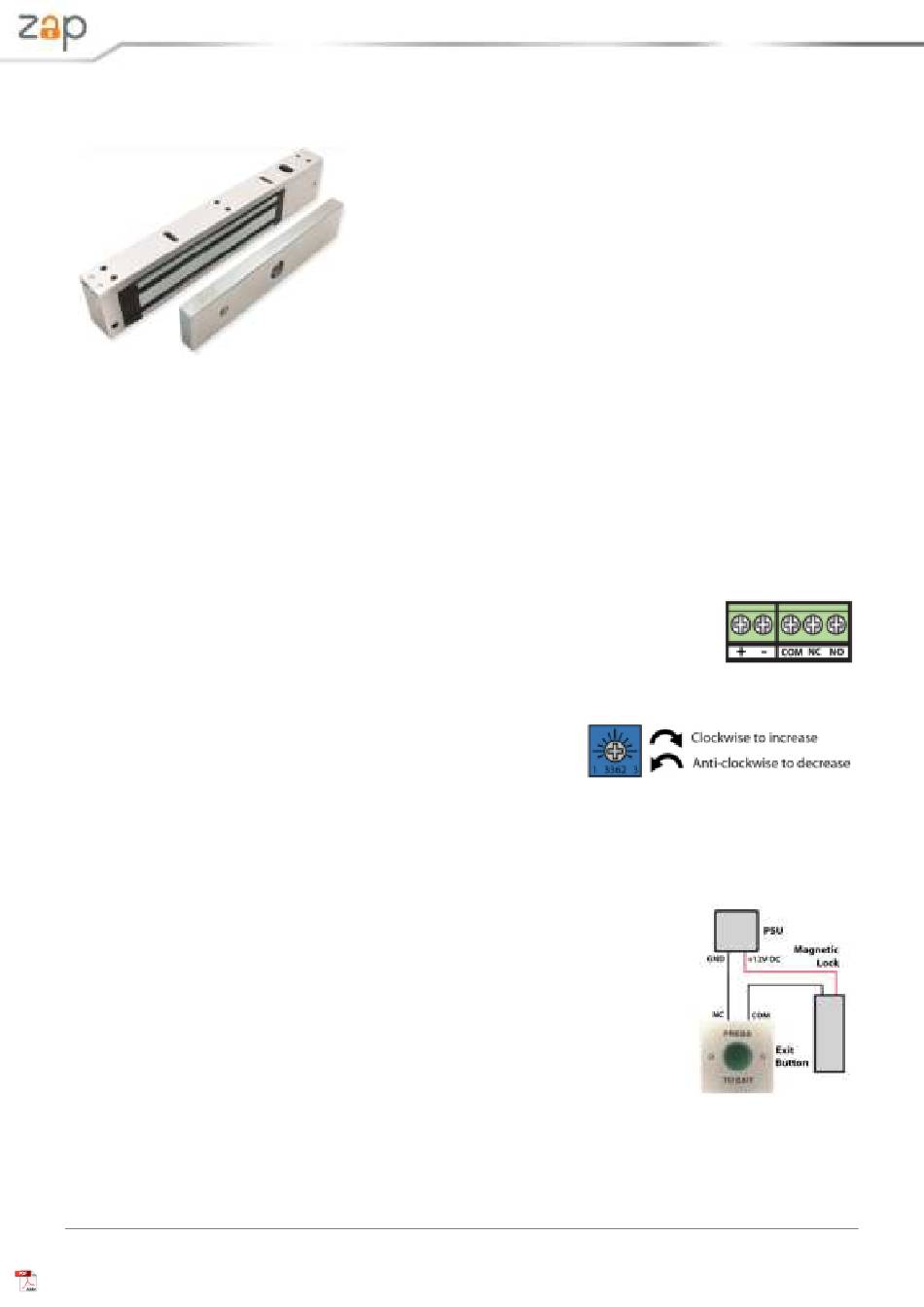

Zap ACC510 Quick Start Manual

ACC510 - Quick Start
Guide
·
Shut off all power to the access control system before wiring this device.
·
Maintain a clean and safe environment at all times.
Definition
NO (Normally Open) - This is a contact which remains open (as default) until activated, during the
"active" state the contact provides a closed circuit and starts conducting.
NC (Normally Closed) - Is the opposite of a NO contact. The contact will remain closed (as default)
until activated, during the "active" state the circuit breaks and stops current flow.
Connections
The ACC510 requires 12V DC applied to the '+' and '-' terminals in order to
activate the lock. There are also relay output terminals NC or NO and COM.
Time Delay
Once power is applied to the '+' and '-' terminals the lock
uses its internal timer to determine the pull of the
electromagnet. Note the armature plate needs to be close to
the Mag Lock in order for the pull to take effect.
Status LED
- Show the state of the lock.
Setup Examples
Magnetic locks are an efficient method of adding secure access control to a
door.
An electromagnetic lock works by holding the door in place as long as there is
power being supplied.
For a "Fail Safe" setup, when the button is activated, power supply then
releases power from the lock, and if power is lost then the lock also
releases.
The Mag Lock can also be connected to a HRM250 - 10 function relay. A
custom set length of time can be set for how long the power is cut from
Document ref: qACC510
Mag Locks
The ACC510 has an adjustable delay and status relay output
which can be connected to a buzzer or light to produce a
visible or audible alert when the door is opened.
User Information
·
There are no user serviceable parts, opening or
attempting to repair the product will void the warranty.
·
Do not install or use the device if the wires connected are
damaged or have been subjected to water ingress.
·
Handle the equipment carefully. The holding force can be
reduced by damaging the lock body or armature plate.
·
The magnetic lock should be fixed tightly on the door
frame and the armature plate on the door leaf.
Red = Power on and pull in place
Green= Power on and lock opened
ZapCCTV.com
Surface Mount Mag Lock
