ACC518, ACC520 - Quick Start Guide
User Information
·
There are no user serviceable parts, opening or attempting to repair the product will void the warranty.
·
Do not install or use the device if the wires connected are damaged or have been subjected to water ingress.
·
Handle the equipment carefully. The holding force can be reduced by damaging the lock body.
·
The strike lock should be fixed tightly in the door frame.
·
Shut off all power to the access control system before wiring this device.
·
Maintain a clean and safe environment at all times.
Definition
NO (Normally Open) - This is a contact which remains open (as default) until activated, during the "active" state
the contact provides a closed circuit and starts conducting.
NC (Normally Closed) - Is the opposite of a NO contact. The contact will remain closed (as default) until
activated, during the "active" state the circuit breaks and stops current flow.
Setup Example
The ACC520 is a Fail Safe strike lock making it ideal for
emergency exits. They work by keeping the door locked until
power is cut when an emergency exit button is pressed or the
building loses power. When the this happens the doors will
unlock allowing staff and visitors to safely leave the building.

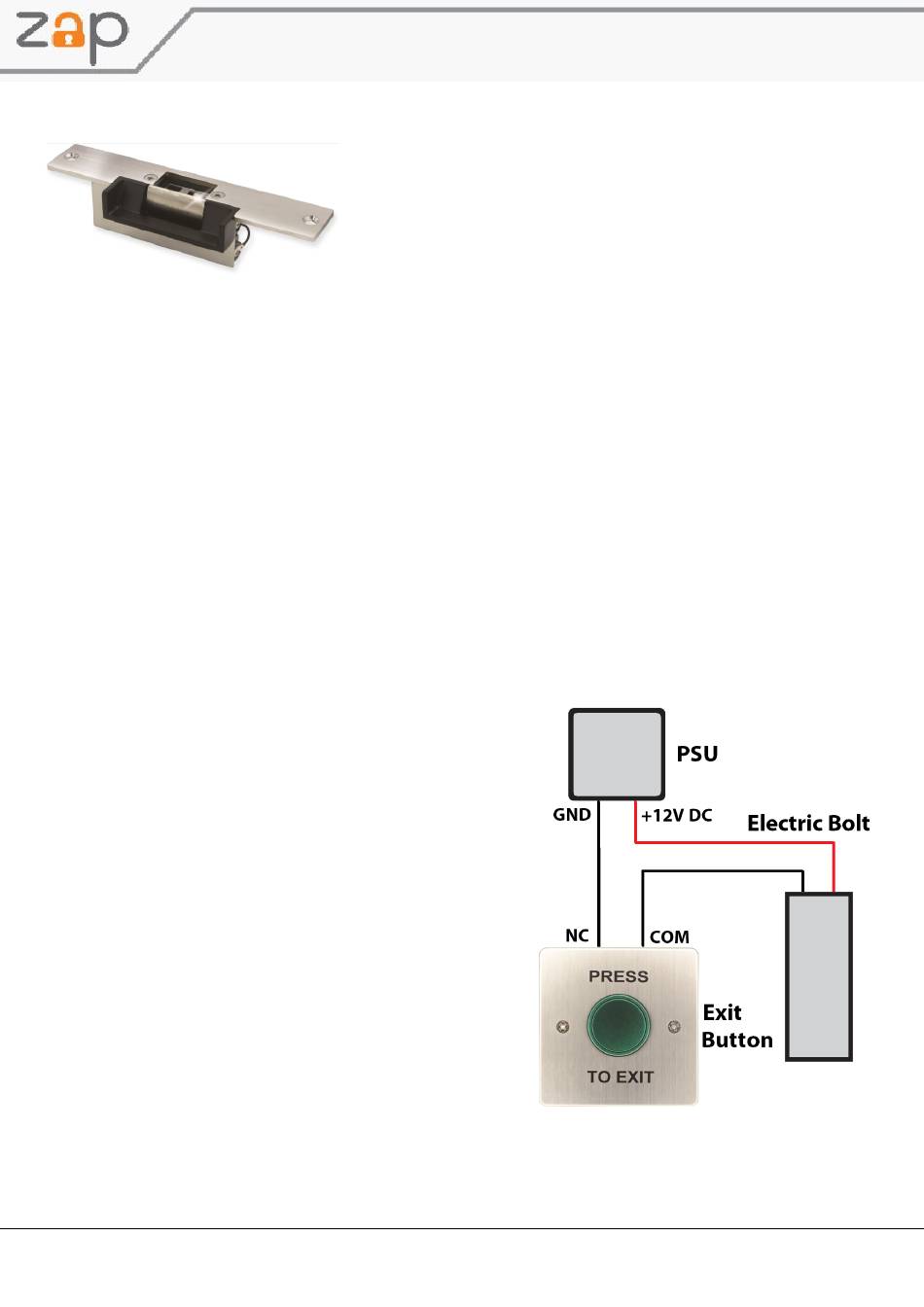

This example shows a the ACC520, when the button is
activated, power supply then releases power from the
lock, and if power is lost then the lock also releases.
Connect the control device and power to the lock via an
access control panel, relay or exit button so that the power
can be cut when triggered.
For a Fail Secure setup the ACC518 strike lock works the
opposite way to most electronic locks as they are designed to
lock the door when their power is cut.
The lock can also be connected to a HRM250 - 10
function relay. A custom set length of time can be set
for how long the power is cut from the lock. This allows
for installations where the exit button isn't situated next
to the door and a timed released is required.
Quick Start Guide - qACC518, qACC520
1
Strike Locks
Strike locks are designed to replace the original latch plate in a door
frame.
The ACC520 is Fail Safe lock which unlocks when power lost ideal for
emergency exits.
The ACC518 is a Fail Secure lock on power loss perfect for security
doors.
Strike Locks
