2.6

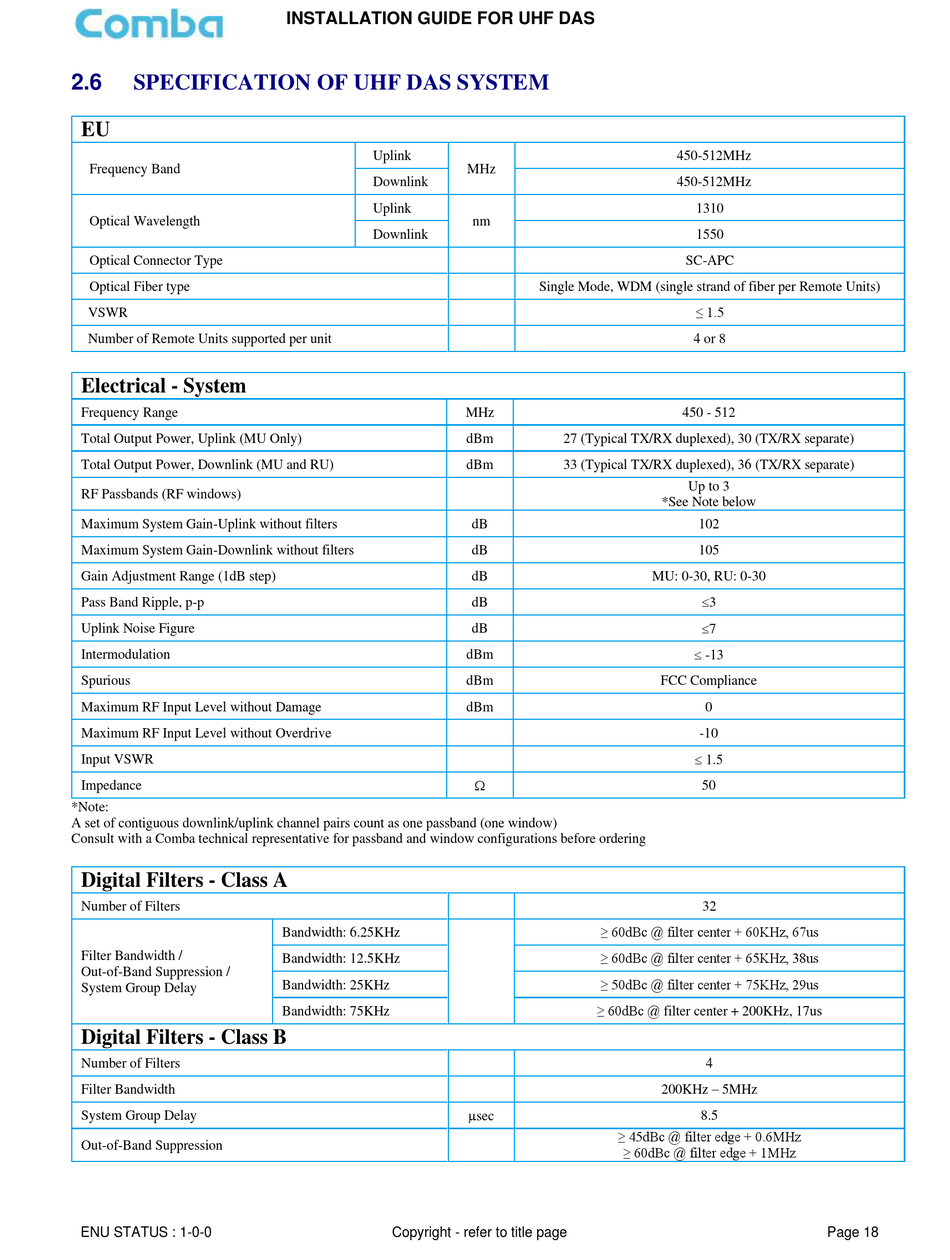

SPECIFICATION OF UHF DAS SYSTEM

EU
Frequency Band
Optical Wavelength
Optical Connector Type
Optical Fiber type
VSWR
Number of Remote Units supported per unit
Electrical - System
Frequency Range
Total Output Power, Uplink (MU Only)
Total Output Power, Downlink (MU and RU)
RF Passbands (RF windows)
Maximum System Gain-Uplink without filters
Maximum System Gain-Downlink without filters
Gain Adjustment Range (1dB step)
Pass Band Ripple, p-p
Uplink Noise Figure
Intermodulation
Spurious
Maximum RF Input Level without Damage
Maximum RF Input Level without Overdrive
Input VSWR
Impedance
*Note:
A set of contiguous downlink/uplink channel pairs count as one passband (one window)
Consult with a Comba technical representative for passband and window configurations before ordering
Digital Filters - Class A
Number of Filters
Filter Bandwidth /
Out-of-Band Suppression /
System Group Delay
Digital Filters - Class B
Number of Filters
Filter Bandwidth
System Group Delay
Out-of-Band Suppression
ENU STATUS : 1-0-0
INSTALLATION GUIDE FOR UHF DAS
Uplink
Downlink
Uplink
Downlink
Bandwidth: 6.25KHz
Bandwidth: 12.5KHz
Bandwidth: 25KHz
Bandwidth: 75KHz
Copyright - refer to title page
MHz
nm
Single Mode, WDM (single strand of fiber per Remote Units)
MHz
dBm 27 (Typical TX/RX duplexed), 30 (TX/RX separate)
dBm 33 (Typical TX/RX duplexed), 36 (TX/RX separate)
dB
dB
dB
dB
dB
dBm
dBm
dBm

≥ 60dBc @ filter center + 60KHz, 67us
≥ 60dBc @ filter center + 65KHz, 38us
≥ 50dBc @ filter center + 75KHz, 29us
≥ 60dBc @ filter center + 200KHz, 17us
sec
≥ 45dBc @ filter edge + 0.6MHz
≥ 60dBc @ filter edge + 1MHz
450-512MHz
450-512MHz
1310
1550
SC-APC
≤ 1.5
4 or 8
450 - 512
Up to 3
*See Note below
102
105
MU: 0-30, RU: 0-30
3
7
 -13
FCC Compliance
0
-10
 1.5
50
32
4
200KHz – 5MHz
8.5
