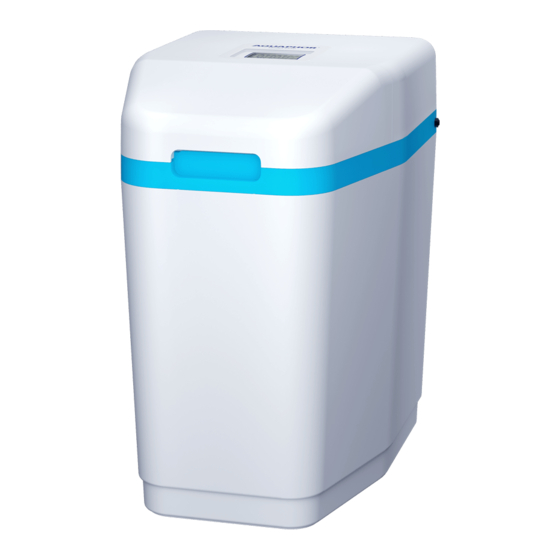

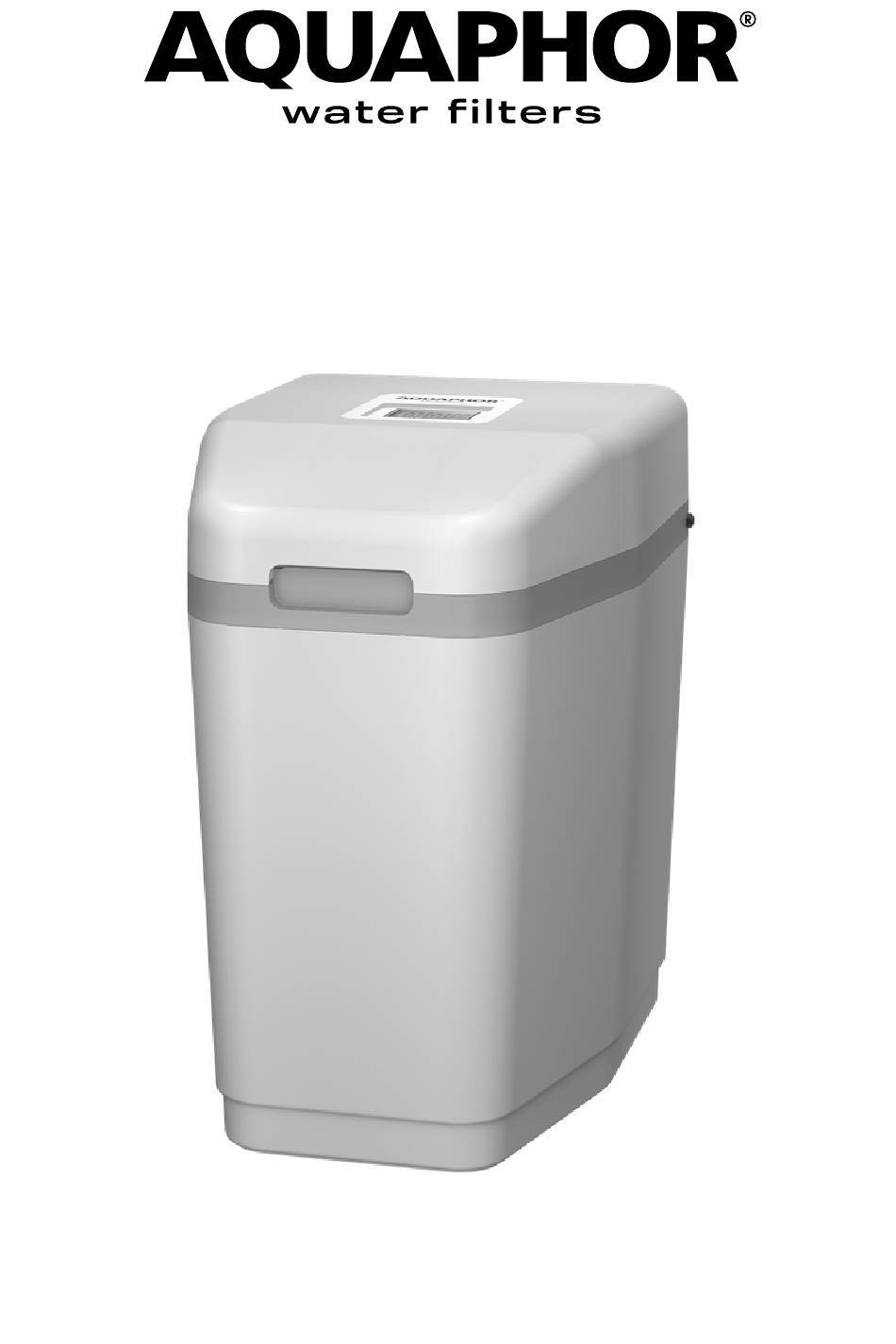

- Page 1 AQUAPHOR WATER SOFTENER Operation manual S550, S550 P1...
-
Page 2: Table Of Contents
Congratulations on your purchase of a high quality filter for softening and deferrization of water Aquaphor. The Aquaphor water softener filter (hereinafter referred to as the softener) is a high-performance device that removes high concentrations of hardness salts, iron and manganese, ensures long-term operation without replacing the sorbent, and minimizes salt and water consumption during regeneration. -
Page 3: Specifications
*** For the correct selection of the filter, use the operating capacity and pressure drop. Long-term operation at flows higher than those tested (more than 30 l/min) may lead to a decrease in cleaning efficiency. **** Only for version S550 P1. -
Page 4: Source Water Requirements
Source water requirements Source water requirements Softener S550 Softener S550 P1 Water hardness, mg-eq / l* no more than 24 Content of divalent iron, mg/l* no more than 10 Content of ferric iron, mg/l no more than 0.3 Manganese content, mg/l* no more than 3 рН... -
Page 5: General Softener Device
General softener device Appearance Valve Support panel Drain valve Gravity overflow Brine cabinet connection In Out Bypass valve Bypass knob Brine line Control valve Controller Salt cabinet Sorbent tank Lid removal To access the valve and controller, first remove the front part by grasping the cutout at the front of the lid, then re- move the rear lid by pulling it up and towards the front of the softener housing. -
Page 6: Bypass Valve
Bypass valve value of the compensated hardness, the current time, the regeneration time are entered and the parameters of the The softener is equipped with a bypass valve (fig. 1). The softener are selected, as well as the status of the device bypass valve will allow you to turn off the softener in the is viewed. -
Page 7: Controller Screen
Interruption of a running regeneration cycle (only used This function can be performed as part of the service in for system diagnostics). the following cases: • operation of the softener on water containing dis- 4. Press and hold the button for 5 seconds after the solved iron, regeneration process starts. -
Page 8: Installing A Softener
The concentration of dissolved iron should not exceed Water pressure should be within 0.14 to 0.7 MPa (1.4 – 7 mg/l for the S550 softener, and it is also important to 7 bar). For stable suction of the brine during regeneration, know what form it is in. -
Page 9: Step-By-Step Instructions For Installing A Softener
Sewerage pass valve will simplify the maintenance of the soften- er and will provide the supply of unsoftened water in The unit drain must be routed to a waste water outlet, case of emergency when the softener is dismantled. such as a drain or washing machine drain, in accordance It is also recommended to drain the first portions of with all local and national plumbing codes. - Page 10 Figure 3 Hard water for garden and other needs Well water Ground wire and clamps (only for copper pipes) Cold “soft” water Shut-o valve Hot “soft” water Municipal water Electrical outlet Water heater Air gap (5 cm minimum) Drain and overflow lines NOTE: Teflon tape or sealant must not be used when ATTENTION! To ensure the possibility of dismantling...
- Page 11 Figure 6 be raised to a height of up to 1.5 m above the drain hole of the device, while the pressure in the water supply must be at least 0.275 MPa (2.75 bar). Gravity overflow connection • The drain line may be extended with a pipe or hose of at least 3/4”.
-
Page 12: Controller Setup
Compensated hardness = 342 + (3+1) * 85 = 682 After adding salt, including adding after salt is complete- If you have any questions, please contact Aquaphor sup- ly used up, wait at least two hours before starting regen- port. -
Page 13: Mode Of Enhanced Washing From Iron
Mode of enhanced NOTE: More frequent regenerations help the softener to recover more effectively from iron. washing from iron Unit switching: gallon / liter Step 1. Turning on / off the enhanced iron Press C to switch gallon/liter units. The changes will be washing mode displayed on the screen as gallons or liters. -
Page 14: Safety Regulations
Do not disassemble your Softener subject to commercial use limitations. nor open its housing! • Aquaphor is not responsible for the cost of removal, Do not use the Softener and the power supply in case of return (shipping) and/or reinstallation of products. - Page 15 Damage or loss resulting from acts which are not the and/or ion exchange resin) is not more than 5 years from fault of Aquaphor or which the Product is not specified the date of sale (determined by the shop stamp in this to tolerate.
-
Page 16: Troubleshooting
Troubleshooting Probable Cause Solution Problem: No soft water output after softener regeneration There is no salt in the brine tank Add salt Solids in the brine tank clogged the brine line, brine Dismantle the brine line together with the air cut-off valve, air check valve or injector valve Air check. - Page 17 Probable Cause Solution Excess water in brine tank Problem: Drain line clogged, kinked, or frozen Remove the blockage, straighten the kink in the drain line Clogged brine line, brine line flow restrictor or Air check Clean the brine line, brine line flow restrictor and air valve check valve.
-
Page 19: Warranty Coupon Aquaphor Softener
The Quality Management System is certified according to ISO 9001. The manufacturer reserves the right to make improvements to the design of the Aquaphor water softener without being mentioned in this Manual. Manufacturer: AQUAPHOR INTERNATIONAL OÜ, L. Tolstoi 2A, Sillamäe, Estonia, 40231. www.aquaphor.com... - Page 20 Aquaphor water softener models: S550 S550 P1 The number of the Aquaphor water softener model, the manufacturing and quality control date, as well as the product’s serial number are indicated on a special sticker on this page.
