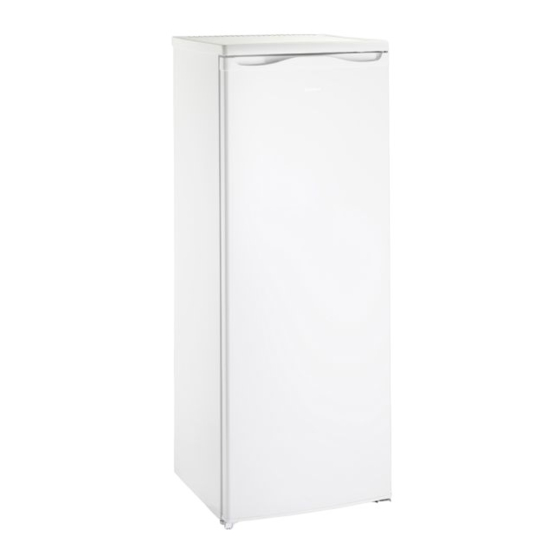

- Page 1 INSTRUCTION MANUAL UPRIGHT LARDER T55L2W...
- Page 2 Welcome Dear users, this manual contains the product’s basic knowledge, how to use it, fault diagnosis and basic troubleshooting methods. In order to better understand and use this product, please take good care of this manual and read it carefully. Help and Guidance If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these...
-
Page 3: Table Of Contents
Contents Safety Instructions Product Features III. Preparations for Use Functions Instructions For Food Storage Maintenance and Cleaning (Inc Reversing Door Swing) VII. Troubleshooting VIII. Certifications Product Support Guarantee * Varying with Different Products... -
Page 4: Safety Instructions
I. SAFETY INSTRUCTIONS WARNING: It is hazardous for anyone other than authorised service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock, do not attempt to repair this appliance yourself. WARNING: Risk of fire / flammable materials. - Page 5 unless they are recommended by the manufacturer. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 Electrical Supply Connection • Connect the appliance to the electrical supply (220-240 V ~ 50 Hz) with the plug and lead, which are fitted. • Connections to the mains supply should be in accordance with local regulations. • DO NOT use plug adapter. •...
- Page 7 Climate Range The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, the room temperature in which the appliance is working) the operation of the appliance is optimal (proper). Climate range Permissible ambient temperature from +10°C to +32°C...
-
Page 8: Product Features
II. Product Features This larder is equipped with manual knob controls on the inside wall of the larder. This Larder is for the storage for fresh food storage, such as fruits, vegetables, eggs, milk and cooked foods. • Green technology The freon-free refrigerant and foaming insulation materials are used for this larder, causing no damage to the ozone layer and having a very small impact on global warming, therefore the fridge is an environmentally friendly product. - Page 9 Larder Diagram Note: Due to technological innovation, the product descriptions in this manual may not be completely consistent with your larder. Details are in accordance with the real product.
-
Page 10: Preparations For Use
III. Preparations for use Installation location: 1. Ventilation condition When installing your larder, ensure it is in a well ventilated location. Do not install the larder near any heat source such as a cooker. Avoid locating the larder in direct sunlight, this will ensure you reduce the energy consumption of the appliance. - Page 11 3. Level ground Place the larder on a solid and flat ground (floor) to keep it stable, or else it will give rise to vibration and noise. Unobstructed ventilation shall be maintained around the appliance or in an embedded structure. Preparations for use 1.
-
Page 12: Functions
IV. Functions The temperature of the larder is controlled by the control panel mounted inside the larder compartment. Temperature Selection The temperature of the appliance can be adjusted by turning the thermostat dial. • The thermostat can be set between 1 and 7 •... -
Page 13: Instructions For Food Storage
V. Instructions for food storage Precautions for use • The appliance might not operate consistently (if there is a possibility of defrosting or temperature becoming too warm in the frozen food compartment) when running for an extended period of time below the cold limit of the temperature range for which the refrigerating appliance is designed •... - Page 14 Categorised storage of foods Foods should be stored by category, with the foods you eat every day placed in front of the shelf, so that the door open duration can be shortened and food spoilage due to expiration can be avoided. Energy-saving tips: Allow hot food to cool down to the room temperature before putting it in the refrigerator.
- Page 15 Moving your Larder/Fridge/Freezer • Location Do not place your larder near a heat source, e.g. cooker, boiler or radiator. Avoid it from direct sunlight in out-buildings or sun lounges. • Leveling Make sure to level your larder using the front leveling feet. If not level, the larder door gasket and sealing performance will be affected, or it may lead to the operating failure of your larder.
-
Page 16: Maintenance And Cleaning (Inc Reversing Door Swing)
VI. Maintenance and cleaning Before cleaning, turn off power first then unplug the appliance from the wall socket. Do not plug in or pull plug out with wet hands, because there is a risk of electric shock and injury. Do not spill water directly on the larder, to avoid rust, electricity leakage and accidents. - Page 17 Defrosting After a period of use, a thin layer of frost will be formed on the larder compartment inner wall (or evaporator) surface, which may affect the refrigeration performance if exceeding 5mm in thickness. In such case, you need to gently scrape the frost off using an ice scraper rather than the metal or sharp object.
-
Page 18: Troubleshooting
VII. Trouble Shooting With regard to the following small faults, not every failure needs to be fixed by the technical service personnel; you can try to solve the problem by referring to table below. CASE INSPECTION SOLUTIONS Completely non- refrigeration •... - Page 19 Note: If the trouble shooting advice does not resolve your problem, do not attempt to dissemble or repair this appliance. Repairs carried out by an inexperienced person may cause injury or serious malfunctioning. Contact your after sales service provider. This product should be serviced by an authorised engineer with only genuine spare parts.
-
Page 20: Certifications
VIII. Certifications Electrical information This electrical appliance must be grounded. This product is equipped with a plug, which is suitable for all houses equipped with sockets meeting the current specifications. If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of by a qualified electrician. -
Page 21: Product Support
IX. Product Support Declaration of conformance to product standards This appliance conforms to all relavant standards applicable to domestic appliances sold in the UK Disposal This appliance/fitting is marked A according to the European directive 2012/19/ EU on Waste Electrical - and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. -
Page 22: Guarantee
Guarantee We, Teknix, undertake that if within 24 months of the date of purchase this appliance or any part thereof is proven to be defective by reason of mechanical or electrical failure we will at our discretion repair or replace the same free of any charge for labour, materials or carriage on condition that: •...
