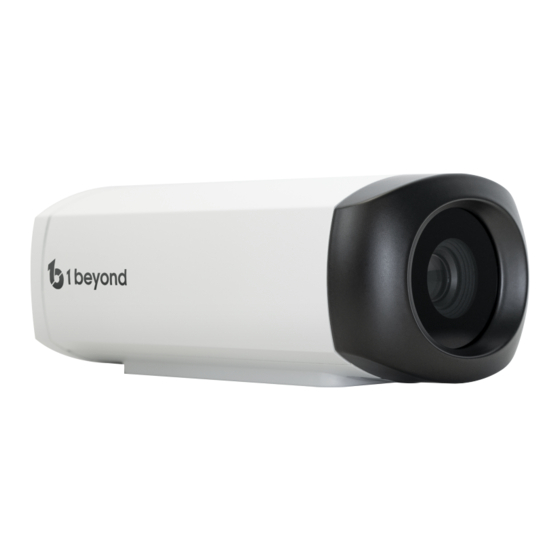

Crestron IV-CAMFL-N-W-1B Product Manual

1 beyond falcon™ presenter tracking camera, eptz, 2x digital zoom, ndi®|hx compatible
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IV-CAMFL-N-W-1B
1 Beyond Falcon™ Presenter Tracking
Camera, ePTZ, 2x Digital Zoom, NDI®|HX
Compatible
Product Manual
Crestron Electronics, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IV-CAMFL-N-W-1B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron IV-CAMFL-N-W-1B

Summary of Contents for Crestron IV-CAMFL-N-W-1B

  • Page 1 IV-CAMFL-N-W-1B 1 Beyond Falcon™ Presenter Tracking Camera, ePTZ, 2x Digital Zoom, NDI®|HX Compatible Product Manual Crestron Electronics, Inc.
  • Page 2 United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

  • Page 3: Table Of Contents

    Tracking Settings Advanced Settings On-Screen (OSD) Menu Reserved Presets VISCA Commands Start/Stop Tracking ACK / Completion Messages Error Messages Commands Inquiry Commands Troubleshooting Resources Crestron Support and Training Product Certificates Related Documentation Product Manual — Doc. 9321A Contents • iii...
  • Page 4 iv • Contents Product Manual — Doc. 9321A...

  • Page 5: Overview

    The IV-CAMFL-N-W-1B is a powerful presenter tracking camera designed for small to medium size rooms. The IV-CAMFL-N-W-1B uses facial and motion detection to automatically track and frame the presenter.

  • Page 6: Features

    Manual Control Options Use VISCA over IP to control the camera with a Crestron® control system. 1B Cam Manager Software is included for easy configuration from a computer on the network. High Quality Video The camera uses a 4K full room view to intelligently and seamlessly track a presenter.

  • Page 7: Optional Manual Control

    Optional Manual Control With autotracking turned off, the camera operates like a standard PTZ camera and is controllable via USB or IP. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 7...

  • Page 8: Physical Description

    Physical Description The camera provides the following connectors and indicators. Front Rear 8 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 9: Specifications

    Specifications Product specifications for the Falcon IV-CAMFL-N-W-1B camera. Optics and Processing Image Sensor 1/2.5 in. CMOS, 8.57 megapixel Focal Length & Iris f=7.9 mm (ePTZ Camera) Field of View 68° - 41° (ePTZ Camera) Focus System Fixed Minimum Illumination 1 Lux...
  • Page 10 Height: 7-12 ft, Distance: 15-25 ft Mounting Color White ≥50dB Dimensions Dimensions 5.87 in. x 2.99 in. x 2.28 in. (149 mm x 76 mm x 58 mm) Weight 0.92 lb (0.42 kg) 10 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 11: Installation

    Do not directly expose the camera to rain, water, or high moisture. This camera is for indoor use only. In the Box Qty. Description IV-CAMFL-N-W-1B, 1 Beyond Falcon™ Presenter Tracking Camera, ePTZ, 2x Digital Zoom, NDI®|HX Compatible Additional Items 12VDC 1A power adapter Wall mount bracket...
  • Page 12 Qty. Description Allen key, 5 mm Tripod-style screws, 1/4-20 UNC (ISO 1222:2010) 12 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 13: Mounting

    Mount the camera as close as possible to the central axis of the area where the subject will be tracked. This is commonly the center of the back wall. Use the included wall mount to install the camera. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 13...
  • Page 14 3. Use the two tripod-style screws to affix the camera to the bracket. 4. Tilt the camera no more than 30° forward to ensure optimum pan and tilt accuracy. Use the included Allen key to make adjustments to the tilt function of the bracket. 14 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 15: Wiring

    PoE Power With PoE compatibility, the camera allows control, monitoring, and power input using a single Ethernet cable. To power the camera from your network switch, make sure that it is a PoE Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 15...

  • Page 16: Dc Power

    WARNING: Providing too little or too much power can damage the camera. For PoE, make sure the network port is configured for 9 W. For DC power, be sure to supply 12V to the camera. 16 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 17: Configuration

    A one-time configuration is required to tailor the tracking parameters to your environment. Once configured, the camera will work autonomously, and the software will not be required for operation. This section provides the following information: •   Configuration via the 1 Beyond Camera Manager •   VISCA Commands Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 17...

  • Page 18: Configuration Via The 1 Beyond Camera Manager

    1. Click Start Search to start scanning the network for 1 Beyond cameras. The camera appears with its IP address, MAC Address, camera name (for example, Falcon and serial number), and firmware version displayed. 18 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 19: Access Video Feeds

    In the Camera List, right-click on the camera name and select Close Up and Panorama to add the streams the multi view area. The tracking shot and the full-room view appear side-by-side. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 19...

  • Page 20: Tracking Settings

    To set up a Blocking Zone, click on one of the check boxes in the Blocking Zone area of the settings pane and draw the zone in your desired spot within the tracking zone. This process is identical to setting up the Tracking Zone. 20 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...
  • Page 21 Preset 1 determines how tightly the camera frames a presenter while tracking and determines the maximum amount of zoom and upwards tilt-motion of the tracking shot. Have someone act as a subject to determine the optimum camera position and zoom in. To set Preset 1: Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 21...
  • Page 22 Using the down-arrow, navigate to the COLORTONE option and click Enter to confirm your selection. 4. Cycle to the ONE PUSH option using the right-arrow button and select ONE PUSH TRIGGER to initiate the white balance adjustment. 22 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...
  • Page 23 The tracking shot moves to and zooms into the area where motion has occurred. As it is zooming in toward the position defined in Preset 1, the full-room view shows a red box around the presenter’s face once it has been detected. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 23...

  • Page 24: Advanced Settings

    Frame Rate Changes the camera’s frame rate. The frame rate of the IP video streams can be set independently. Refer to the 1 Beyond Camera Manager manual on how to adjust the RTSP stream settings. 24 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...
  • Page 25 Pan Speed This setting adjusts the speed of pan movement during tracking. This can be increased if presenters tend to be move active. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 25...
  • Page 26 VLC® player. 1. Launch VLC player and click Media > Open Network Stream. 2. Select Open Media > Network (tab) and enter the RTSP URL using the following syntax: rtsp://xx.xx.xx.xx:554/4.h264 26 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 27: On-Screen (Osd) Menu

    NOTE: Restoring the settings to factory default will not reset Address, Protocol, Baud Rate, Video Format and Mount settings. Likewise, tracking settings will remain unaffected. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 27...
  • Page 28 Used to adjust image sharpness in terms of both focus and contrast. BRIGHTNESS/CONTRAST/GAMMA Used to adjust image brightness and the properties of the camera’s automatic exposure adjustment features. DNR – Digital Noise Reduction 28 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 29: Reserved Presets

    These presets cannot be overwritten. Preset Number Function Start tracking Stop tracking Open OSD Menu Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 29...

  • Page 30: Visca Commands

    6y 04 FF Returned when a command which is being executed in a socket Canceled (y:Socket No.) specified by the cancel command is canceled. The completion message for the command is not returned. 30 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 31: Commands

    8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p: 0(Low)to 7 (High) Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s p,q,r,s: Zoom Position Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 31...
  • Page 32 8x 01 04 04 00 FF Manual Control of B Gain 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q p,q: B Gain 32 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...
  • Page 33 8x 01 04 0E 00 FF Exposure Compensation Amount Setting 8x 01 04 0E 02 FF Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q p,q: ExpComp Position Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 33...
  • Page 34 8x 01 06 08 02 FF IR receiver On/Off 8x 01 06 08 03 FF Information 8x 01 7E 01 18 02 FF Operation status display Display On/Off 8x 01 7E 01 18 03 FF 34 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...

  • Page 35: Inquiry Commands

    Inquiry Commands Command Inquiry Command Inquiry Packet Comments Packet CAM_PowerInq 8x 09 04 00 y0 50 02 FF y0 50 03 FF Off (Standby) y0 50 04 FF Internal power circuit error Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 35...
  • Page 36 50 03 FF CAM_ExpCompPosInq 8x 09 04 4E y0 50 00 00 0p p,q: ExpComp Position 0q FF CAM_BacklightModeInq 8x 09 04 33 y0 50 02 FF y0 50 03 FF 36 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...
  • Page 37 8x 09 06 08 y0 50 02 FF y0 50 03 FF Pan‐tiltMaxSpeedI 8x 09 06 11 FF y0 50 ww zz FF ww = Pan Max Speed zz = Tilt Max Speed Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 37...
  • Page 38 (CAM_Zoom Direct – p,q,r,s Zoom Position) Optical Zoom Ratio Optical Zoom Ratio 0000 1851 22BE 28F6 2D45 3086 3320 3549 371E 38B3 3A12 3B42 3C47 3D25 3DDF 3E7B 3EFB 3F64 3FBA 4000 38 • IV-CAMFL-N-W-1B Product Manual — Doc. 9321A...
  • Page 39 Exposure Comp (CAM_ExpComp) (CAM_ExpComp Direct – p,q ExpComp Position) 0000 1851 22BE 28F6 2D45 3086 3320 3549 371E 38B3 3A12 3B42 3C47 3D25 4000 Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 39...

  • Page 40: Troubleshooting

    Troubleshooting The following table provides troubleshooting information. If further assistance is required, contact Crestron's True Blue Support Team. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTIONS No video signal when powered Power supply failure Check power supply output using a multimeter. Power adapter Replace faulty power adapter.

  • Page 41: Resources

    Resources The following resources are provided for the IV-CAMFL-N-W-1B. NOTE: You may need to provide your Crestron.com web account credentials when prompted to access some of the following resources. Crestron Support and Training Crestron True Blue Support Crestron Resource Library Crestron Online Help (OLH) support.crestron.com/app/answers/detail/a_id/1001561...
  • Page 42 This page is intentionally left blank. Product Manual — Doc. 9321A IV-CAMFL-N-W-1B • 42...
  • Page 43 Product Manual — Doc. 9321A Crestron Electronics, Inc. 15 Volvo Drive, Rockleigh, NJ 07647 06/08/22 Tel: 888.CRESTRON Specifications subject to Fax: 201.767.7656 change without notice. www.crestron.com...
