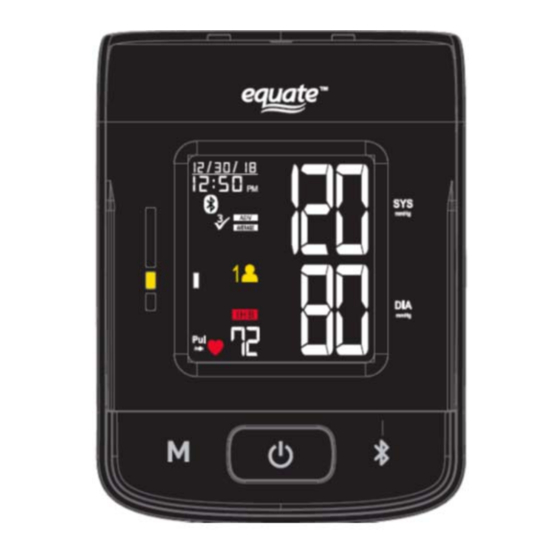

Instruction Manual
Automatic
Upper Arm Blood Pressure Monitor
Model No. HL858CE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL858CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for equate HL858CE

Summary of Contents for equate HL858CE

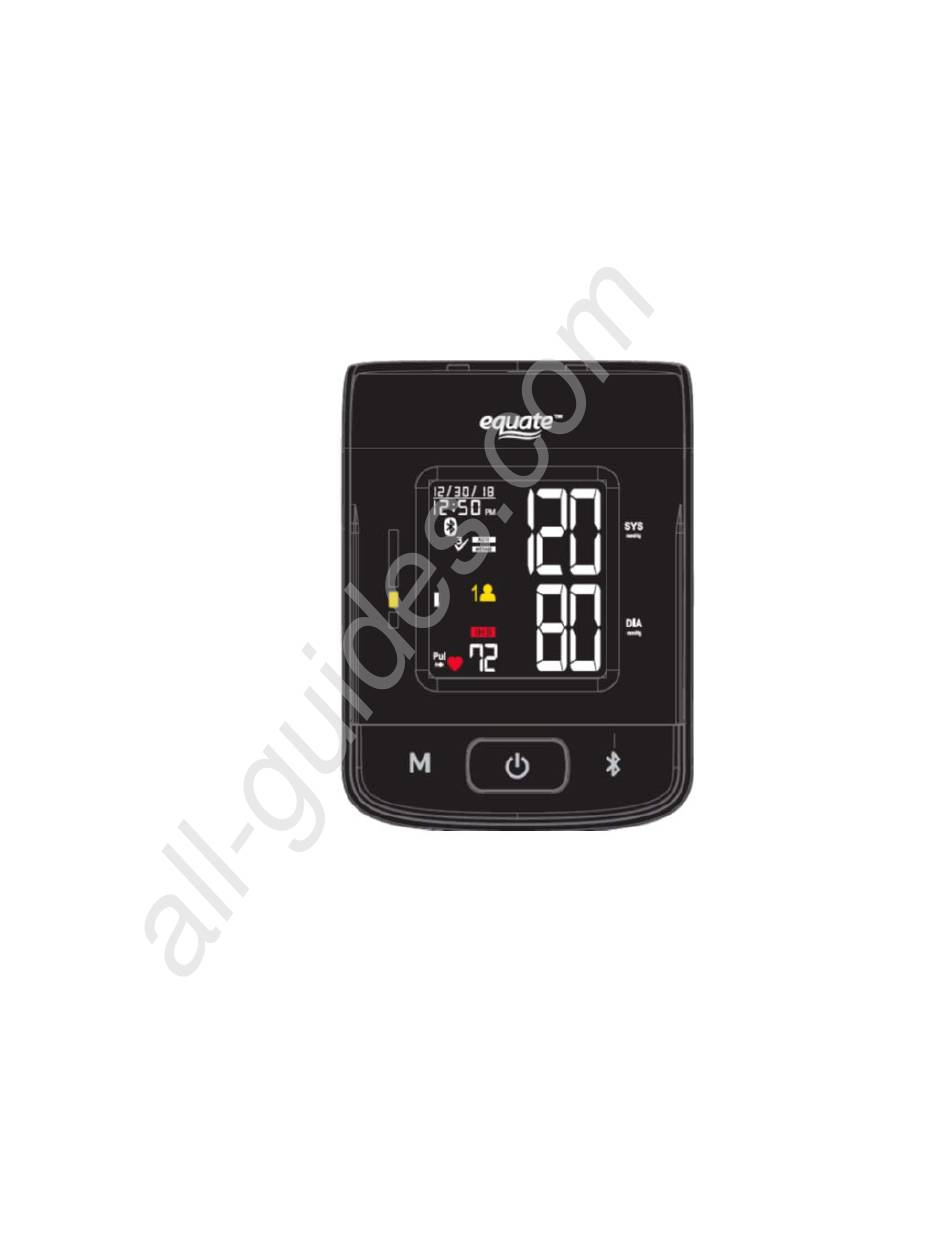

  • Page 1 All manuals and user guides at all-guides.com Instruction Manual Automatic Upper Arm Blood Pressure Monitor Model No. HL858CE...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method…………..……………………………………………………06 Accuracy……………………….…………………………………………………………………07 Precautions………………….…………………………………………………….…………….. 08 Device Overview……………………………………………………………………………….10 Symbol Definitions………………………………………………………………………….13 Features………………………………………………………………………………………….14 Installing Batteries………………………………………………………………………….21 Using the AC/DC adapter…………………………………………………………………22 Applying the Cuff…………………………………………………………………………….23 Measurement Procedure………….…………………………………………………….24 Bluetooth Transmission………………………………………………………………………29 Memory Function…………………………………………………………………………….31 Storage and Maintenance……………………………………………………………….34 Troubleshooting……………………………………………………………………………….35...

  • Page 3: Medical Disclaimer

    9 inches to 17 inches (approx.23 cm to 43 cm) and for home use. HL858CE detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the Risk Category Indicator will show the information with the readings on the screen for the user tracking their blood pressure level.

  • Page 4: About Blood Pressure

    All manuals and user guides at all-guides.com About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
  • Page 5 All manuals and user guides at all-guides.com About Blood Pressure A. AHA blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the American Heart Association (AHA 2017), as shown in the chart. However this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.

  • Page 6: Measurement Method

    All manuals and user guides at all-guides.com Measurement Method HL858CE Automatic Upper Arm Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your upper arm, just turn on the monitor and inflation automatically starts.

  • Page 7: Accuracy

    All manuals and user guides at all-guides.com Accuracy HL858CE Automatic Upper Arm Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL858CE Automatic Upper Arm Blood Pressure Monitors have...

  • Page 8: Precautions

    All manuals and user guides at all-guides.com Precautions * Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. * The device is designed for home use and not suitable for clinical use.
  • Page 9 All manuals and user guides at all-guides.com Precautions  For those who have had mastectomy surgery (especially whose’ lymph nodes removed), it’s recommend take a measurement on the unaffected side.  When used among medical electronic equipments on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.

  • Page 10: Device Overview

    All manuals and user guides at all-guides.com Device Overview Part names and product components  DC JACK 5.99V 2A AC/DC adapter LED Risk Category LCD Display Indicator BLUETOOTH MEMORY Button Button START / STOP Button ARM CUFF WITH TUBE AA “LR6” (1.5V) ALKALINE BATTERY X 4...
  • Page 11 All manuals and user guides at all-guides.com Devic ce O Overv view Right si de view Left side vie Advanc ed Averag SET bu utton Functio n Switch Arm Cu uff Hole DATE/T TIME button USER- SELECT Button *Cauti ！ Substit tution of a component...
  • Page 12 All manuals and user guides at all-guides.com Devic ce O Overv view Unit displa   Date: MM/DD/YY Time: hour/minu te w ith PM icon ystolic Rate Blueto ooth Symbo Advance ed Average Symbol Risk Catego ory Indicator ast 3 Memor verage User Symbol Low Bat...

  • Page 13: Symbol Definitions

    All manuals and user guides at all-guides.com Symb bol D Defin nition SYMBO Definit tions This symbo ol appears w when the ba attery powe er is extrem mely low or the polar rity reverse  We sugg gest you re eplace all b batteries w with new on...

  • Page 14: Features

    All manuals and user guides at all-guides.com Features  Risk Category Indicator (AHA 2017) This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into five stages (Normal, Elevated, Hypertension stage 1, Hypertension stage 2 and Hypertensive crisis) based on the blood pressure standards established by the American Heart Association (AHA).
  • Page 15 All manuals and user guides at all-guides.com Features Advanced Average Function  The Advanced Average Function automatically takes and averages 3 readings in a row, with 1 minute rest intervals in between each measurement. To deactivate this feature and take only a single reading, slide the switch on the back to the OFF position.
  • Page 16 Features  Bluetooth Data Transmission HL858CE features a built-in “Bluetooth Data Transmission” function, which enables the device automatically transmit measuring results to paired Bluetooth-enabled device after measurement. When connection established, BPM would transmit memory data such as Measure Date, Systolic, Diastolic and Pulse to the Bluetooth enabled device.
  • Page 17 All manuals and user guides at all-guides.com Features Application Software for Bluetooth  To fully utilize this feature, users need to ensure Bluetooth support of Wireless (usually under settings menu) on their Android or iOS device contactless data exchange. Then, download install ®...
  • Page 18 All manuals and user guides at all-guides.com Features Talking Function  The device features has Talking Function, which provides English only, for users to hear their measurements easily. This function is optional. Only under sleeping mode, user can switch the function on and off.
  • Page 19 All manuals and user guides at all-guides.com Features When Talking Function is on, the script is as follows: Voice Item Voice Content Please sit down and put the cuff on your left arm. Cuff placement must match the drawing on your cuff with the Wakeup tube centered down the middle on the inside of your left arm.
  • Page 20 All manuals and user guides at all-guides.com (if IHB detected) Please note that an irregular heartbeat has been detected. User 1/User 2 Memory Reading number XXX Systolic pressure XXX Diastolic pressure XXX Pulse XXX RECALL According to published standards, this reading was (Single) (Normal, Elevated, Hypertension stage 1, Hypertension stage 2, and Hypertensive crisis auto selected by...

  • Page 21: Installing Batteries

    All manuals and user guides at all-guides.com nsta alling g Bat tterie When LOW W BATTER RY SYMBO ppears on the disp play, or no othing ppears on n the disp play when n the pow wer is swit tched on, please c hange he batteri...

  • Page 22: Using The Ac/Dc Adapter

    All manuals and user guides at all-guides.com Using the AC/DC adapter This monitor is designed for operation with batteries or an AC/DC adapter. Please use only a compatible AC/DC adapter with required voltage and current as indicated in this manual. *Note ！...

  • Page 23: Applying The Cuff

    All manuals and user guides at all-guides.com Applying the Cuff  Press your brachial artery 2 ~ 3 cm (approx. 1 inch) above the elbow on the inside of your left arm to determine where your strongest pulse is.  Slide the end of arm cuff furthest from the tube through the metal ring to a loop.
  • Page 24 All manuals and user guides at all-guides.com Meas surem nt Pro oced dure Swit tch on the M onitor   A. Put in n 4 AA 1.5V (LR R6) alkal batter ries. B. All seg gments a ppear on the scree C.

  • Page 25: Measurement Procedure

    All manuals and user guides at all-guides.com Measurement Procedure  Turning Bluetooth Feature ON/OFF User can press and hold button seconds to turn the Bluetooth feature ON/OFF in Sleeping Mode. Bluetooth feature OFF Bluetooth feature ON Note: The Bluetooth Feature Switch default setting is ON ...
  • Page 26 All manuals and user guides at all-guides.com Meas surem nt Pro oced dure Press utton to s select the user (see e LCD Dis splays be low). C. Start t a Single e Measur rement: ke sure th he Advanc ced Avera age funct ion switc...
  • Page 27 All manuals and user guides at all-guides.com Meas surem nt Pro oced dure D. Start a an ADV A AVE Meas suremen nt: will ta ake cont inuative imes me asureme ents. Make sur re the Adv vanced Av verage fu nction sw witch turne ed on.
  • Page 28 All manuals and user guides at all-guides.com Measurement Procedure 7. After the monitor has determine your blood pressure and pulse rate, the cuff automatically deflates. Your systolic rate, diastolic rate, pulse rate and corresponding Risk Category Indicator and Irregular Heartbeat Detector (if any) are displayed with date and time for 1 minute and save results to memory automatically.

  • Page 29: Bluetooth Transmission

    Bluetooth-enabled Device, HL858CE Bluetooth Symbol will remain steady on the screen. 3. HL858CE can only pair up with one Bluetooth-enabled device at a time. To transmit measuring results to other Bluetooth-enabled device, please retry Steps 1 ~ 2. Press...
  • Page 30 All manuals and user guides at all-guides.com Bluetooth Transmission Date/Time Synchronization BPM’s Date/Time Setting synchronized Bluetooth -enabled device (e.g. smart phone) which ® downloaded and installed DailyChek application software. When Bluetooth connection is established, the Bluetooth -enabled device can send commend with the date/time information to BPM and the BPM’s date/time will be updated.

  • Page 31: Memory Function

    All manuals and user guides at all-guides.com Memory Function Storing data  After each measurement, the systolic and diastolic pressure, heart rate, Risk Category Indicator and Irregular heartbeat detector (if any) with date and time will be automatically stored. The monitor features 2 user memory capabilities. Each user holds the last 60 measurements, and automatically replacing the oldest data with new one.
  • Page 32 All manuals and user guides at all-guides.com Memory Function Recalling Data in Average Memory Mode  Select User first. Press key to enter Memory Mode, and LCD displays an average of the last 3 memories. (If an Advanced Average result included, the average of it will be included, but its individual measurements will be not.
  • Page 33 All manuals and user guides at all-guides.com Memory Function Erasing data  A. Select User first. B. Press button to enter Memory Mode. C. Press and hold buttons at the same time, the data will be erased automatically. LCD Displays “CLR” for 3 seconds. D.

  • Page 34: Storage And Maintenance

    All manuals and user guides at all-guides.com Storage and Maintenance General Use   Do not in any way twist the cuff.  Do not press button if the cuff is not wrapped around your upper arm.  Do not drop the product and avoid any strong impacts. ...

  • Page 35: Troubleshooting

    & measureme ent data. Meas suring Error r Symbol easure agai f HL858CE cannot be connected Plea ase press & paired Bluet tooth-enab bled device over butt ton for one e time to...

  • Page 36: Warranty

    All manuals and user guides at all-guides.com Warranty  Warranty For One Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation;...

  • Page 37: Specifications

    All manuals and user guides at all-guides.com Specifications Model Number HL858CE Measurement Oscillometric Method Rated Range of 0~300 mmHg Cuff Pressure Rated Range of 40~280 mmHg Determination Measurement Range of Heart 40~199 beats/minute Rate Pressure: ±3 mmHg Accuracy Pulse: ±5% Max.
  • Page 38 All manuals and user guides at all-guides.com Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 3.91dBm Data Throughput 0.2Mbps Expected Delay (Latency The latency time is less than 0.3ms from Range) in Wireless (RF) sender to receiver. Communication Channel Quality-Driven Data Rate (CQDDR) technology increases the...

  • Page 39: Note

    All manuals and user guides at all-guides.com Note xplanati on of sy mbols : Symbol Explanatio Health & Life e Information Refer to i nstruction ma anual/booklet TYPE BF A Applied Part Warning: Portable RF communicati ions equipmen nt (including peripherals such as ante enna cables a...
  • Page 40 (2) this device must accept any interference received, including interference that may cause undesired operation. *Note ！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL858CE essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits error...

  • Page 41: Appendix

    All manuals and user guides at all-guides.com Appendix Guidance and manufacturer’s declaration – electromagnetic emissions  The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions...
  • Page 42 All manuals and user guides at all-guides.com Appe endix ecommend ded separat tion distanc ces betwee en portable and mobile e RF  ommunicat tion equipm ment and th he device. The dev vice is intend ded for use i in an electro omagnetic en nvironment w...

  • Page 43: Blood Pressure Diary

    All manuals and user guides at all-guides.com Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse：...
