equate HL858CE Instruction Manual
Automatic upper arm blood pressure monitor
Hide thumbs
Also See for HL858CE:
- Instruction manual (44 pages) ,
- Instruction manual (43 pages) ,
- Instruction manual (43 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for equate HL858CE
Summary of Contents for equate HL858CE
- Page 1 Instruction Manual Automatic Upper Arm Blood Pressure Monitor Model No. HL858CE...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Measurement Method…………..……………………………………………………06 Accuracy……………………….…………………………………………………………………07 Precautions………………….…………………………………………………….…………….. 08 Device Overview……………………………………………………………………………….10 Symbol Definitions………………………………………………………………………….13 Features………………………………………………………………………………………….14 Installing Batteries………………………………………………………………………….21 Using the AC/DC adapter…………………………………………………………………22 Applying the Cuff…………………………………………………………………………….23 Measurement Procedure………….…………………………………………………….24 Bluetooth Transmission………………………………………………………………………29 Memory Function…………………………………………………………………………….31 Storage and Maintenance……………………………………………………………….34 Troubleshooting……………………………………………………………………………….35 Warranty………………………………………….……………………………………………….36 Specifications………………………………………………………………………………….37 Note………………………………………………………………………………………….…….39 Appendix…………………………………………………………………………………….…….41... -
Page 3: Medical Disclaimer
9 inches to 17 inches (approx.23 cm to 43 cm) and for home use. HL858CE detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the Risk Category Indicator will show the information with the readings on the screen for the user tracking their blood pressure level. -
Page 4: About Blood Pressure
About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure A. AHA blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the American Heart Association (AHA 2017), as shown in the chart. However this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.
-
Page 6: Measurement Method
Measurement Method HL858CE Automatic Upper Arm Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your upper arm, just turn on the monitor and inflation automatically starts. -
Page 7: Accuracy
Accuracy HL858CE Automatic Upper Arm Blood Pressure Monitor has been clinically tested against scientific device called mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL858CE Automatic Upper Arm Blood Pressure Monitors have performed equivalent to measurements taken with this scientific device and are within the accuracy limits prescribed by the American National Standard for Electronic or Automated Sphygmomanometers. -
Page 8: Precautions
Precautions * Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. * The device is designed for home use and not suitable for clinical use. * This monitor is not intended for use in the MR environment. ... - Page 9 Precautions For those who have had mastectomy surgery (especially whose’ lymph nodes removed), it’s recommend take a measurement on the unaffected side. When used among medical electronic equipments on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.
-
Page 10: Device Overview

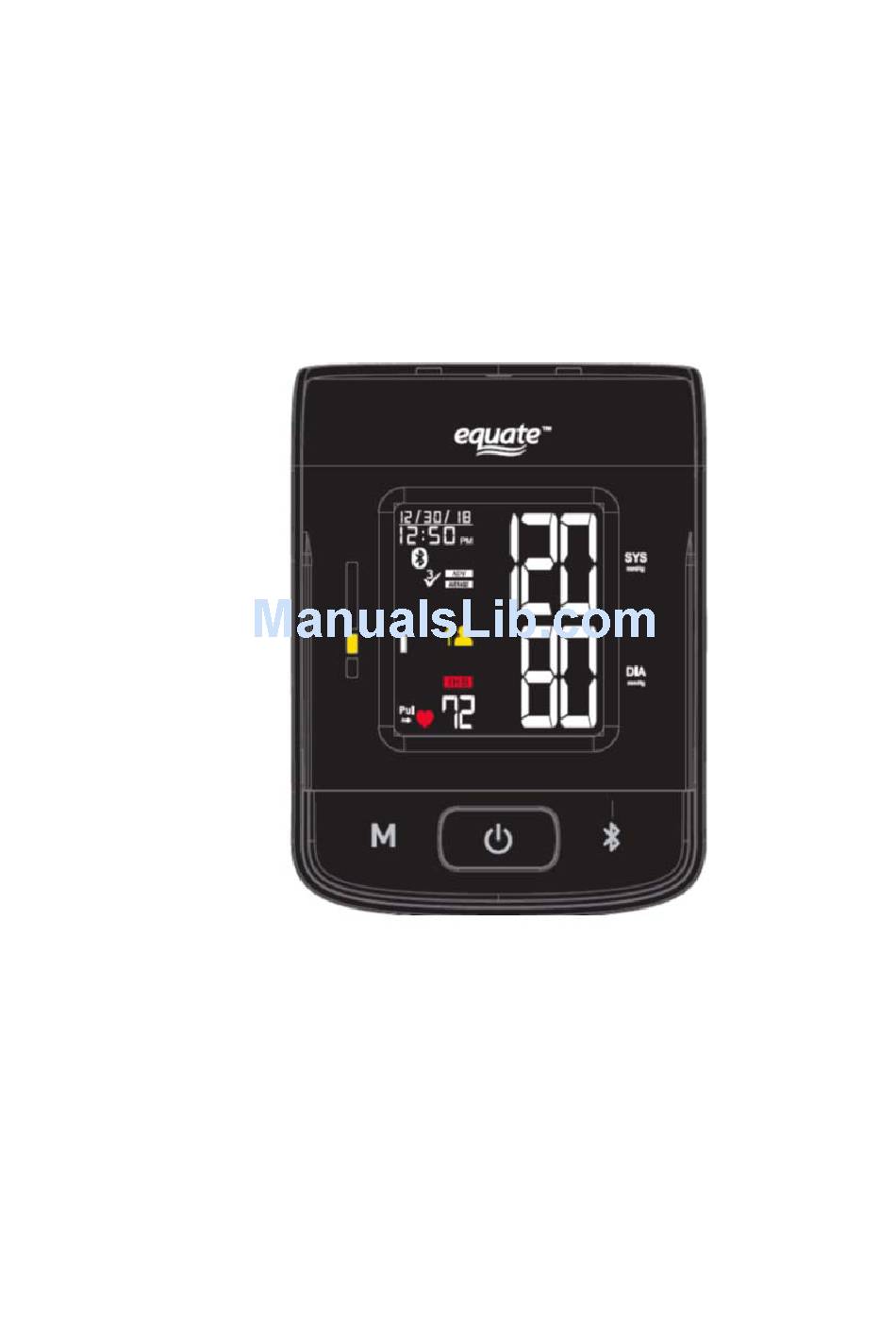

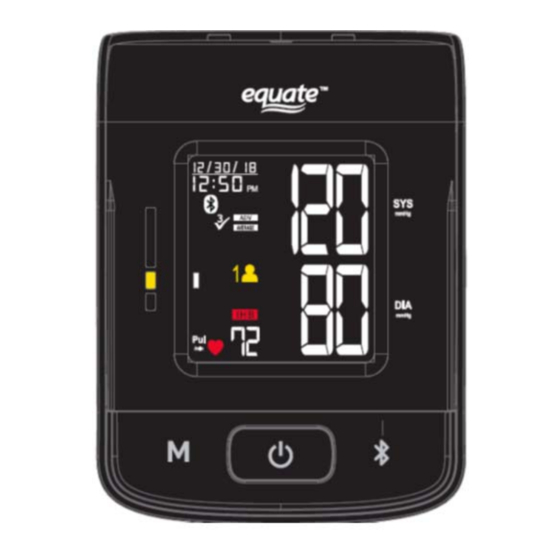

Device Overview Part names and product components DC JACK 5.99V 2A AC/DC adapter LED Risk Category LCD Display Indicator BLUETOOTH MEMORY Button Button START / STOP Button ARM CUFF WITH TUBE AA “LR6” (1.5V) ALKALINE BATTERY X 4... - Page 11 Devic ce O Overv view Right si de view Left side vie Advanc ed Averag SET bu utton Functio n Switch Arm Cu uff Hole DATE/T TIME button USER- SELECT Button *Cauti ！ Substit tution of a component t different f from that s upplied mig ght result in...
- Page 12 Devic ce O Overv view Unit displa Date: MM/DD/YY Time: hour/minu te w ith PM icon ystolic Rate Blueto ooth Symbo Advance ed Average Symbol Risk Catego ory Indicator ast 3 Memor verage User Symbol Low Bat ttery Symbo iastolic Rate Error Symbo Irregul...
-
Page 13: Symbol Definitions
Symb bol D Defin nition SYMBO Definit tions This symbo ol appears w when the ba attery powe er is extrem mely low or the polar rity reverse We sugg gest you re eplace all b batteries w with new on nes, and ... -
Page 14: Features
Features Risk Category Indicator (AHA 2017) This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into five stages (Normal, Elevated, Hypertension stage 1, Hypertension stage 2 and Hypertensive crisis) based on the blood pressure standards established by the American Heart Association (AHA). -
Page 15: Irregular Heartbeat Detector
Features Advanced Average Function The Advanced Average Function automatically takes and averages 3 readings in a row, with 1 minute rest intervals in between each measurement. To deactivate this feature and take only a single reading, slide the switch on the back to the OFF position. - Page 16 Features Bluetooth Data Transmission HL858CE features a built-in “Bluetooth Data Transmission” function, which enables the device automatically transmit measuring results to paired Bluetooth-enabled device after measurement. When connection established, BPM would transmit memory data such as Measure Date, Systolic, Diastolic and Pulse to the Bluetooth enabled device.
- Page 17 Features Application Software for Bluetooth To fully utilize this feature, users need to ensure Bluetooth support of Wireless (usually under settings menu) on their Android or iOS device contactless data exchange. Then, download install ® “DailyChek ” application software from Google Play on the Bluetooth-enabled device which is compatible with Android 6.0 or iOS 7.0 or above.
- Page 18 Features Talking Function The device features has Talking Function, which provides English only, for users to hear their measurements easily. This function is optional. Only under sleeping mode, user can switch the function on and off. Under sleeping mode, by pressing “ ”...
- Page 19 Features When Talking Function is on, the script is as follows: Voice Item Voice Content Please sit down and put the cuff on your left arm. Cuff placement must match the drawing on your cuff with the Wakeup tube centered down the middle on the inside of your left arm.
- Page 20 (if IHB detected) Please note that an irregular heartbeat has been detected. User 1/User 2 Memory Reading number XXX Systolic pressure XXX Diastolic pressure XXX Pulse XXX RECALL According to published standards, this reading was (Single) (Normal, Elevated, Hypertension stage 1, Hypertension stage 2, and Hypertensive crisis auto selected by record) (if IHB detected)
-
Page 21: Installing Batteries
nsta alling g Bat tterie When LOW W BATTER RY SYMBO ppears on the disp play, or no othing ppears on n the disp play when n the pow wer is swit tched on, please c hange he batteri ies. Replace al l the batt teries wit... -
Page 22: Using The Ac/Dc Adapter
Using the AC/DC adapter This monitor is designed for operation with batteries or an AC/DC adapter. Please use only a compatible AC/DC adapter with required voltage and current as indicated in this manual. *Note ！ No batteries are needed when operating with an AC/DC adapter. ‧... -
Page 23: Applying The Cuff
Applying the Cuff Press your brachial artery 2 ~ 3 cm (approx. 1 inch) above the elbow on the inside of your left arm to determine where your strongest pulse is. Slide the end of arm cuff furthest from the tube through the metal ring to a loop. - Page 24 Meas surem nt Pro oced dure Swit tch on the M onitor A. Put in n 4 AA 1.5V (LR R6) alkal batter ries. B. All seg gments a ppear on the scree C. The m monitor w ill autom atically tu to slee...
-
Page 25: Measurement Procedure
Measurement Procedure Turning Bluetooth Feature ON/OFF User can press and hold button seconds to turn the Bluetooth feature ON/OFF in Sleeping Mode. Bluetooth feature OFF Bluetooth feature ON Note: The Bluetooth Feature Switch default setting is ON Taking a Measurement Check and select functions of Advanced Average Mode if needed. - Page 26 Meas surem nt Pro oced dure Press utton to s select the user (see e LCD Dis splays be low). C. Start t a Single e Measur rement: ke sure th he Advanc ced Avera age funct ion switc h turned off.
- Page 27 Meas surem nt Pro oced dure D. Start a an ADV A AVE Meas suremen nt: will ta ake cont inuative imes me asureme ents. Make sur re the Adv vanced Av verage fu nction sw witch turne ed on. With th e cuff w wrapped a...
- Page 28 Measurement Procedure 7. After the monitor has determine your blood pressure and pulse rate, the cuff automatically deflates. Your systolic rate, diastolic rate, pulse rate and corresponding Risk Category Indicator and Irregular Heartbeat Detector (if any) are displayed with date and time for 1 minute and save results to memory automatically.
-
Page 29: Bluetooth Transmission
Bluetooth-enabled Device, HL858CE Bluetooth Symbol will remain steady on the screen. 3. HL858CE can only pair up with one Bluetooth-enabled device at a time. To transmit measuring results to other Bluetooth-enabled device, please retry Steps 1 ~ 2. Press... - Page 30 Bluetooth Transmission Date/Time Synchronization BPM’s Date/Time Setting synchronized Bluetooth -enabled device (e.g. smart phone) which ® downloaded and installed DailyChek application software. When Bluetooth connection is established, the Bluetooth -enabled device can send commend with the date/time information to BPM and the BPM’s date/time will be updated.
-
Page 31: Memory Function
Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate, Risk Category Indicator and Irregular heartbeat detector (if any) with date and time will be automatically stored. The monitor features 2 user memory capabilities. Each user holds the last 60 measurements, and automatically replacing the oldest data with new one. - Page 32 Memory Function Recalling Data in Average Memory Mode Select User first. Press key to enter Memory Mode, and LCD displays an average of the last 3 memories. (If an Advanced Average result included, the average of it will be included, but its individual measurements will be not.
-
Page 33: Erasing Data
Memory Function Erasing data A. Select User first. B. Press button to enter Memory Mode. C. Press and hold buttons at the same time, the data will be erased automatically. LCD Displays “CLR” for 3 seconds. D. To confirm deletion, press button and no data should appear. -
Page 34: Storage And Maintenance
Storage and Maintenance General Use Do not in any way twist the cuff. Do not press button if the cuff is not wrapped around your upper arm. Do not drop the product and avoid any strong impacts. ... -
Page 35: Troubleshooting
& d keep stea ady. measureme ent data. Meas suring Error r Symbol easure agai f HL858CE cannot be connected Plea ase press & paired Bluet tooth-enab bled device over butt ton for one e time to... -
Page 36: Warranty
Warranty Warranty For One Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer’s recommended maintenance;... -
Page 37: Specifications
Specifications Model Number HL858CE Measurement Oscillometric Method Rated Range of 0~300 mmHg Cuff Pressure Rated Range of 40~280 mmHg Determination Measurement Range of Heart 40~199 beats/minute Rate Pressure: ±3 mmHg Accuracy Pulse: ±5% Max. Inflation Automatic Inflation (Air Pump) Deflation... - Page 38 Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 3.91dBm Data Throughput 0.2Mbps Expected Delay (Latency The latency time is less than 0.3ms from Range) in Wireless (RF) sender to receiver. Communication Channel Quality-Driven Data Rate (CQDDR) technology increases the Integrity effective data rate and integrity in noisy environments.
-
Page 39: Note
Note xplanati on of sy mbols : Symbol Explanatio Health & Life e Information Refer to i nstruction ma anual/booklet TYPE BF A Applied Part Warning: Portable RF communicati ions equipmen nt (including peripherals such as ante enna cables a and external To avoid inaccurate res... - Page 40 (2) this device must accept any interference received, including interference that may cause undesired operation. *Note ！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL858CE essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits error...
-
Page 41: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions RF energy is used only to maintain device’s operation. - Page 42 Appe endix ecommend ded separat tion distanc ces betwee en portable and mobile e RF ommunicat tion equipm ment and th he device. The dev vice is intend ded for use i in an electro omagnetic en nvironment w where radiat ted RF distur rbances...
-
Page 43: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
