- Page 1 ®...
- Page 2 Look at the end of your box. See that little sticker with a serial number and a barcode? Peel it off and put it here for safe keeping. Or don’t. IMPORTANT DO NOT USE YOUR TRIPOD UNTIL YOU HAVE READ THESE INSTRUCTIONS.

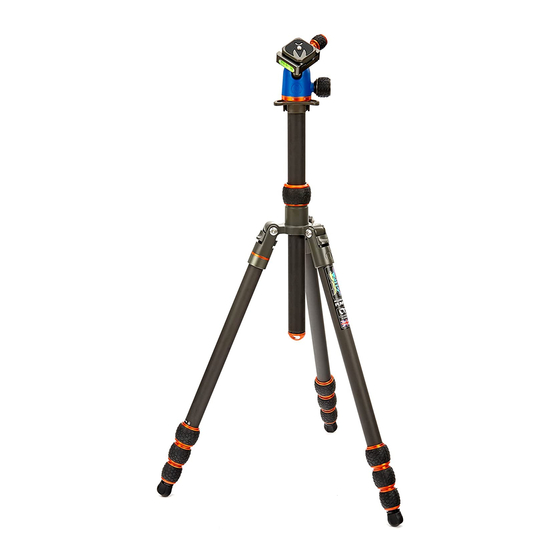

- Page 3 All Punks 2.0 tripods have 3 detachable legs. Your tripod has orange rings around the top of each leg, this is so you see the legs are detachable. ANATOMY OF A TRIPOD Central Column Tri-Mount Plate Collar Friction Lock (column)
- Page 4 ANATOMY OF AN AIRHED All Punks 2.0 Tripods ship with the AirHed Neo 2.0. The clamp has an orange locking knob (2) for releasing the Plate and a black knob (6) which locks and unlocks the ball movement. The panning knob (on the rear of the head) locks and unlocks the pan base.
-
Page 5: Basic Functionality
Basic Functionality The Tri-Mount Plate comes with three hollow ends (a), for connecting your strap, carabiner, other compatible devices. The central bolt can be removed and reversed, as it has both 1/4” and 3/8” threads (b). In the base of the centre column is a D-Ring (c), which is used to connect either your strap, for carrying, or the bag for ballast, using the carabiner (d). - Page 6 Basic Functionality To remove the centre column, unscrew the D-Ring (a), and the collar (b). You can then pull out the column (c), completely remove collar (b). Your Tri-Mount Plate (d) should be unscrewed from the other end of the column, and then carefully screwed directly to the canopy (e).
- Page 7 Legs, catches & locks In order to change the leg angle or to stow away your tripod you will need to pull down on the leg catch (a) maneuver the leg into the desired position and then release the catch. To open and extend the tripod legs simply grip the leg locks (b) in your hand quarter turn, loosening the legs allowing you to select a desired height.
- Page 8 The Detachable Legs All three legs can be unscrewed directly from the leg hinge (a). You can screw one of the legs into the bottom of the detached centre column to make the monopod, without extra parts. Alternatively, you can screw your AirHed directly onto the detached leg for a shorter monopod.
-
Page 9: Warranty Information
Details of your warranty can be found at www.3leggedthing.com. Your warranty covers 3 Legged Thing products only. If you have a question or suspect you have a fault, contact us first at www.3leggedthing.com/support.
