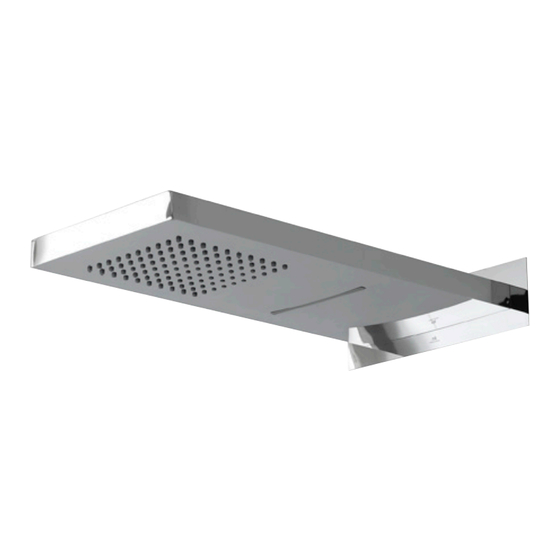

Summary of Contents for noken SQUARE 100141901
- Page 1 100141901_N183050314 Rain and cascade shower head SQUARE Carretera CV-20 km.2 · 12540 Vila-real · Castellón · Spain Tel: +34 964 50 64 50 - Fax: +34 964 50 67 93 e-mail: noken@noken.com · www.noken.com...
- Page 2 - Please read these instructions carefully before starting installation and retain it for future reference. Please leave this instructions with the end user. - Remove all packaging and check the product for missing parts and damages before starting the installation. - Any alterations made to this product and its fittings may infringe the water regulations and will invalidate the guarantee.
- Page 4 " Drill four holes on the wall Insert four plastic spansile Ø5/16” x 1_3/16” screws. " Fix plate and concealed body Use screws to fix plate to the with screws. wall.
- Page 5 " Connect the inlet hoses to the Drill two holes with concealed body. Both inlets must diameter of 1_3/16” on be water supplied independently, the ceramic tiles. not combined. " Make sure the concealed pipes are at the same level with ceramic tile,at least not exceeding the ceramic tile.
- Page 6 Aim the shower head at watersupply connector Screw the nut until the shower head is fixed.
- Page 7 Connect the flexible hoses in the watersupply connector Install the cover with the screws...
- Page 8 7,3 - 72,5 PSI Working pressure 43,5 PSI Optimal pressure Maximum pressure 72,5 PSI Max. temperature 140ºF Stainless steel Material *We recommend the installation of the pressure valves where the high pressure is present...
- Page 9 WATERFALL Pressure FLOW (PSI) RATE (gpm) 0,00 0,00 7,25 1,50 14,50 2,10 29,01 2,45 43,51 2,50 58,01 2,50 72,52 2,50 PRESSURE (PSI) RAIN Pressure FLOW (PSI) RATE (gpm) 0,00 0,00 7,25 1,00 14,50 1,75 29,01 2,40 43,51 2,50 58,01 2,50 72,52 2,50 PRESSURE (PSI)
- Page 10 BRASSWARE AND ACCESSORIES First of all we thank you for buying our products which are manufactured to the highest standards. However in common with other products our brassware requires the correct cleaning and periodic maintenance. BRASSWARE SURFACES As stated in the norm DIN EN 248 the materials used to plate brassware are Chrome, Nickel, stainless steel, brass and others to leave a superior, easy to clean, pleasing finish.
- Page 12 FDP_30-1-0515-100141901-1019-2 www.noken.com Para consultar la garantía u otra información relativa a este producto, visitar nuestra web: For a warranty or other information on this product, visit our Web address: Pour obtenir une garantie ou d’autres informations sur ce produit, visitez notre site web...
