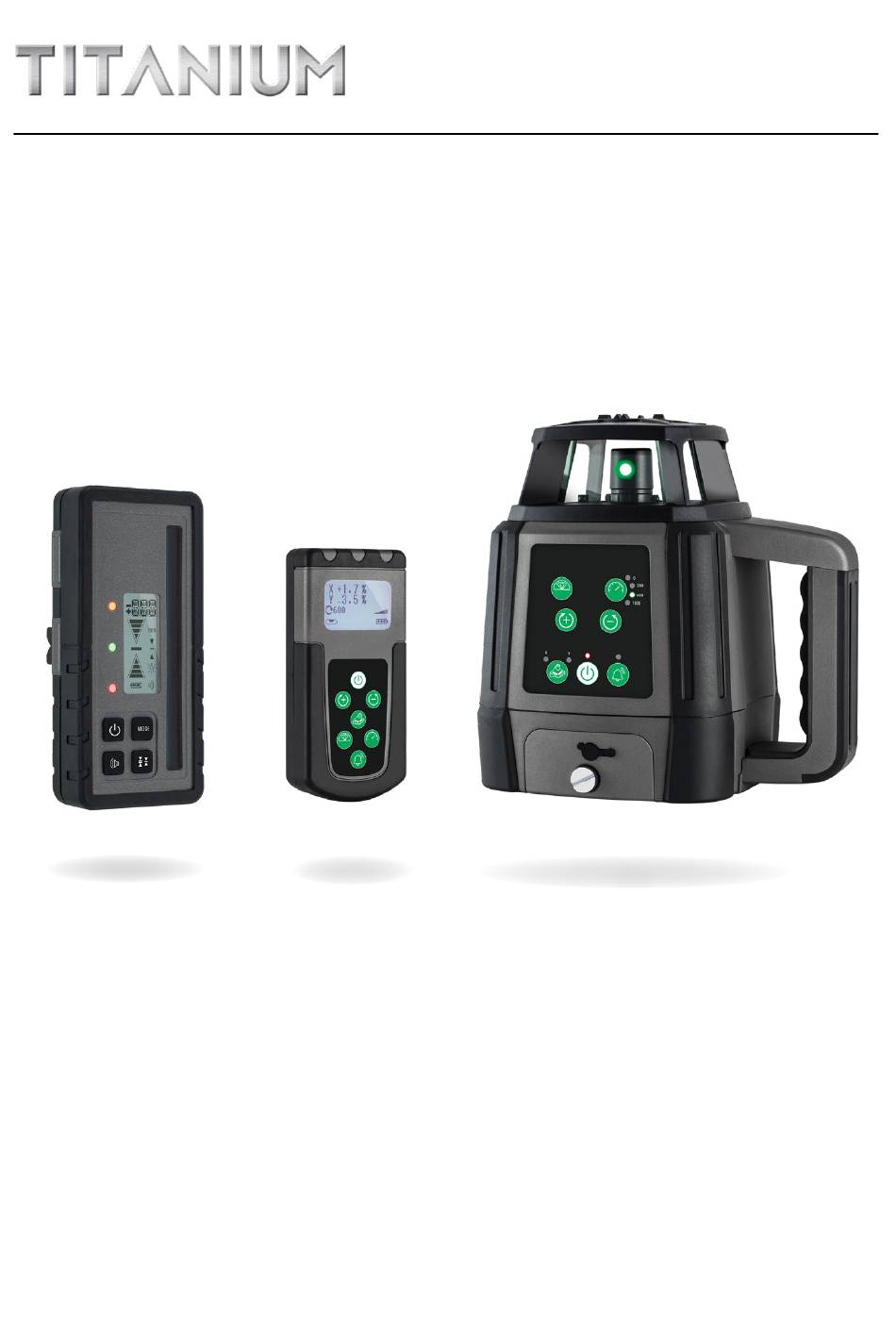

- Page 1 TRL-30GS Kit G R E E N R O T A R Y L A S E R Product Code: 88190 REVISION 2020.1.0 Instruction Manual...
-
Page 3: Item Checklist
• Do not let children come in contact with the laser. ITEM CHECKLIST Please ensure the following items are included with your laser level. If anything is missing please contact your retailer. 1 Titanium TRL-30GS 1000 TILT 2 Wireless remote control ALARM... -
Page 4: Laser Overview
LASER OVERVIEW 1 Rotating laser port 2 Protective lighthouse 3 Control panel 4 Rechargeable battery charging port 5 Battery compartment with rechargeable battery 6 Carry handle 7 5/8” x 11 thread for horizontal operation on a tripod 8 Padded feet for vertical operation on a flat surface 1000 9 Power button 10 Power indicator... -
Page 5: Operation
USING THE LASER (continued) HORIZONTAL MEASUREMENT SETUP Charging the rechargeable battery pack • Attach the desired adaptor head onto the charger. Level surface set up Insert the charger into the charging port located on the • Select a place as close and practical to the work site as •... - Page 6 USING THE LASER (continued) Tilt alarm • Once the laser level has levelled off, the tilt alarm can be enabled by pressing the tilt alarm button on the laser control panel or remote control. The tilt alarm indicator light will flash continuously whilst active. • If the laser level is disturbed while the alarm is active, the laser level will stop rotating and will need to be powered off and on again to reset to a level position.
-
Page 7: Remote Control Overview
REMOTE CONTROL REMOTE CONTROL OVERVIEW 1 LCD display screen 2 Power button 3 Grade adjustment / clockwise rotation button 4 Grade adjustment / counter clockwise rotation button 5 Automatic grade mode button 6 Scan mode button 7 Speed control button TILT ALARM 8 Tilt alarm button... -
Page 8: Detector Operation
MILLIMETRE DETECTOR & CLAMP (continued) DETECTOR LCD SCREEN OVERVIEW 1 Plus & minus indicator 6 Detection mode 2 Measurement 7 Brightness indicator 3 Arrow indicator 8 Battery indicator 4 Unit of measure 9 Speaker indicator 5 Centre alignment Fig. 2 POWER SUPPLY The detector is powered by one 9V alkaline battery. -
Page 9: Calibration Check
MOUNTING TO A CONSTRUCTION TRIPOD NOT INCLUDED A construction tripod (flat, domed or elevating) can • Place the laser level onto the tripod with the lighthouse be purchased from your nearest measurement tool facing upwards and mount the male 5/8” thread into the dealer. -
Page 10: Warranty
• Check that the laser level and detector are within the operating range. WARRANTY 3 YEAR STANDARD WARRANTY PERIOD All Titanium measurement tools are carefully checked and tested to our precise quality assurance standards. 1. The warranty period for your tool is 3 years We offer a warranty in accordance with from the date of purchase. -
Page 11: Customer Support
CUSTOMER SUPPORT SPECIFICATIONS To assist you with any queries or technical Specifications TRL-30GS questions please contact customer support. Product code 88190 Australia: 1300 658 338 New Zealand: 0800 367 527 Warranty 7 Years* United Kingdom: 0808 189 1152 Accuracy ±1mm at 30m (±3/64in / 0.04in at 100ft) All other countries / regions: Operating range... - Page 12 © 2020. Titanium Laser Tools...
