Quatro AF Series Operation & Maintenance Manual

Operations & Maintenance Manual
AF1000RNP and AF2000RNP
1.0 INTRODUCTION

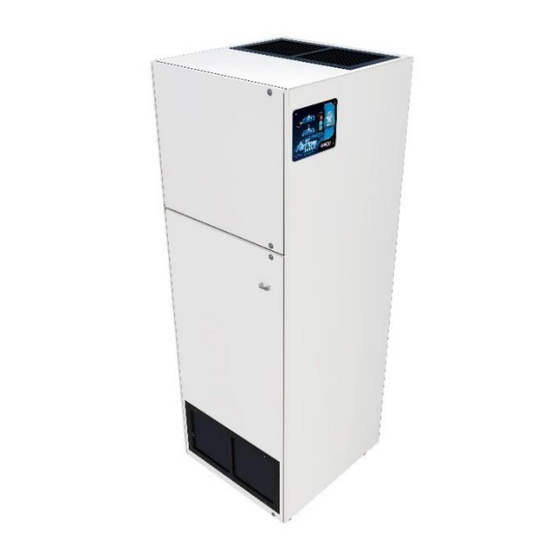

Congratulations! You are now the owner of a QUATRO AirFlow Series RNP system, an advanced effective air purifier, designed specifically to help protect the
human respiratory system. You can expect a noticeable improvement in air quality as the unit begins the process of reducing microscopic airborne particulate.
The RNP system was designed to provide flexibility in the field. It can be used with adjustable discharge grills for simple recirculation or it can be converted to a
negative pressure system by replacing the adjustable grill with 6"(AF1000RNP) or 10" (AF2000RNP) discharge collar which has been supplied.
This will allow the end user to exhaust clean air from the room to create a negative pressure environment.
2.0 PRECAUTION
Read all the instructions contained within this manual before operating this unit. Keep this manual, as it contains information for proper operation and
maintenance. Keep all fastening hardware tight to ensure that the unit is in good working condition. Familiarise yourself with the way in which filters
are removed, installed, and serviced. All filters must be in place whenever this machine is in operation. Use only on a grounded electrical circuit; do
not use any two-wire electrical prong adapters to defeat the three-pronged plug on the end of the cord. When servicing the motor, be careful when
touching the exterior of the motor as soon as it has been turned off; it may be hot enough to be painful or cause injury. They are built to operate at
higher temperatures. Do not substitute any other filters (particulate or chemical) for those supplied, as this will alter the unit efficiency. DO
NOT SERVICE MOTOR OR CONTROL PANEL UNLESS UNIT IS UNPLUGGED FROM RECEPTACLE (ITS POWER SUPPLY)!
3.0 PRINCIPLE OF OPERATION
The air is drawn in through an intake grille located at the bottom of unit. The air then passes through the particulate, HEPA and optional odor filters.
The clean air is then released through the top discharge grills into the controlled space. The AF iSeries Purifier features a threefold method of
operation; a) captures general particulate; b) HEPA filter removes microscopic particulate matter; c) Optional Chemical filters adsorbs, reacts or
scrubs toxic or nuisance gases (optional).
----------------------------------------------------------------
