Morvelli FHD22 User Manual

Security wi-fi camera
Hide thumbs Also See for FHD22:
Table of Contents

Advertisement

Quick Links

S
W
-F
c
ecurity
i
i
amera
m
FHD22
orvelli
U
M
ser
anUal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHD22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morvelli FHD22

Summary of Contents for Morvelli FHD22

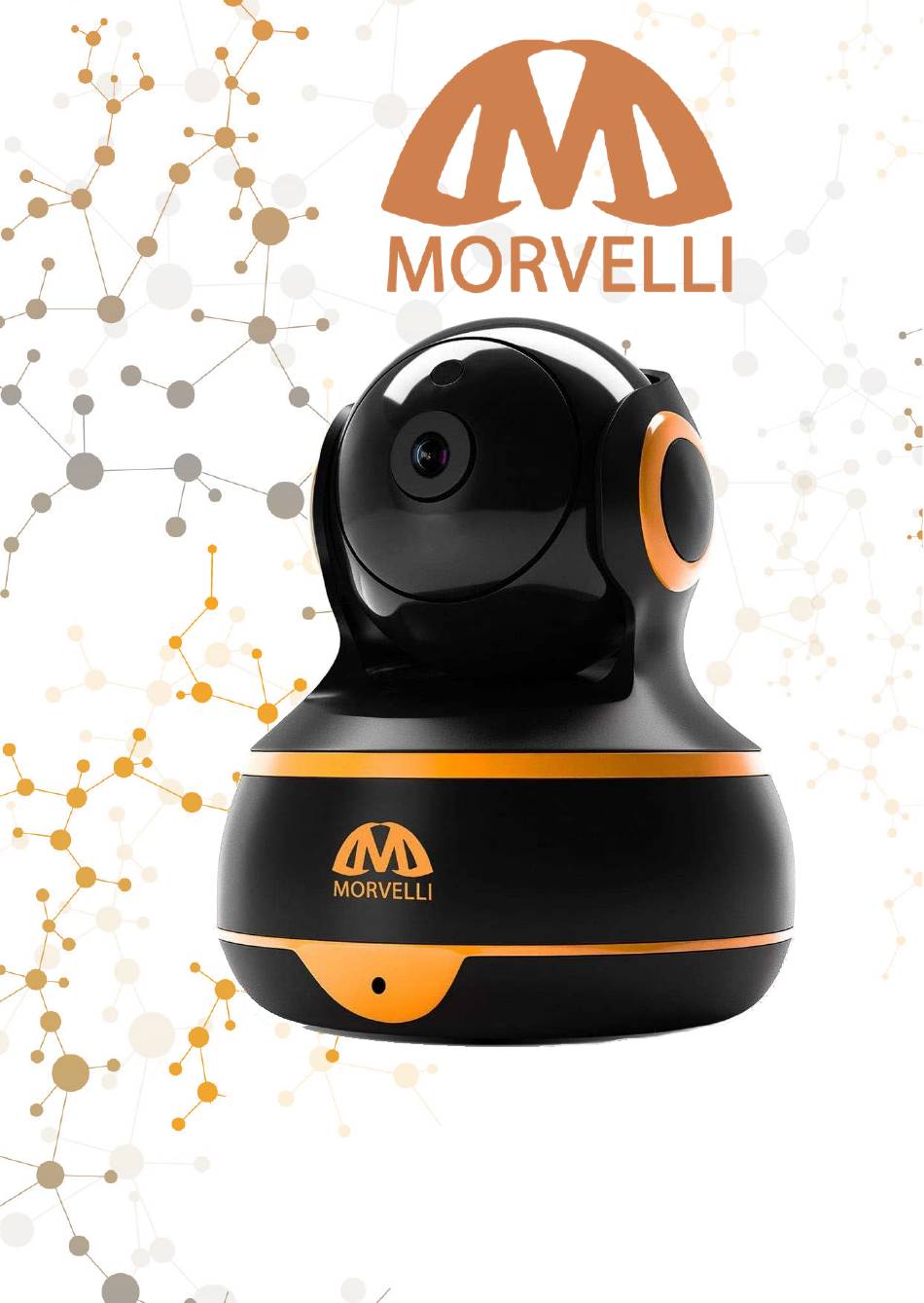

  • Page 1 FHD22 orvelli anUal...
  • Page 2 Website: Morvelli.com Support: support@morvelli.com Live Chat on Morvelli.com...

  • Page 3: Table Of Contents

    1. Contents……............2. Warranty Service……………………………..3. FAQ/Troubleshooting………………....4. Features and Device Overview……....4.1 Principles of Work......... 4.2 Camera Elements Description..... 4.3 Camera Sounds Description......5. Connection & Installation........5.1 Connection & Installation (iOS)..... 5.2 Connection & Installation (Android)....6. Settings and Control Device....... 6.1 Smart Life Main Menu........

  • Page 4: Warranty Service

    2. Warranty Service Thanks for your order and your trust. WiFi camera Morvelli FHD22 has a 12-month warranty. The warranty starts from the date of purchase of the camera. We will continue to improve quality of our product. If you have any problems in using our product, please contact us as soon as possible.

  • Page 5: Faq/Troubleshooting

    It may happen as the result turned on, it does not of a failed update installation. make any sounds To solve the problem, contact us via support@morvelli. com and we will send you the latest firmware and update instructions No flashing lights when...
  • Page 6 is plugged in, you need to reset (hold down the reset key on the back of the camera for 7-10 seconds) and try again 2) Make sure there are no stickers or dirt on the camera. 3) Make sure that the camera lens is directed exactly at the smartphone with the QR code, and not...
  • Page 7 The camera will not 1) Perhaps you have a router connect to my Wi-Fi (Wi-Fi network) that operates router at 5GHz. Solution: Connect the camera via Ethernet cable or use WIFI extender (increases the range of the Wi-Fi signal and converts the frequency from 5Ghz to 2.4GHz) 2)If your router operates at...
  • Page 8 The camera moves on Motion Track function is its own enabled (can be disabled in camera settings) Video archive not 1) Wi-Fi signal is weak loading (or loading 2) Low internet speed (in slowly) your router or smartphone) There is an We use a special file incomprehensible file encrypted to prevent...

  • Page 9: Features And Device Overview

    “alarm” videos in the “cloud” archive. The Morvelli FHD22 camera has very high level of information protection against unauthorized access (AES encryption type - 128). You can be sure that your personal information is protected and confidential.
  • Page 10 Viewing video from the camera is possible anywhere in the world. Connecting to the camera is possible from any mobile device (smartphone, tablet) using application “Smart Life”. The camera must be connected to the Internet via a Wi-Fi network (2.4 GHz router) or via an Ethernet cable, and the smartphone must have Internet access.

  • Page 11: Camera Elements Description

    4.2. Camera Elements Description 1. Image Sensor 2. Infrared LEDs 3. Lens 4. Speaker 5. Microphone 6. Ethernet Port 7. MicroSD Port 8. Reset Button 9. Power Connector...

  • Page 12: Camera Sounds Description

    4. Short melody * - loss of Wi-Fi signal or lack of Internet. 5. Single short beep - Reset of the camera settings (by holding the Reset button for 5-10 seconds) * - Note: You can find all audio examples on our website morvelli.com or use direct link of QR code.

  • Page 13: Connection & Installation

    5.1.Connection & Installation (iOS) For a successful connection you need: 1. iPhone or iPad 2. Wi-Fi Camera Morvelli FHD22 3. Wi-Fi router with the internet that works at 2.4 GHz Recommendations before installation. Before connecting, please make sure of the following: 1.
  • Page 14 Step 1: Smart Life Application & Account Registration 1. Connect iPhone to your Wi-Fi network (with the Internet). 2. Download and install the Smart Life app in the App Store.
  • Page 15 3. Go to the Smart Life app and register a new account. 4. A verification code will be sent to your e-mail (which you indicated in the previous step). To confirm the registration, enter the code in the registration field.
  • Page 16 5. Finish registering. Enter the account name, number of rooms and other information as desired. Step 2: Turning on and preparing the camera 1. Connect power to the camera. Wait for the camera to load (approximately 1 minute). 2. There is a «Reset» button at the back of the camera. Hold this button for about 5-10 seconds.
  • Page 17 Step 3: Connecting the camera to your Smart Life account. 1.Go to the Smart Life app. Click «Add Device». 2. First select the «Video Surveillance» category. Then select «Smart Camera» from the list. 3. A page with resetting the camera will open. We have completed this point in the previous step.
  • Page 18 «Confirm». 5. The full screen of your iPhone will display a QR code. You need to scan this QR code with the Morvelli FHD22 camera. Place your iPhone opposite the camera lens at a distance of 3-7 inches.
  • Page 19 7. Click «I heard a Prompt». The camera will start to connect, and when the process reaches 100%, the connected camera will be displayed on the screen. Done! Your camera is connected to your Smart Life account!

  • Page 20: Connection & Installation (Android)

    5.2.Connection & Installation (Android) For a successful connection you need: 1. Android devices (smartphones, tablets) 2. Wi-Fi Camera Morvelli FHD22 3. Wi-Fi router with the internet that works at 2.4 GHz Recommendations before installation. Before connecting, please make sure of the following: 1.
  • Page 21 *-On Android smartphones in the list of available Wi-Fi networks, you can see at what frequency your router works. Routers with 5 GHz are displayed additionally (an example is shown in the screenshot) The Morvelli FHD22 camera does not support networks with a frequency of 5 GHz.
  • Page 22 **-In the Network detail, you can view the security type of your Wi-Fi network. These may be such options: A) No security (not supported by camera) B) WEP (not supported by camera) C) WPA / WPA2 (recommended) 2. Download and install the Smart Life app in the Play Store.
  • Page 23 3. Go to the Smart Life app and register a new account. 4. A verification code will be sent to your e-mail (which you indicated in the previous step). To confirm the registration, enter the code in the registration field.
  • Page 24 5. Finish registering. Enter the account name, number of rooms and other information as desired. Step 2: Turning on and preparing the camera 1. Connect power to the camera. Wait for the camera to load (approximately 1 minute). 2. There is a «Reset» button at the back of the camera. Hold this button for about 5-10 seconds.
  • Page 25 Step 3: Connecting the camera to your Smart Life account. 1.Go to the Smart Life app. Click «Add Device». 2. First select the «Video Surveillance» category. Then select «Smart Camera» from the list. 3. A page with resetting the camera will open. We have completed this point in the previous step.
  • Page 26 «Confirm». 5. The full screen of your iPhone will display a QR code. You need to scan this QR code with the Morvelli FHD22 camera. Place your iPhone opposite the camera lens at a distance of 3-7 inches.
  • Page 27 7. Click «I heard a Prompt». The camera will start to connect, and when the process reaches 100%, the connected camera will be displayed on the screen. Done! Your camera is connected to your Smart Life account!

  • Page 28: Settings And Control Device

    6. Settings and Control Device 6.1. Smart Life Main Menu...
  • Page 29 Name Description Name of your house In this menu, you can customize your home: name, and number of rooms, add new users to your home, set up geolocation to display temperature and other weather parameters. Multiview This menu will appear as soon as you add two or more cameras.
  • Page 30 Smart scripts Here you can set up and sync with Siri smart scripts, for example, via Siri, enable or disable the camera motion sensor via voice commands. Profile Settings Menu for managing your Smart Life account (managing app notifications, changing password, setting a digital key to access the camera, deleting an account, and more).

  • Page 31: Camera Menu

    6.2. Camera Menu...
  • Page 32 Name Description Date and time Displaying the current date and time. Camera settings Camera settings (enable / disable motion sensor, tracking sensor, timers settings, flipping the screen, sound mode settings, video storage settings and much more). Signal strength The signal strength between the camera and Wi-Fi network (router) is recommended to be at least 50%.
  • Page 33 Cloud Storage Setting up and watching videos from cloud storage (subscription required). Direction Rotation and tilt the camera. Alarm On / Off motion sensor and tracking sensor, timers settings. Photo Album Archive of videos and photos that you previously took on your smartphone (stored in the memory of your smartphone)

  • Page 34: Camera Settings

    6.3 Camera Settings Name Description Device Information Information about camera (Owner, IP Address, Time Zone, Signal Strength). Tap-to-Run Automation Here you can set up and sync with Siri smart scripts, for example, via Siri, enable or disable the camera motion sensor using voice commands.
  • Page 35 FAQ Feedback Frequently asked questions and communication with the developers of the Smart Life app (not Morvelli!). Share Device Setting up and managing access for new users to your camera (For details, see paragraph 8 of the instructions).

  • Page 36: Storage Options

    For playing these videos on your PC, please contact our technical support support@morvelli.com and after confirming your identity, we will send you video player for your PC. 2. Video recording to the cloud storage...
  • Page 37 3. Recording video to the memory of your mobile device or PC. You can directly record video to the memory of your mobile device or PC in online mode or when you are watching a video archive. Y����������������������� website Morvelli.com...

  • Page 38: Maintained Memory Cards

    SD cards, SD cards, and micro SD cards. 1. mini SD 2. SD 3. micro SD Memory card The camera supports сapacity memory card capacity from 16GB to 128GB The Morvelli FHD 22 camera supports micro SD cards.
  • Page 39 0.43 The camera supports The camera supports memory memory card capacity card class from class 4 to U3 from 16GB to 128 GB Supported Options: Supported Options: class 4 microSD 16Gb class 6 microSD 32Gb class 10 microSD 64Gb class 10 (U1) microSD 128Gb class 10 (U3) You can find this information on the memory card...

  • Page 40: Microsd Slot

    7.3. microSD slot The memory card slot is located at the back of the camera. Memory card slot Before inserting or removing a memory card, turn off the camera. Before using a memory card, it is advisable to format it on a PC in a FAT. FAT32 or exFAT system.

  • Page 41: Access To The Camera For Other Users

    8. Access to the Camera for other users How to add another user to access the camera: 1. Register a second Smart Life account 2. In the first account (to which the camera is attached) go to your home profile settings and add a new user: Main menu ->...
  • Page 43 3.In the first account (to which the camera is attached) go to your camera settings and add a new user: Main Menu -> Tap on your camera name -> Settings-> Share Device-> Add Sharing->Enter the name and e-mail of the second account. Done! Now the second user (account) has access to your camera!

  • Page 44: Application For Windows And Mac

    9. Application for Windows and Mac After the camera is connected to your Smart Life account, you can manage and view information from the camera on your PC (Windows or Mac) To do this, follow 4 easy steps: Download the Android emulator for Windows or Mac For example, we use Bluestacks program.
  • Page 45 You can find more detailed Blue stacks setup instructions on our website Morvelli.com...

  • Page 46: Accessing The Camera Using An Internet Browser

    10. Accessing the camera using an Internet Browser If you want to access the camera from any Internet browser (Chrome, Safari, Mozzila, Internet Explorer, Opera etc) you need to follow 3 simple steps STEP 1 Enter the link to the site in the address bar of your browser: https://ipc-eu.ismartlife.me STEP 2 Go to the Smart Life App...

  • Page 47: Package Including

    11. Package including 11. Package including ecurity amera FHD22 orvelli anUal 6,6 FT USB CABLE ADAPTER SCREW KIT CEILING MOUNT WALL MOUNT...
  • Page 48 Website: Morvelli.com Support: support@morvelli.com Live Chat on Morvelli.com...
