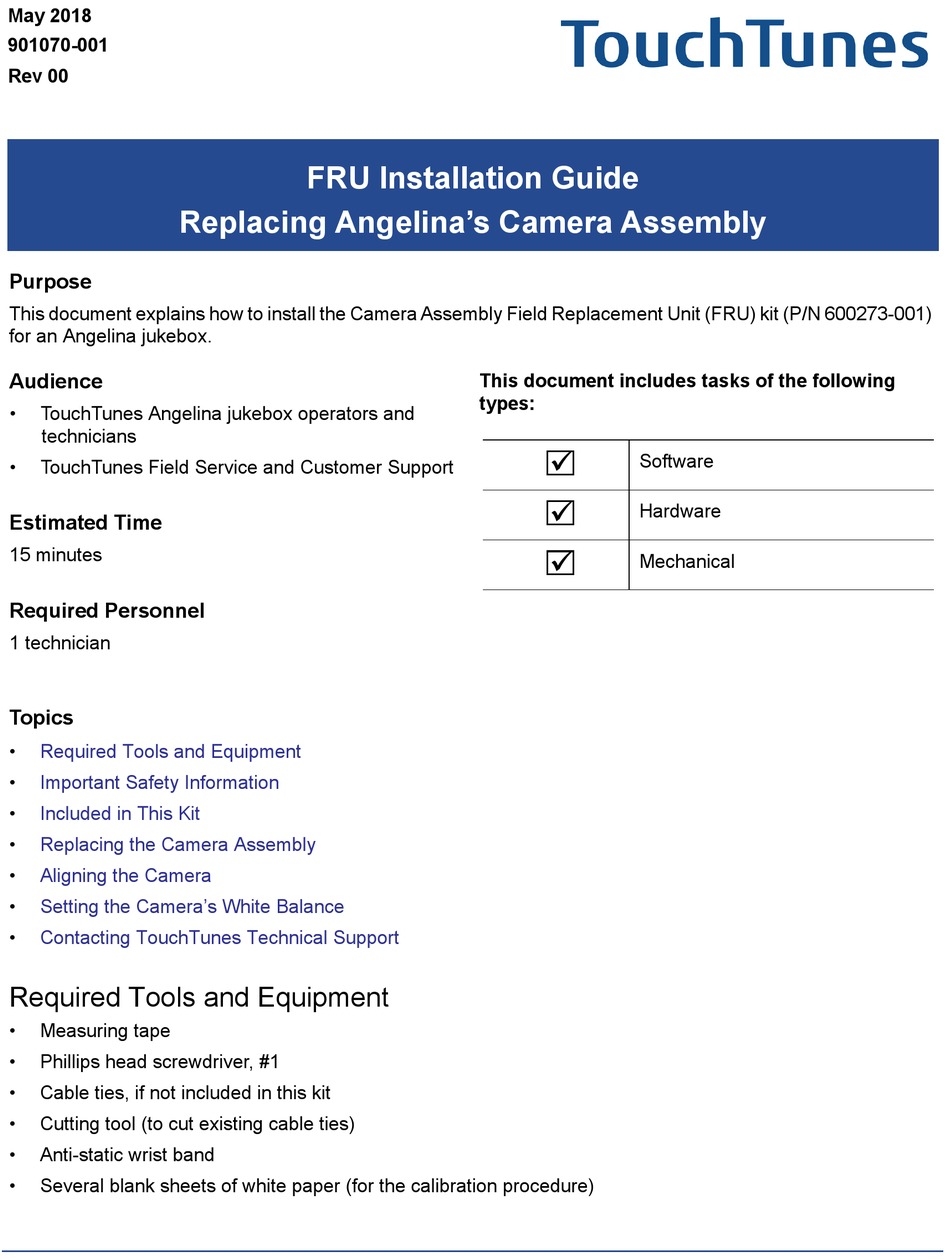

May 2018
901070-001
Rev 00
Replacing Angelina's Camera Assembly
Purpose
This document explains how to install the Camera Assembly Field Replacement Unit (FRU) kit (P/N 600273-001)
for an Angelina jukebox.
Audience
•
TouchTunes Angelina jukebox operators and
technicians
•
TouchTunes Field Service and Customer Support
Estimated Time
15 minutes
Required Personnel
1 technician
Topics
•
Required Tools and Equipment
•
Important Safety Information
•
Included in This Kit
•
Replacing the Camera Assembly
•
Aligning the Camera
•
Setting the Camera's White Balance
•
Contacting TouchTunes Technical Support
Required Tools and Equipment
•
Measuring tape
•
Phillips head screwdriver, #1
•
Cable ties, if not included in this kit
•
Cutting tool (to cut existing cable ties)
•
Anti-static wrist band
•
Several blank sheets of white paper (for the calibration procedure)
FRU Installation Guide
This document includes tasks of the following
types:
Software
Hardware
Mechanical
Advertisement
Related Manuals for TouchTunes FRU
Summary of Contents for TouchTunes FRU
- Page 1 901070-001 Rev 00 FRU Installation Guide Replacing Angelina’s Camera Assembly Purpose This document explains how to install the Camera Assembly Field Replacement Unit (FRU) kit (P/N 600273-001) for an Angelina jukebox. Audience This document includes tasks of the following types: •...
-
Page 2: Important Safety Information
For warranty returns, place the defective unit into the packaging/container from which you removed the replacement unit. Do not disassemble the defective unit. Doing so voids its warranty. You must obtain a valid Return Authorization (RA) number from TouchTunes before shipping a defective unit. Important Safety Information WARNING: When performing this procedure or any other maintenance on your jukebox, the unit must be powered off. - Page 3 Replacing Angelina’s Camera Assembly Replacing the Camera Assembly 4. When you hear the BIOS beep, power down Angelina by setting the rocker switch on the Power Supply Unit (PSU) to the off (O) position. WARNING: Never shut down or unplug Angelina without first performing a reboot and waiting for the BIOS beep.
- Page 4 Replacing Angelina’s Camera Assembly Replacing the Camera Assembly 8. Remove the two screws that fasten the existing camera assembly to Angelina and set them aside. Note that when removing the second screw, you should support the camera assembly to ensure it does not fall (as shown in the following figure).
- Page 5 Replacing Angelina’s Camera Assembly Replacing the Camera Assembly 10. Take the replacement camera assembly (which consists of the camera mounted on a bracket with a USB cable connected) out of its packaging. Replacement camera assembly 11. Remove the lens cap from the camera. 12.
- Page 6 Replacing Angelina’s Camera Assembly Replacing the Camera Assembly 13. Connect the camera’s cable to the USB port on the Angelina computer. USB cable plugged into Angelina computer...
- Page 7 Replacing Angelina’s Camera Assembly Replacing the Camera Assembly 14. Route the cable over and towards the right of the monitor. Cable routing 15. Use the cable ties supplied with the camera kit to fasten the USB cable to the existing bundle of cables. If cable ties are not included in the kit, use self-provided ties.
-
Page 8: Aligning The Camera
Replacing Angelina’s Camera Assembly Aligning the Camera Aligning the Camera Before you proceed with the camera calibration, it is critical that the Angelina jukebox be mounted at the correct height. The top of the Angelina bracket should be 62 inches from the floor. The correct height is necessary to avoid damage to the bracket and to achieve the correct calibration. - Page 9 Replacing Angelina’s Camera Assembly Setting the Camera’s White Balance Setting the Camera’s White Balance Now that you have installed and aligned the camera’s firmware, you must set the camera’s white balance to optimize the coloration of its images. NOTE If the location generally operates under low-lighting conditions, it is essential to replicate these lighting conditions when performing the white balance procedure.
- Page 10 Contacting TouchTunes Technical Support Contacting TouchTunes Technical Support If you need help or have questions about this guide, call the TouchTunes 24/7 Service Hotline at 888-338-5853. To help us assist you more effectively with problem reports, the following information may be required when contacting TouchTunes support: •...
