MODEL : C6000 ADJ 1-6 INSTALLATION INSTRUCTIONS
Regular Arm
Installation
See Page 3
Left Hand Door -LH
Righ Hand Reverse-RHR
Top Jamb
Installation
See Page 4
Left Hand Door-LH
Right Hand Reverse-RHR
Parallel Arm
Installation
See Pages 5 & 6
Left Hand Door-LH
Right Hand Reverse-RHR
Closer shuold NOT be installed on the exposed side (weather side) of exterior doors
Backcheck Valve
Latch Valve
Closer Body
Sweep Valve
All manuals and user guides at all-guides.com
NOTE: For special applications a separate door and
frame preparation template is packed with these
instructions. This instruction sheet should be used
ONLY for installation sequence and closer
adjustments.
Doors should be hung on ball bearing or Anti-
friction hinges.
A separate door stop is recommended.
Door and frame must be properly reinforced.
Always adjust spring power before adjusting
control.
Adjust closing time speed between 3 and 7
seconds from 90 to 0 . Greater closing times may
be required for elderly or handicapped.
Metal
#7
1/4-20
Power Adjustment Shaft
Regular Arm /Top
Jamb Shoe
Main Arm
Closer Arm

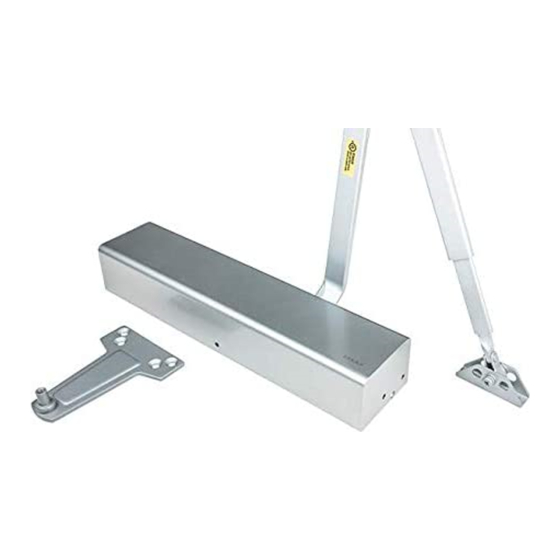

C6000 Series Door Closer
Surface Mounted
Adjustable & Preset "Back Check"
Optional: Delayed Action (DA)
Non Hold-Open / Hold-Open
An incorrectly installed or
improperly adjusted door closer
may cause property damage or
personal injury. These installation
instructions should be followed to
avoid the possibility of
misapplication or misadjusting.
Wood
3/16''
I
nsert cutouts
Cover
Insert
Connecting Rod
Forearm
Screw
Full Cover (Standard)
- 1 -
Regular Arm
Installation
See Page 3
Right Hand Door-RH
Left hand Reverse-LHR
Top Jamb
Installation
See Page 4
Right Hand Door-RH
Left Hand Reverse-LHR
Parallel Arm
Installation
See pages 5 & 6
Right Hand Door-RH
Left Hand Reverse-LHR
(Optional)
Self Drilling Screws
Wood and Metal
Sleeve Nut and Bolt
For wood drill 3/16 hole
Drill 9/32 thru from closer side
3/8 Drill other side
Thru Bolt and Grommet Nut
Machine Screws
Drill 9/32 thru from Closer Side
#7Drill.1/4-20 Tap
3/8 Drill other side
Parallel
Arm Bracket
Screw Pack
