Exact solutions V-Lab300E-LT Manual

Uvc air sanitizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

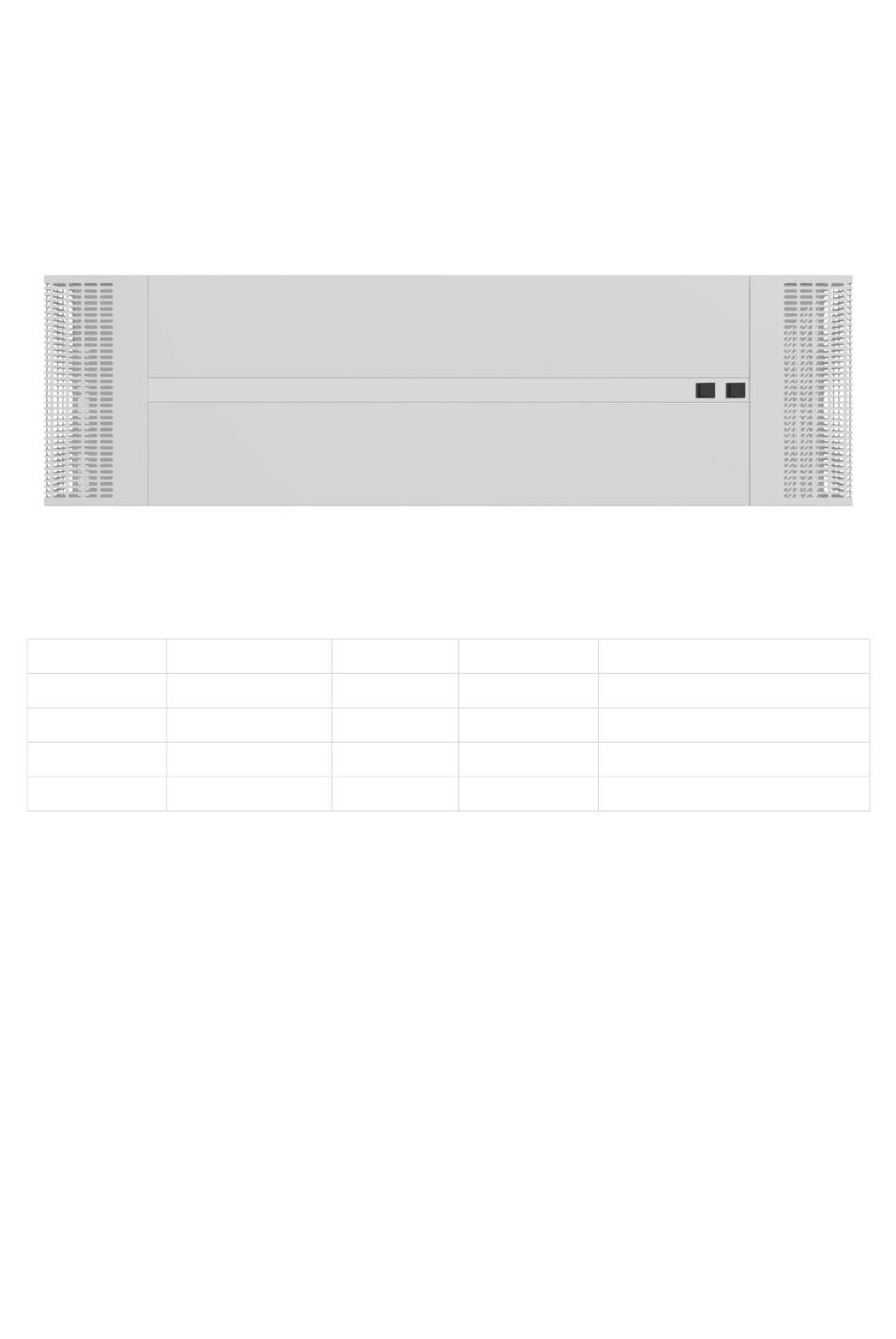

Date
Revision No.
04.11.2020
12.11.2020
30.11.2020
13.04.2021
Contact
Tel.: +49 2204 9485 30
E-Mail: info@exactsolutions.de
Web: www.exactsolutions.de
UVC Air Sanitizer
V-Lab300E-LT
Manual Version 1.2
Author
1.0
DRD
1.1
DRD
1.2
TSN
1.3
TNR
Checked
TSN/TNR
TSN
Changes in Chapter 6 and 8
DRD
GJN
Description
Version 1.0
Version 1.2
Additions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Lab300E-LT and is the answer not in the manual?

Questions and answers

Related Manuals for Exact solutions V-Lab300E-LT

Summary of Contents for Exact solutions V-Lab300E-LT

  • Page 1 UVC Air Sanitizer V-Lab300E-LT Manual Version 1.2 Date Revision No. Author Checked Description 04.11.2020 TSN/TNR Version 1.0 12.11.2020 Changes in Chapter 6 and 8 30.11.2020 Version 1.2 13.04.2021 Additions Contact Tel.: +49 2204 9485 30 E-Mail: info@exactsolutions.de Web: www.exactsolutions.de...

  • Page 2: Table Of Contents

    Manual UVC Air Sanitizer V-Lab300E-LT Table of Content 1. Preamble ..........................3 2. Safety instructions ........................ 4 2.1 Warnings ........................... 4 2.2 Risk Situations ........................7 3. Scope of delivery ........................ 11 4. Spare parts and optional accessories (not included) ............11 4.1 UVC Tubes ........................

  • Page 3: Preamble

    However, improper handling can cause a risk for safety and / or damage. Read these instructions carefully before handling and installing the product so that you can safely enjoy your device. Copyright © 2020 EXACT solutions GmbH. All rights reserved. Page 3 of 34 30.11.2020...

  • Page 4: Safety Instructions

    Manual UVC Air Sanitizer V-Lab300E-LT 2. Safety instructions 2.1 Warnings This manual must be handed over to the persons who install and operate the product. Please read the manual and all instructions carefully. If you ignore the safety instructions in this manual, humans may be seriously injured or there is a possibility of an accident or death.
  • Page 5 Manual UVC Air Sanitizer V-Lab300E-LT Definition of qualified persons: Trained/Qualified person: A person can be considered as trained/qualified when it has been informed about the assigned task and if the possible dangers in the case of improper behaviour and if necessary has been trained.
  • Page 6 Manual UVC Air Sanitizer V-Lab300E-LT  This product uses UVC light encapsulated in a housing. Direct radiation must be avoided at all times. UVC light is dangerous for eyes and skin of human or animals. It can cause serious accidents and burn the skin and cause significant skin irritation.

  • Page 7: Risk Situations

    Manual UVC Air Sanitizer V-Lab300E-LT 2.2 Risk Situations Risk of injury due to the possibility of falling objects during the assembly or disassembly of the Air Sanitizer product.  Protection objective: avoid injury from falling parts.  Wear appropriate safety shoes, gloves and helmet.
  • Page 8 Manual UVC Air Sanitizer V-Lab300E-LT Risk of injuries by UVC light.  Protection objective: Prevent personal injuries by UVC light.  UVC light is harmful for eyes and skin of humans or animals. It can cause serious accidents, burn the human skin and cause significant skin irritation. UVC light can cause serious injuries to the human eye.
  • Page 9 Manual UVC Air Sanitizer V-Lab300E-LT Risk of injury or death by electrical shock.  Protection objective: Prevent personal injuries or death.  If the housing of the device is damaged, deformed etc. there is an increased risk that the inside is also damaged. Persons who touch the housing might get an electrical shock.
  • Page 10 Manual UVC Air Sanitizer V-Lab300E-LT  Please notice that the mass centre is not in the middle of the units. Please observe this while handling. Page 10 of 34 30.11.2020...

  • Page 11: Scope Of Delivery

    Distance washers 4. Spare parts and optional accessories (not included) 4.1 UVC Tubes The UVC tubes used in the product V-Lab300E-LT can be ordered under the following model number: UVC light source, Type UVpro K40-4 4.2 Floor Stand with wheels...

  • Page 12: Uvc Safe Handheld Measurement Device

    Manual UVC Air Sanitizer V-Lab300E-LT 4.4 UVC Safe handheld measurement device Model number: ASZ-UVCSafe UVpro Safe is a measuring instrument to determine a potential UV-C exposure at the workplace. Based on directive 2006/25/EC, the UVpro Safe measures the current predominant and biologically weighted UV radiation intensity and determines the maximum permissible exposure time of the skin and eyes.

  • Page 13: Description Of The Product

    5. Description of the product 5.1 Intended Use The V-Lab300E-LT is used to reduce germs, viruses, bacteria etc. in the ambient air. The device directs air through the housing, which is equipped with tubes that emit UVC light. UVC light can inactivate the DNA or RNA of a life form.

  • Page 14: Setup And Operation

    20cm away for less than 7 hours. The V-Lab300E-LT as well as the light traps must be checked for intactness before installation and regularly during operation in order to detect increased emittance of UVC light. The risk from possible emitting UVC radiation must be checked and documented using an appropriate measuring device (see chapter 4.4 UVC Safe handheld measurement device).

  • Page 15: Positioning And Dimensioning

    150m³/h 10,3 mJ/cm² The V-Lab300E-LT Air Sanitizer has to be installed in such a way that the air outlet points towards the main part of the room. For multiple Air Sanitizers these should be uniformly distributed in the room. Inlets and outlets should always be free of obstacles within a radius of at least 1m to ensure good function.

  • Page 16: Mechanical Setup

    Manual UVC Air Sanitizer V-Lab300E-LT 6.3 Mechanical setup The V-Lab300E-LT is designed to be installed by using the included bracket. WARNING: the bracket must be mounted when the device is turned on, it additionally protects against the UVC light rest radiation that escapes out of the housing.
  • Page 17 (Figure 5) and slide the bracket into the indicated direction. There are four bolts that will slide out of the corresponding notch. Make sure the 4 bolts slide out the notches gently (Figure 6). Figure 5 V-Lab300E-LT with bracket and marked screws notch bolt...
  • Page 18 Manual UVC Air Sanitizer V-Lab300E-LT Mounting holes Overall there are six mounting holes in the mounting bracket. All six must be used to fix the bracket to the wall or ceiling. See Figure 7, red circles. Figure 7 Mounting holes...
  • Page 19 Manual UVC Air Sanitizer V-Lab300E-LT Holes to mount bracket to wall/ceiling Mounting bracket notch bolt Figure 9 Exploded view of V-Lab300-LT and bracket Hang the device on the bracket, make sure the 4 bolts slide into the notches of the mounting...

  • Page 20: Electrical Setup

    WARNING: Always use the wire protection sleeves (Figure 12) when guiding a cable through the housing to avoid damaging the cable. 1. The power cable has to be connected at the backside of the V-Lab300E-LT. Figure 10 Backside of V-Lab300-LT without mounting bracket 2.
  • Page 21 Manual UVC Air Sanitizer V-Lab300E-LT Figure 11 Connection clamps and power cable Wire protection sleeve Green/yellow: Protection Earth (PE) Blue: Neutral conductor Brown: Phase conductor Figure 12 Detail picture of power connection 3. Mount the pull relief (Figure 13) Figure 13 Mounting pull relief 4.

  • Page 22: Operation

    Manual UVC Air Sanitizer V-Lab300E-LT 6.5 Operation The V-Lab300E-LT has two toggle switches at the front side. One to turn it on and off, and one to set the fan speed. I = ON 0 = OFF Fan speed I = approx. 150 m³/h Fan speed II = approx.

  • Page 23: Errors, Causes, Measures

    Manual UVC Air Sanitizer V-Lab300E-LT 6.7 Errors, causes, measures In the event of a fault in one of the two built-in UVC tubes, the electronic ballast switches off both connected tubes. In the following you will find possible errors, their causes and measures. Contact us or your vendor if malfunctions or errors occur.
  • Page 24 Manual UVC Air Sanitizer V-Lab300E-LT Error Cause Measure Immediately after The device has a ground fault and is no Water might have gotten switching on the device, longer ready for operation. into the device. the RCD switch (residual The power supply must be current device) is triggered.
  • Page 25 Manual UVC Air Sanitizer V-Lab300E-LT The tubes have not yet The device must be checked been in operation for and repaired by the 12,000 hours. manufacturer. When do the UVpro tubes Dirt (such as dust, grease or soot) The right time depends on the have to be cleaned? significantly reduces the UVC output.

  • Page 26: Maintenance

    Manual UVC Air Sanitizer V-Lab300E-LT 7. Maintenance WARNING: Do not exchange broken or malfunctioning parts with ones that are not accredited by the manufacturer because serious injuries and property damage can occur. WARNING: The maintenance must be done by qualified persons.

  • Page 27: Removing Old Tubes

    Open the backside by removing the 18 pcs of M4x12 lens head screws around the housing at the backside (Figure 16) Figure 16 Open backside of V-Lab300E-LT and detail of unscrewing backside After removing the cover, you will see the lamp sockets and holding clamps. (See Figure 17...
  • Page 28 Manual UVC Air Sanitizer V-Lab300E-LT Figure 17 Detail picture of lamp socket and holding clamp Figure 18 Reference image showing holding clamp at ceramic end of UVC tube 5. Carefully cut the cable tie at the holding clamp Figure 19 Cutting the cable tie 6.

  • Page 29: Installing New Tubes

    Manual UVC Air Sanitizer V-Lab300E-LT Figure 20 Detail coupling nut and unscrewing coupling nut Move the tube gently out of the V-Lab300E-LT reaction chamber. The tube will easily slide out of the holding clamp. Remove the coupling ring and the rubber seal from the old tube. (Figure 21)
  • Page 30 WARNING: Never switch on the V-Lab300E-LT without an installed cover and mounting bracket! UVC light will be exposed. Humans and animals may be seriously injured. Connect the V-Lab300E-LT to the mains power and switch it on. The ventilation will start immediately. Page 30 of 34...

  • Page 31: Disposal Of Components

    Manual UVC Air Sanitizer V-Lab300E-LT 8. Disposal of components 8.1 UVC tube Like fluorescent lamps, UVC tubes should be disposed of as hazardous waste, as they contain mercury. There are also free collection points in your area where you can dispose of your replaced or defective tubes.

  • Page 32: Mechanical Drawing

    Manual UVC Air Sanitizer V-Lab300E-LT 9. Mechanical Drawing Page 32 of 34 30.11.2020...

  • Page 33: Declaration Of Conformity

    Manual UVC Air Sanitizer V-Lab300E-LT 10. Declaration of conformity Page 33 of 34 30.11.2020...
  • Page 34 Manual UVC Air Sanitizer V-Lab300E-LT Imprint EXACT solutions GmbH Lustheide 85 51427 Bergisch Gladbach GERMANY Tel.: +49 2204 9485 30 E-Mail: info@exactsolutions.de Web: www.exactsolutions.de Page 34 of 34 30.11.2020...
