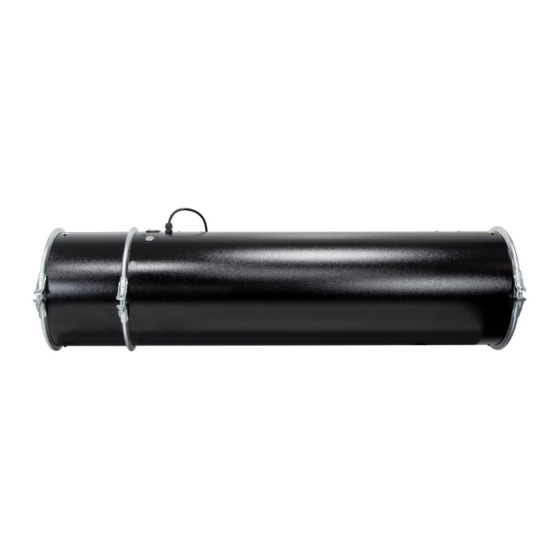

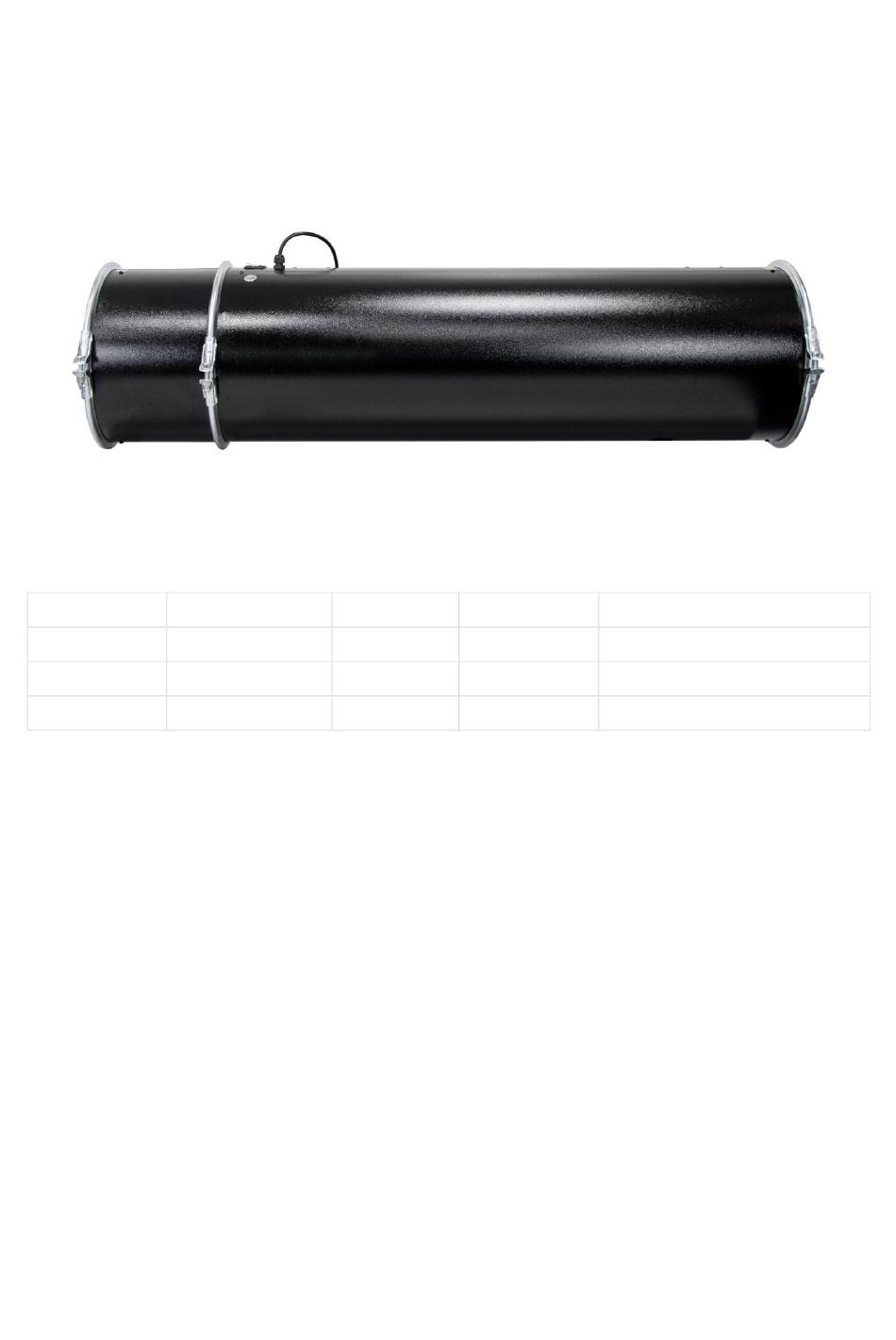

Manual UVC Air Sanitizer V1000E 2. Safety instructions 2.1 Warnings This manual must be handed over to the persons who install and operate the product. Please read the manual and all instruction carefully. If you ignore the safety instructions in this manual, humans may be seriously injured or there is a possibility of an accident or death.
Page 5
Manual UVC Air Sanitizer V1000E • This product uses UVC light encapsulated in a housing. Direct radiation must be avoided at all times. UVC light is dangerous for eyes and skin of human or animals. It can cause serious accidents and burn the skin and cause significant skin irritation.
Only use correct mounting material such as screws, screw anchor etc depending on the given circumstances. The fingers or the hand of the user can be caught between clamping ring of V1000E and the housing during maintenance or service work •...
Page 7
Manual UVC Air Sanitizer V1000E Risk of injuries by UVC light. • Protection objective: Prevent personal injuries by UVC light • UVC light is harmful for eyes and skin of humans or animals. It can cause serious accidents, burn the human skin and cause significant skin irritation. UVC light can cause serious injuries to the human eye.
Page 8
Manual UVC Air Sanitizer V1000E Risk of injury or death by electrical shock. • Protection objective: Prevent personal injuries or death • If the housing of the device is damaged, deformed etc. there is an increased risk that the inside is also damaged. Persons who touch the housing might get an electrical shock.
V1000E 4. Spare parts and optional accessories (not included) 4.1 UVC Tubes The UVC tubes used in the product V1000E can be ordered under the following model number: UVC light source, Type UVpro K40-4 4.2 UVC Safe handheld measurement device...
DNA or RNA of a life form. This works very efficiently with simple life forms like viruses and bacteria. The V1000E is designed for use in public areas and may only be operated within the specifications given in the operating instructions. The efficiency of the germ reduction depends largely on the installation and positioning.
Attention: People who are permanently in the proximity of the device should keep a distance of 0.5m to the device. The V1000E as well as the light traps must be checked for intactness before installation and regularly during operation in order to detect increased emittance of UVC light. The risk from possible emitting UVC radiation must be checked and documented using an appropriate measuring device (see chapter 4.2 UVC Safe handheld measurement device).
500m³/h 12,5 mJ/cm² The V1000E air sanitizer has to be installed in such a way that the air outlet points towards the main part of the room. For multiple air sanitizer these should be uniformly distributed in the room. Inlets and outlets should always be free of obstacles within a radius of at least 1m to ensure good function.
Manual UVC Air Sanitizer V1000E 6.3 Mechanical setup The V1000E is designed to be installed by using the built-in M8 threads (max. depth of thread 18mm). There are two of those M8 threads on the upper and on the lower side of the device.
Page 14
Manual UVC Air Sanitizer V1000E Figure 5 Don't use threads of tension ring WARNING: Do not use the threads of the tension ring to hang or secure the V1000E. Please consult local laws and regulations regarding hanging and mounting of devices.
Manual UVC Air Sanitizer V1000E 6.4 Electrical setup WARNING: Electrical work shall only be done by a fully qualified and trained electrician. Follow the local laws and regulations. WARNING: Make sure the power cable is disconnected from mains power while connecting it to the device...
Note: If a lamp error is detected, the V1000E will indicate this by the fact that the button light will always be in red colour. Note: If a fan error is detected, the V1000E will also show red light on the power button and switch off automatically after approx. 60seconds. Please contact your vendor.
Page 17
Manual UVC Air Sanitizer V1000E Indicator light Function Device off continuously green Device on, 100% fan speed, system ok blinking green Device on, 75% fan speed, system ok blinking slowly green Device on, 50% fan speed, system ok constant red (max. 20sec.) Device 100% fan speed, fan speed is measured, system ok blinking red (max.
Manual UVC Air Sanitizer V1000E 6.5.2 Operating via network The communication is set up via TCP/IP connection. Each device has a static IP address. The default IP Address is: 192.168.000.010 Communication port is HTTP port 80. The command and the reply from the device are formatted as JSON object.
Page 19
Manual UVC Air Sanitizer V1000E A direct communication via Webbrowser can be setup with the following syntax: [IP Address]/command/param Example A: 192.168.000.010/setFanSpeed/50 Reply: "fanspeedPct": 50 Example B: 192.168.000.010/state Reply: "power": 1, "stateTubes": 1, "stateFans": 1, "fanspeedPct": 50, "tubesHours": 1.50, "alarmTubes": 0, "alarmFans": 0,...
Manual UVC Air Sanitizer V1000E 6.6 Periodic maintenance work After professional setup and positioning, no further work is initially necessary. Check the correct function of the UVC tubes by checking the air inlet or air outlet to see if blue light can be seen. In addition to UVC light, the UVC tubes also emit light in the visible, blue range.
Page 21
Manual UVC Air Sanitizer V1000E 7.3 Replacing UVC tubes). Only clean the device with a soft cloth. Clean the light traps with a vacuum cleaner or with a soft cloth. Do not rinse or immerse in water. 13.11.2020 Page 21 of 33...
Manual UVC Air Sanitizer V1000E 6.7 Errors, causes, measures One electronic ballast drives two UVC tubes. In the event of a fault in one of the six built-in UVC tubes, the electronic ballast which is connected to the faulty tube, switches off both connected tubes.
Page 23
Manual UVC Air Sanitizer V1000E The tube is new. If it is a new tube, it is a manufacturing exchange this tube for defect. you, free of charge. The tube service life has been exceeded; the tube must be With older tubes (> 12,000 operating The tube is older than replaced.
Manual UVC Air Sanitizer V1000E 7. Maintenance WARNING: Do not exchange broken or malfunctioning parts with ones that are not accredited by the manufacturer because serious injuries and property damage can occur. WARNING: The maintenance must be done by qualified persons.
Manual UVC Air Sanitizer V1000E 7.2 Cleaning / replacing the metal mesh filter Warning: Make sure the device is turned off and disconnected from mains power! Please see Figure 9 to understand the following steps: 1. Remove clamping ring and cover ring.
Page 26
Manual UVC Air Sanitizer V1000E WARNING: The clamping rings are each fixed with two M8 screws which tighten the ring when turned clockwise. Make sure the ring is tight enough around the cover ring and around the raised edge of the pipe so that the parts are connected securely.
Manual UVC Air Sanitizer V1000E 7.3 Replacing UVC tubes WARNING: Do not exchange broken or malfunctioning parts with ones that are not accredited by the manufacturer because serious injuries and property damage can occur. WARNING: The maintenance must be done by qualified persons.
Page 28
Figure 12 Detail lamp socket and unscrewed coupling nut Figure 13 Reference image showing holding clamp at ceramic end of UVC tube 6. Move the tube gently out of the V1000E reaction chamber. The tube will easily slide out of the holding clamp.
Manual UVC Air Sanitizer V1000E 7.3.2 Installing new Tubes 1. Carefully place the rubber seal over followed by the coupling nut over the new tube. 2. Gently place the tube with its connector to the socket. In the center of the socket is a guidance segment that avoids wrong connection.
UVC light rest radiation that escapes out of the housing. 6. Connect the V1000E to the mains power. The device will start automatically. Wait till the indicator ring on the multifunctional button is slowly blinking green (approx. 20sec.).
