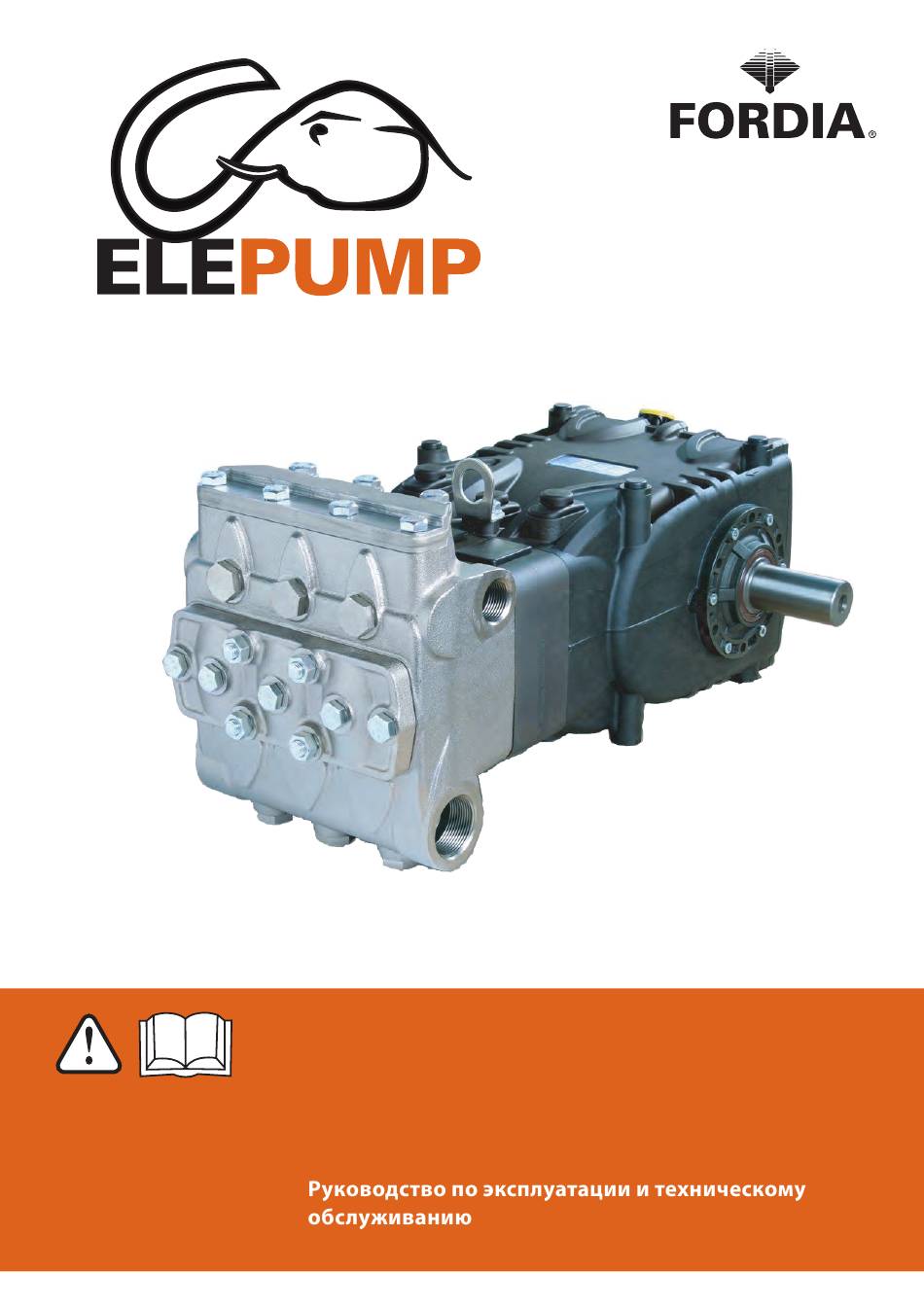

- Page 1 Serie KF-50M Manuale uso e manutenzione Use and Maintenance Manual Manuel d'utilisation et d'entretien Betriebs- und Wartungsanleitung Manual de Uso y mantenimiento Manual de uso e manutenção...
-
Page 2: Table Of Contents
Table of Contents 1 INTRODUCTION ..................................18 2 DESCRIPTION OF SYMBOLS ..............................18 3 SAFETY ....................................18 3.1 General safety warnings .................................. 18 3.2 Essential safety in the high pressure system ..........................18 3.3 Safety during work .................................... 18 3.4 Rules of conduct for the use of lances............................18 3.5 Safety during system maintenance ............................. -
Page 3: Introduction
INTRODUCTION 6. Appropriate protective casing must be provided in pump transmission systems (couplings, pulleys and belts, This manual describes the instructions for use and auxiliary power outlets). maintenance of the KF50M pump and should be carefully read and understood before using the pump. Safety during work Proper pump operation and duration depend on the correct use and maintenance. -
Page 4: Safety During System Maintenance
PUMP IDENTIFICATION 9. The high pressure system must not be started up and run under pressure without all team members in position and Each pump has its own Serial No. XX.XXX.XXX see pos. and without the Operator having already directed his/her lance an identification label, see pos. ... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Manufacturer Lubricant The KF50M pump has been designed and developed Falcon CL220 to operate in environments with atmospheres that are not potentially explosive and with fluids with a high percentage of bentonite, whose recommended maximum value of density is equal to ~ 45 sec. ELF POLYTELIS 220 Marsh cone and at a maximum temperature of 40°C. -
Page 6: Ports And Connections
In any case the oil must be changed at least once a year, as it is degraded by oxidation. For a room temperature other than between 0°C - 30°C, follow the instructions in the following diagram, considering that oil must have a minimum viscosity of 180 cSt. Viscosity / Room Temperature diagram /s = cSt Ambient temp. -
Page 7: Pump Installation
PUMP INSTALLATION Rotation direction The rotation direction is indicated by an arrow located on the Installation casing near the drive shaft. The pump must be fixed horizontally using the M16x1.5 From a position facing the pump head, the rotation direction threaded support feet. -
Page 8: Suction Line
Suction line Outlet line For a smooth operation of the pump, the suction line should For the correct laying of the outlet line, the following have the following characteristics: installation rules must be followed: 1. Minimum internal diameter for pipes of length less than 8 1. -
Page 9: V-Belt Transmission
V-belt transmission The pump can be controlled by a V-belt system. For this pump model, we recommend use of 4 XPB belts (16.5x13 serrated). Use an XPC profile only for long durations. Both the characteristics and transmissible power of each belt can be verified in the diagram in Fig. 7, in relation to the number of rpm normally declared by the manufacturer. - Page 10 Dimensions (in mm) Belt section as per DIN symbol XPB/SPB XPC/SPC DIN 7753 part 1 and B.S. 3790 symbol B.S./ISO Belt section as per DIN symbol DIN 2215 and B.S. 3790 symbol B.S./ISO Pitch width 14.0 19.0 α = 34° 18.9 26.3 Increased grooving width b ≈...
-
Page 11: Definition Of Static Pull To Apply On Belts
9.11 Definition of static pull to apply on belts Note . Unless otherwise stated by the supplier of the belts, control of proper pull and its relative re-tensioning should be Static pull depends on: performed after no less than 30 minutes of motion necessary a) The wheelbase between the two pulleys (belt length). -
Page 12: Preventive Maintenance
PREVENTIVE MAINTENANCE c) Safety devices are decalibrated or disconnected. d) The pump is used with accessories or parts not supplied For pump reliability and efficiency, comply with maintenance by Interpump Group. intervals as shown in the table of Fig. 14. e) Damage has been caused by: Many applications will require changes at the frequency 1) improper use shown in the table due to severe and unusual operating... -
Page 13: Exploded Drawing And Parts List
EXPLODED DRAWING AND PART LIST © 2016-01 Fordia. All rights reserved. - Page 14 Support, LPS KF50M 31-112-028 Seal 30 X 43 X 8.5mm KF50M 31-112-029 Bolt, stud, SS M7 X 32, 71 series KF50M 31-112-030 Cover, piston KF50M 31-112-031 Bolt, M12 X 220 UNI 5737 KF50M 31-112-032 T 1 800 768-7274 FORDIA.COM INFO@FORDIA.COM...
- Page 15 Piston guide KF40/KF50M 31-101-023 Bushing, bronze KF40/KF50M 31-101-082 Pin 20 X 38 KF40/KF50M 31-101-024 Wiper KF40/KF50M 31-101-026 Seal 38 X 52 X 7 KF40/KF50M 31-101-025 Plug G 1/2 X 10 TE27 ZINC KF40/KF50M 31-101-011 PUMP © 2016-01 Fordia. All rights reserved.
-
Page 16: Declaration Of Incorporation
DECLARATION OF INCORPORATION DECLARATION OF INCORPORATION (In accordance with Annex II of European Directive 2006/42/EC) The manufacturer INTERPUMP GROUP S.p.A. - Via E. Fermi, 25 - 42049 - S. ILARIO D'ENZA - Italy DECLARES that the product identified and described as follows: Name: Pump Type:... - Page 17 Los datos contenidos en el presente documento pueden sufrir variaciones sin previo aviso. Os dados contidos no presente documento podem estar sujeitos a alterações, sem aviso prévio. 3 Hôtel-de-Ville, Dollard-des-Ormeaux, QC Canada H9B 3G4 E info@fordia.com P 514-336-9211 TF 1-800-768-7274 fordia.com...
