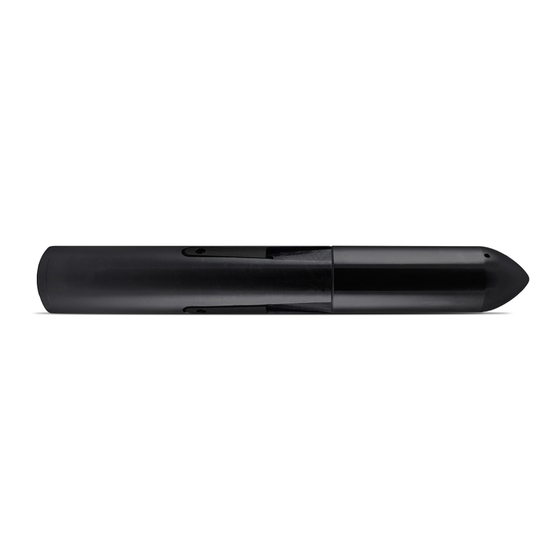

Fordia OWL Instruction Manual

Fishing tool system

Download this manual

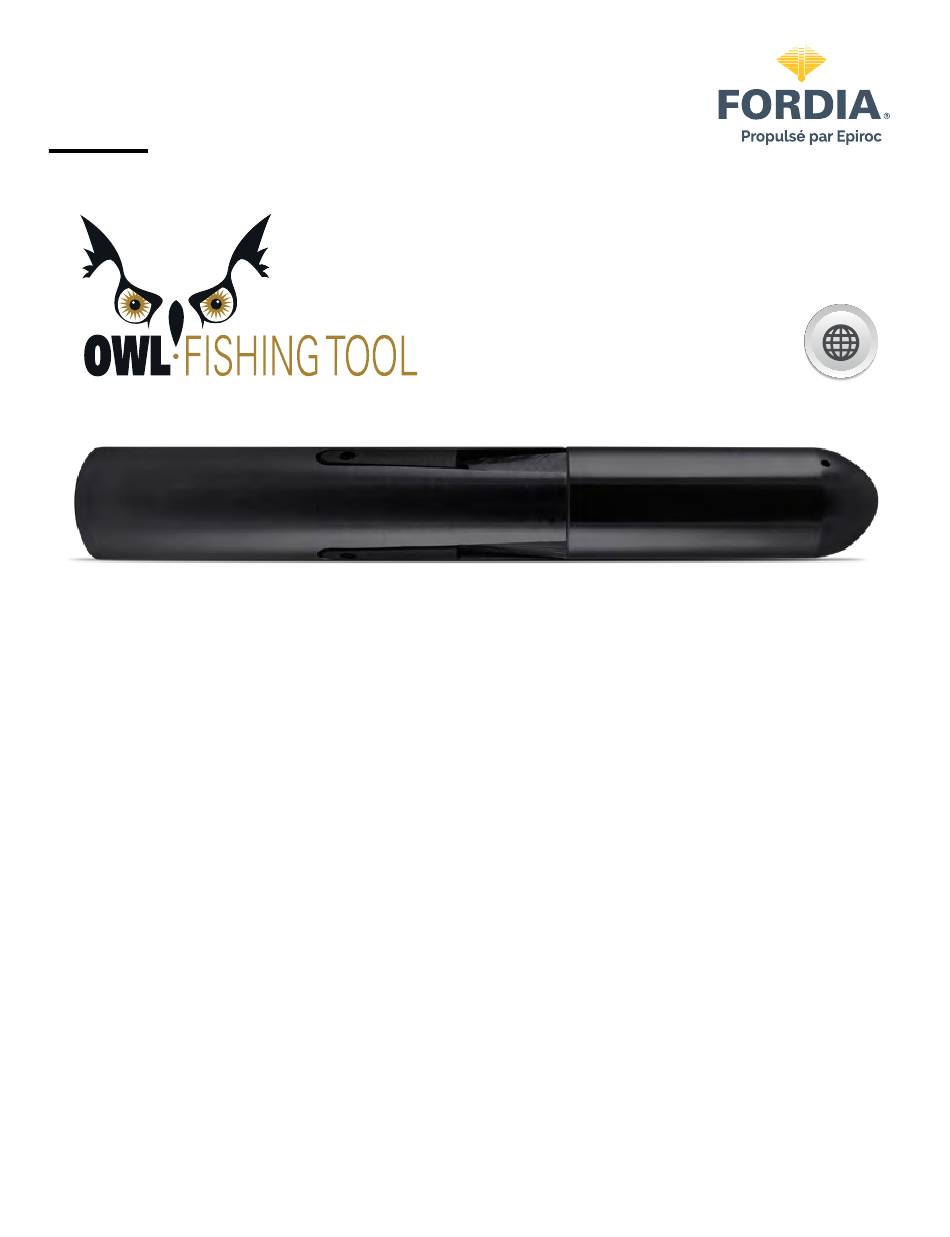

INSTRUCTION

MANUAL

erie

This document provides a detailed description of the steps to follow when using the OWL Fishing Tool System and should

be considered as a reference only.

Parts required for use:

The following parts are required in order to use the OWL Fishing Tool System. For example, in the case of an N-size fishing

tool, the following parts are required:

• OWL Fishing Tool NW

• BW rod (5 ft/1.5 m or more)

REV. Mai 2014

• Coupling BW r/pin to BW r/pin to attach the tool to the BW rod

• Adaptor BW r/pin to your specific threads r/box (ex. NO/NT)

IMPORTANT

Make sure water can run all the way through your assembly as the OWL Fishing Tool is activated by water pressure.

Need help?

Do you have a question about the OWL and is the answer not in the manual?

Page 1 Parts required for use: The following parts are required in order to use the OWL Fishing Tool System. For example, in the case of an N-size fishing tool, the following parts are required: • OWL Fishing Tool NW •...
Page 2 1. Ensure that the location of the top of the fish is known to the inch. 2. Lower the OWL fishing tool to within 12” (30 cm) of the fish. 3. Take note of the rod weight on the gage.
Page 3 5. Remove the rods from the hole using a slow steady retrieval. It is possible to rotate the tool to the right to help release the fish, but there should be no downward movement of the drill string during this operation as this can release the tool. © FORDIA.COM | INFO@FORDIA.COM | T 1-800-768-7274 © 2021-05. All rights reserved.
Page 4: Maintenance
4. Slowly remove the fishing tool from the lost rods, and then trip out at regular pace. MAINTENANCE After each use, the OWL fishing tool should be disassembled, cleaned and inspected for damage or signs of wear, reassembled and lubricated.
Page 5: Appendix: Ctechnical Specifications
6,8 kg 25 lb 11,3 kg Lenght 15 in 38 cm 16 in 41 cm 17 in 43 cm Water pressure 150 psi 150 psi 150 psi to activate © FORDIA.COM | INFO@FORDIA.COM | T 1-800-768-7274 © 2021-05. All rights reserved.
